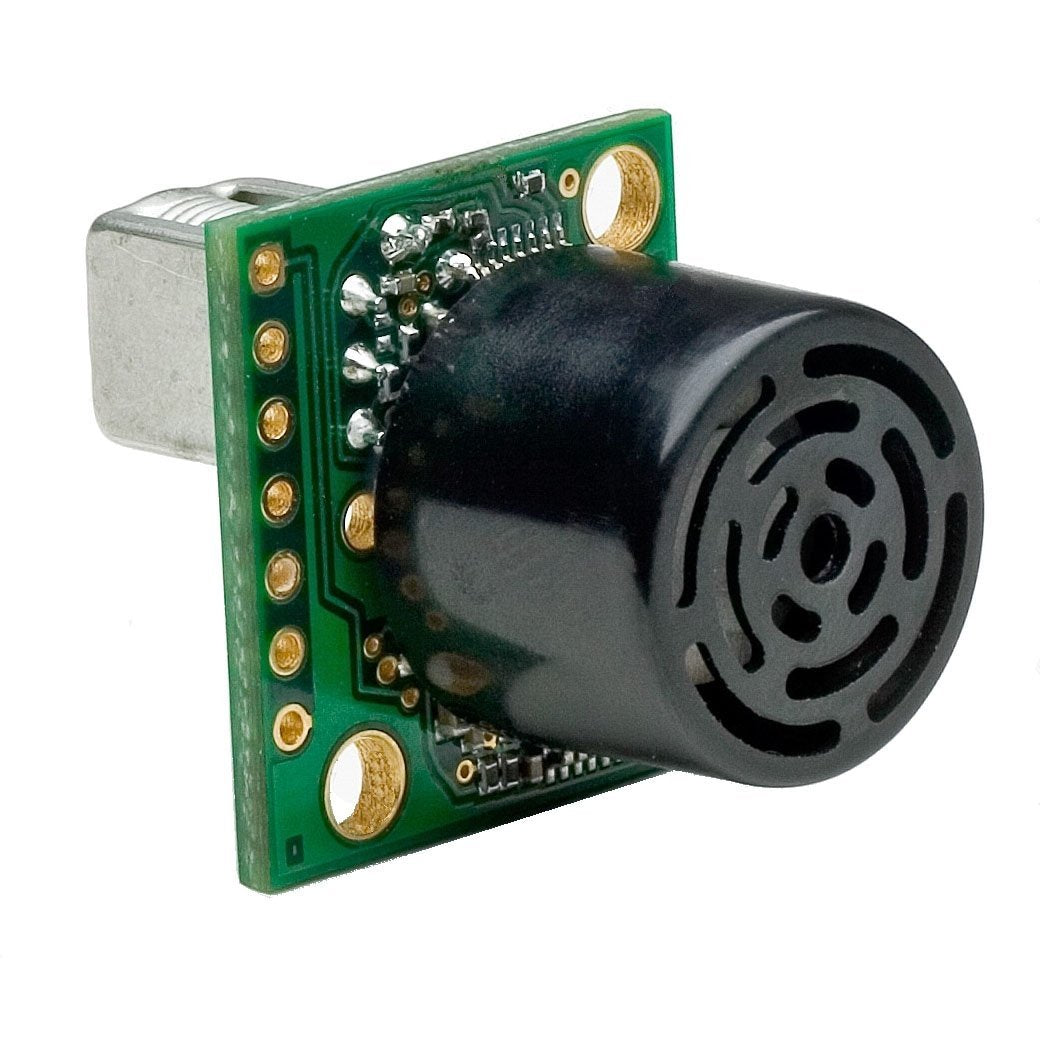

MB1220 XL-MaxSonar-EZ2 MaxBotix Ultrasonic Sensor

  • $49.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • MB1220 XL-MaxSonar-EZ2 MaxBotix Ultrasonic Sensor

    The MB1220 XL‑MaxSonar‑EZ2 is our most recommended indoor sensor. It offers the best balance between wide or narrow beams and provides a good balance between small and large target detection. The XL-MaxSonar-EZ2 works for nearly all indoor applications including: people detection, large-target detection, long-range detection, applications requiring high noise tolerance.

    The sensor is small in size, yet the high output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms results in virtually noise free distance readings for most users. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL‑MaxSonar‑EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long range detection zone.

    Product Specifiations

    • Resolution of 1 cm
    • 10Hz reading rate
    • 42kHz Ultrasonic sensor measures distance to objects
    • RoHS Compliant
    • Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
    • Virtually no dead zone, objects closer than 20 cm range as 20 cm
    • Operates from 3.3-5.5V
    • Low 3.4mA average current requirement
    • Small, light weight module
    • Designed for easy integration into your project or product
    • Operational Temperature from 0˚C to +65˚C (32˚F to +149˚F)
    • Real-time automatic calibration (voltage, humidity, ambient noise)
    • Firmware filtering for better noise tolerance and clutter rejection
    • 200,000+ Hours Mean Time Between Failure
    • Balanced design gives both high sensitivity and noise tolerance
    • Our most recommended sensor from the XL-MaxSonar-EZ sensor line
    • Maximum range of 765 cm (300 inches)
    • Hardware gain of 1000

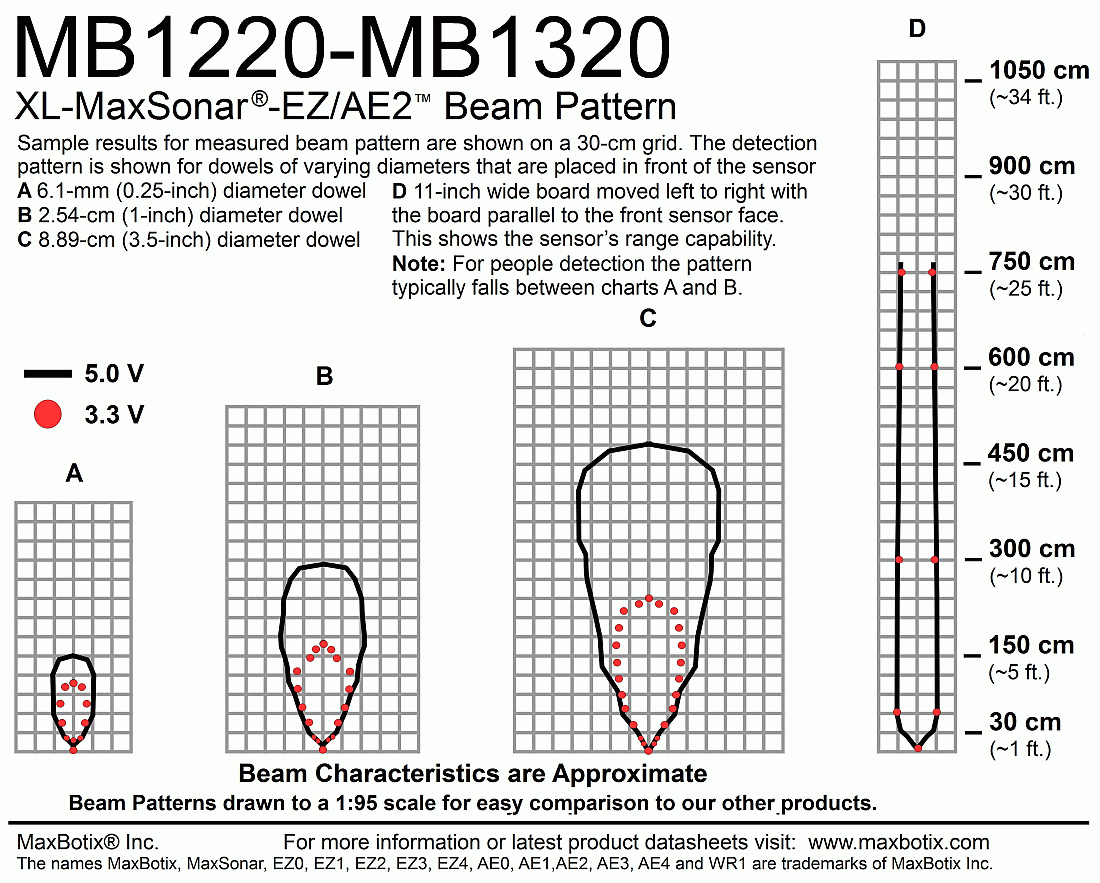

    • Medium range, medium detection zone for small targets

    Documents and Downloads

    XL-MaxSonar-EZ2-datasheet
    Chaining Application Guide
    MaxSonar Quick Start Guide
    Sensor Selection Guide
    RoHS Declaration of Conformity
    CE Declaration of Conformity
    MTBF Report
    High Resolution Pictures.zip
