MB1414 USB-ProxSonar-EZ1 MaxBotix Ultrasonic Sensor
MB1414 USB-ProxSonar-EZ1 MaxBotix Ultrasonic Sensor

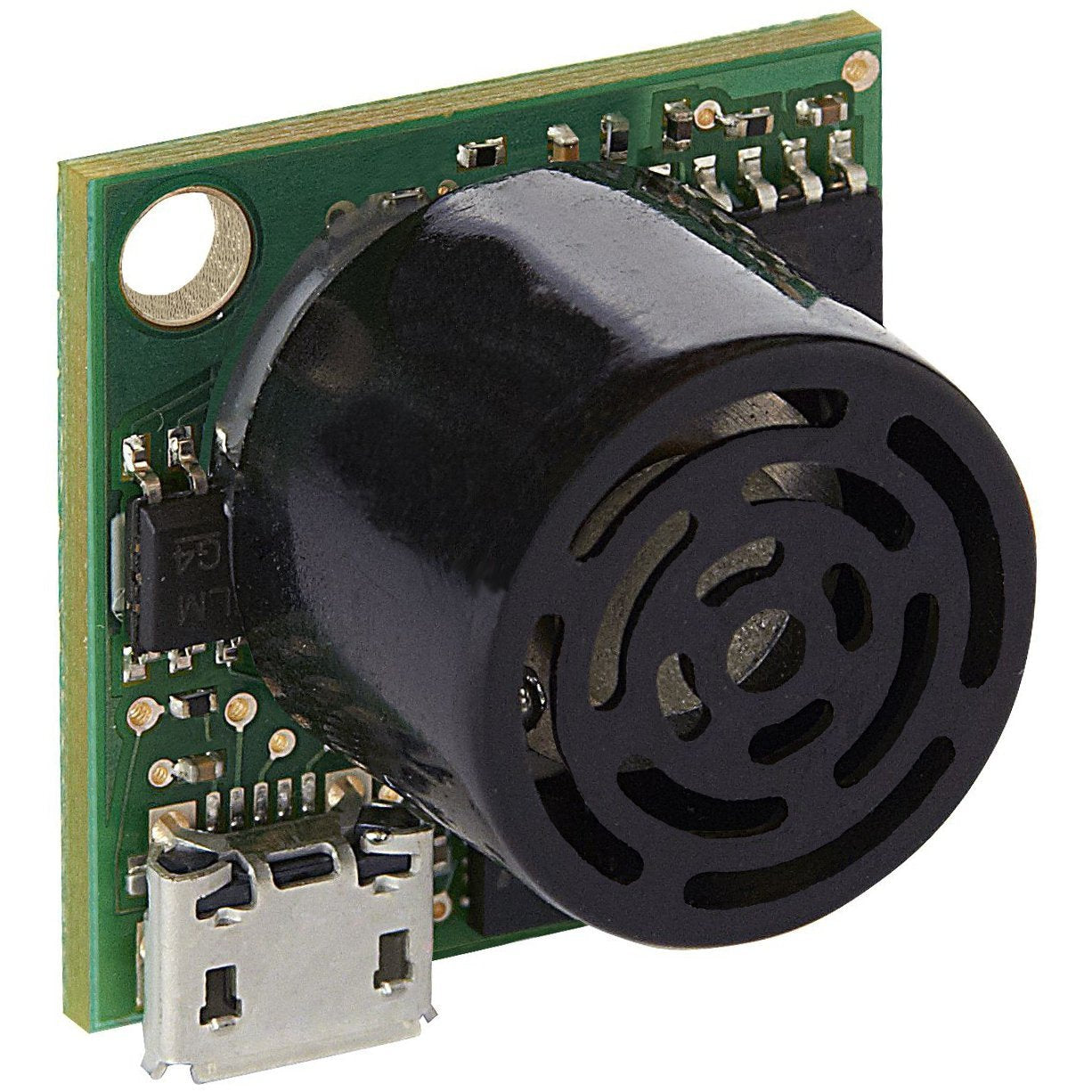

The MB1414 USB‑ProxSonar‑EZ1 has a detection zone of ~5 feet and will allow for 8+ simultaneous sensors.
The USB-ProxSonar-EZ ultrasonic proximity sensors feature an easy to use USB interface that connects directly to a computer with a standard Micro-B USB cable. The USB‑ProxSonar‑EZ sensors detect objects in a calibrated detection zone and report when an object (such as a person) enters the detection zone. The target is released after leaving the USB‑ProxSonar‑EZ detection zone.
Product Specifications
- USB interface
- ~2.5 second target acquire time*
- ~1.5 second target release time*
- Automatic multi-sensor operation
- People sensor
- Resolution of 1 inch
- Maximum Range of 125 inches (318 cm)

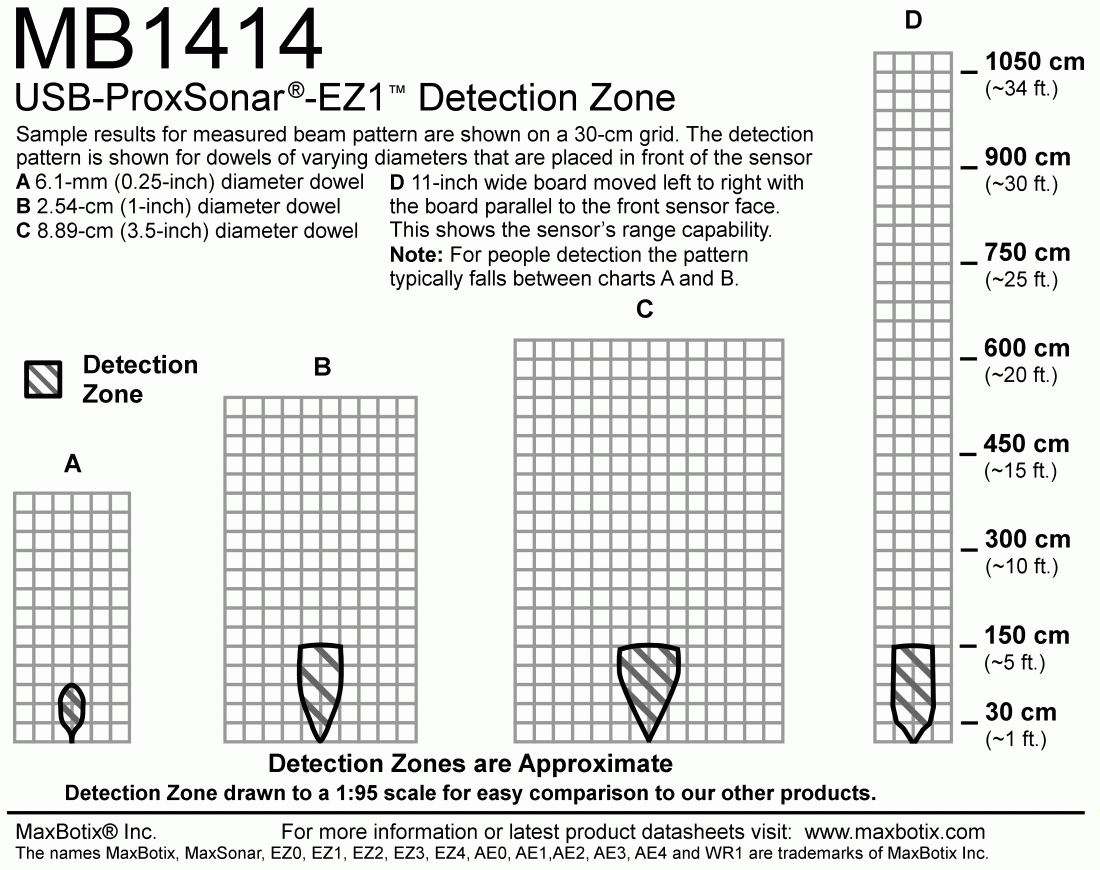

- Detection zone range of 60 inches (152 cm)
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS compliant
- Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
- Small, light weight module
- Designed for easy integration into your project or product
- Longest range detection zone
