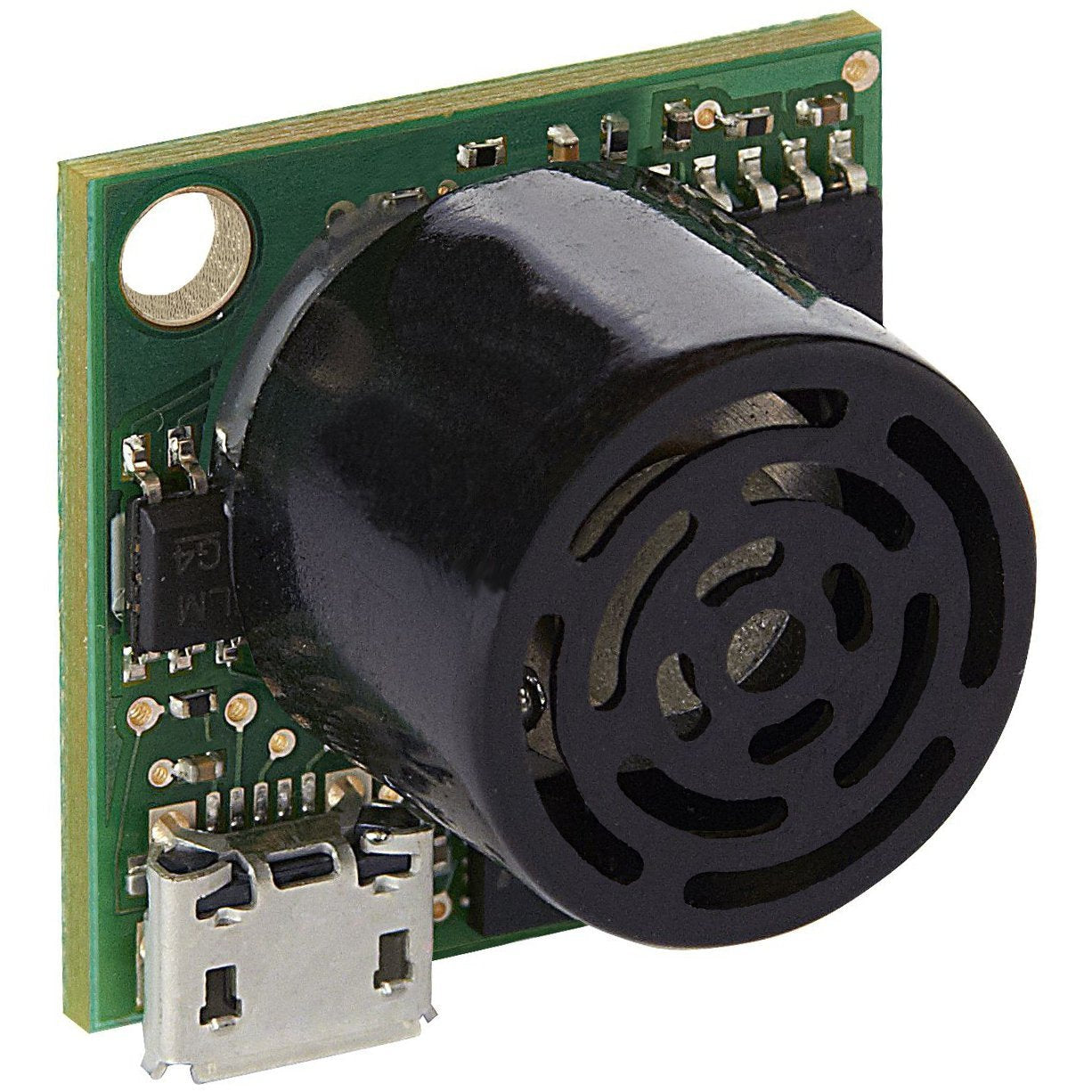

MB1443 HRUSB-MaxSonar-EZ4 MaxBotix Ultrasonic Sensor

  • $60.00
  • Save $25
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • MB1443 HRUSB-MaxSonar-EZ4 MaxBotix Ultrasonic Sensor

    The HRUSB-MaxSonar-EZ4 is the narrowest beam width sensor that is also the least sensitive to side objects offered in the HRUSB‑MaxSonar‑EZ sensor line. The HRUSB-MaxSonar-EZ4 is an excellent choice when only larger objects need to be detected.

    HRUSB-MaxSonar-EZ ultrasonic rangefinders offer a 1mm resolution, an easy to use Micro-B USB connection, temperature compensation, automatic calibration, high accuracy, and stable operation in multi-sensor environments. The output of this sensor line will be sent over USB. Please see datasheet for full specifications.

    Product Specifications

    • USB interface
    • Resolution of 1 mm
    • Multi-sensor operation
    • ~250mS between range readings
    • Maximum Range of 5000 mm (196 inches)
    • 42kHz Ultrasonic sensor measures distance to objects
    • RoHS compliant
    • Virtually no sensor dead zone, objects closer than 30 cm range as 30 cm
    • Small, light weight module
    • Designed for easy integration into your project or product

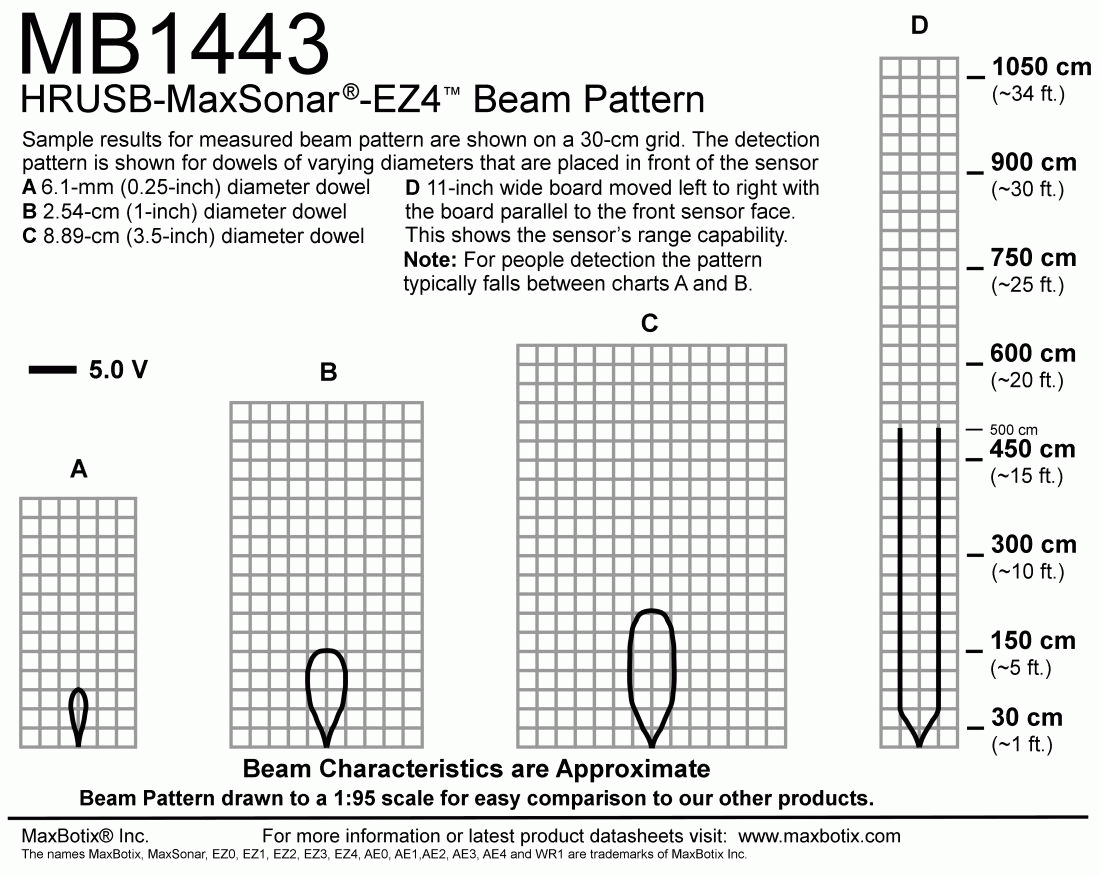

    • Narrowest beam of the HRUSB-MaxSonar-EZ sensors
    • Best for large object detection applications

    Documents and Downloads

    HRUSB-MaxSonar-EZ4-datasheet
    Sensor Selection Guide
    RoHS Declaration of Conformity
    CE Declaration of Conformity
    MTBF Report
    High Resolution Pictures.zip
