MB7137 I2CXL-TrashSonar-WR MaxBotix Ultrasonic Sensor
MB7137 I2CXL-TrashSonar-WR MaxBotix Ultrasonic Sensor
Ranges from 20cm to 350cm with up to 40Hz read rate. I2C interface. Reports range to closest.

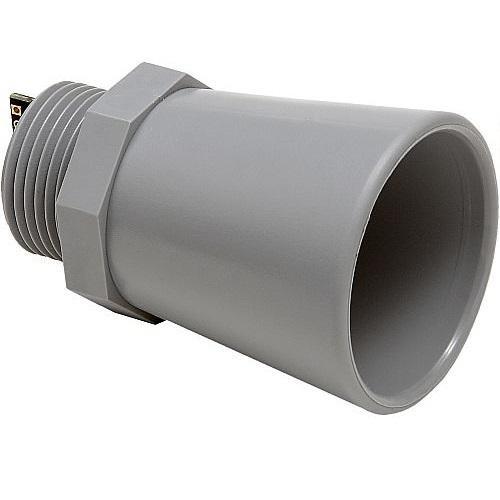

The MB7137 I2CXL-TrashSonar-WR is a weather resistant sensor designed for trash bin measurement.
The MB7137 I2CXL-TrashSonar-WR features the I2C communication interface. This allows for up to 127 sensors to be operated on a single bus for a network of trash bins that are monitored by a single control device for multi‑sensor operation.

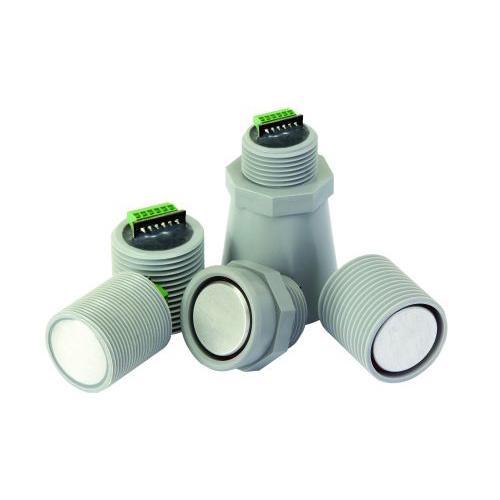

Housing Option Available: (Specify in order note)
- 3/4" NPS WR Housing
- 3/4" NPS WRC Compact Housing
- Ultra Compact Housing
- Ultra Compact Housing Flush Mount
- 1" NPS Housing
- 1" BSPP Housing
- 30MM 1.5 Housing
High output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electric noise sources. The I2CXL‑TrashSonar‑WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable mid-range detection zones.
MB7139 is the standard version of this sensor.
Models with additional chemical resistance are available
The F-Option (IP-68) design modification provides Maxbotix weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP-68) when ordering.
Product Specifications
- Resolution of 1 cm
- Up to 20Hz read rate
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- I2C Interface
- Operates from 3.0-5.5V
- Low 3.4mA average current requirement
- Small, light weight module
- Designed for easy integration into your project or product
- Operational Temperature from -40˚C to +65˚C (-40˚F to +149˚F)
- Real-time automatic calibration (voltage, humidity, ambient noise)
- Firmware filtering for better noise tolerance and clutter rejection
- 200,000+ Hours Mean Time Between Failure
- Weather Resistant (IP67), optional Chemical Resistant F-Option
- Matches standard electrical pipe fittings for easy mounting
- Maximum range of 350 cm (138 inches)
- Fastest reporting TrashSonar
- Compatible with up to a 400KHz I2C Bus Speed

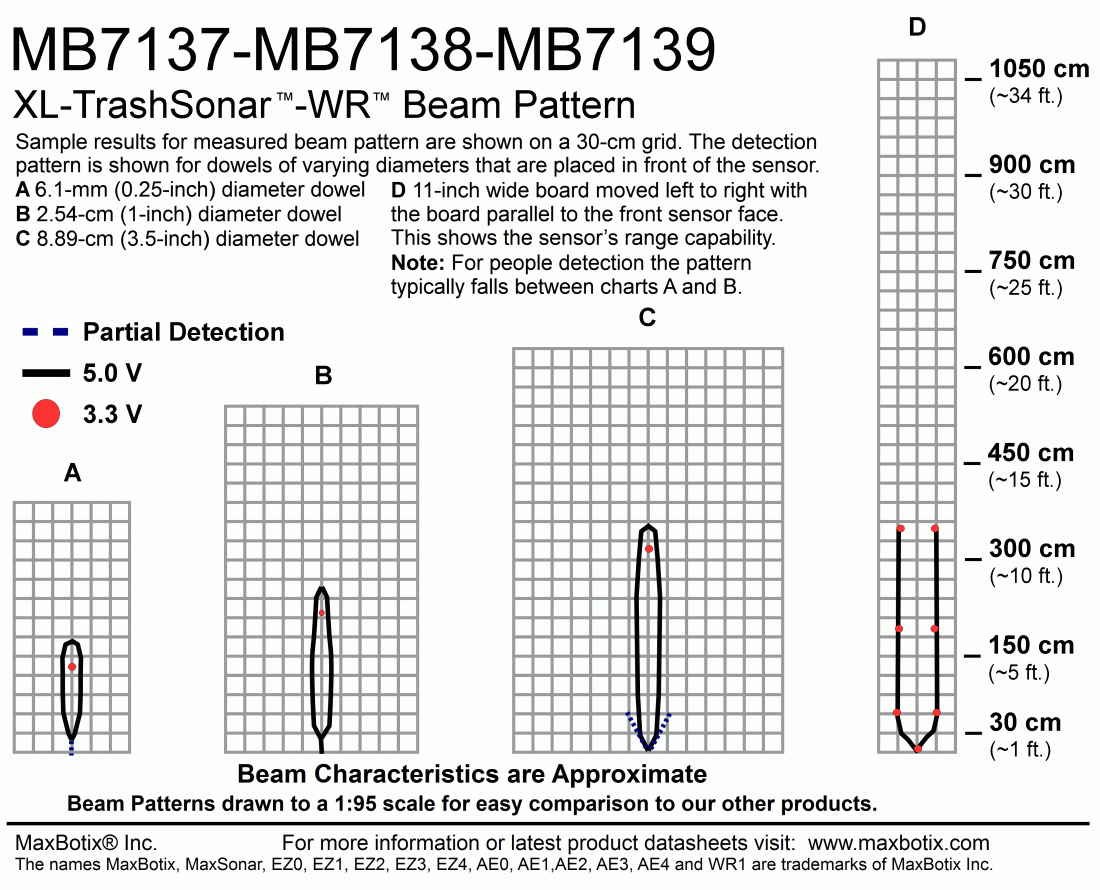

- Mid-range, narrow detection zone
Documents and Downloads
I2CXL-TrashSonar-WR-datasheet |
Sensor Selection Guide |
XL-TrashSonar-WR Chaining |
RoHS Declaration of Conformity |
CE Declaration of Conformity |
MTBF Report |
High Resolution Pictures.zip |
