MB7460 4-20HR-MaxSonar-WR MaxBotix Ultrasonic Sensor

  • $249.00
  • Save $100
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • MB7460 4-20HR-MaxSonar-WR MaxBotix Ultrasonic Sensor

    Ranges from 500mm to 5000mm with 7.5Hz read rate. 4mA minimum range and 20mA maximum range. Reports range to the closest target.

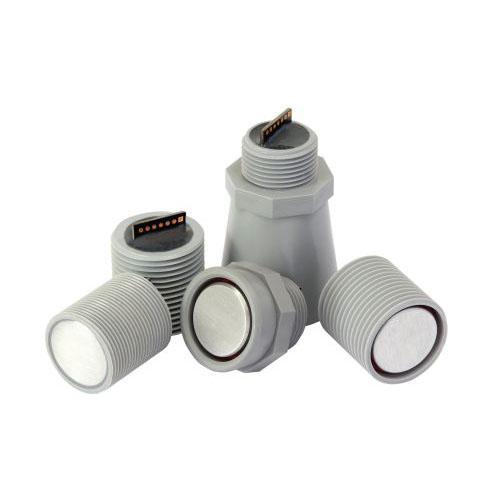

    The MB7460 weather resistant 4-20HR‑MaxSonar‑WR is a rugged, ultrasonic sensor component module that features the industry standard 4-20mA analogue current interface. This outdoor sensor provides very short- to long- distance detection and ranging in a compact, robust PVC housing. This ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

      High-output, acoustic power, combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The 4‑20HR‑MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

      Models with additional chemical resistance are available

      The F-Option (IP-68) design modification provides Maxbotix weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F‑Option (IP-68) when ordering.

      Product Specifications

      • Resolution of ~1.6mm
      • Analog current output of 4-20mA
      • 7.5Hz read rate
      • 42kHz ultrasonic sensor measures distance to objects
      • RoHS compliant
      • CE compliant
      • Internal or external temperature compensation
      • Virtually no sensor dead zone, objects closer than 50cm typically range as 50cm
      • Maximum Range of 5-meters (196 inches)
      • Operates from 10V-32VDC
      • <40mA average current requirement
      • Small, light‑weight module
      • Designed for easy integration into your project or product
      • Operational temperature -40°C to +65°C (-40°F to +149°F)
      • Real-time automatic calibration (voltage, humidity, and ambient noise)
      • Firmware filtering for excellent noise tolerance and clutter rejection
      • Weather resistant (IP67), optional chemical resistant F-Option
      • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

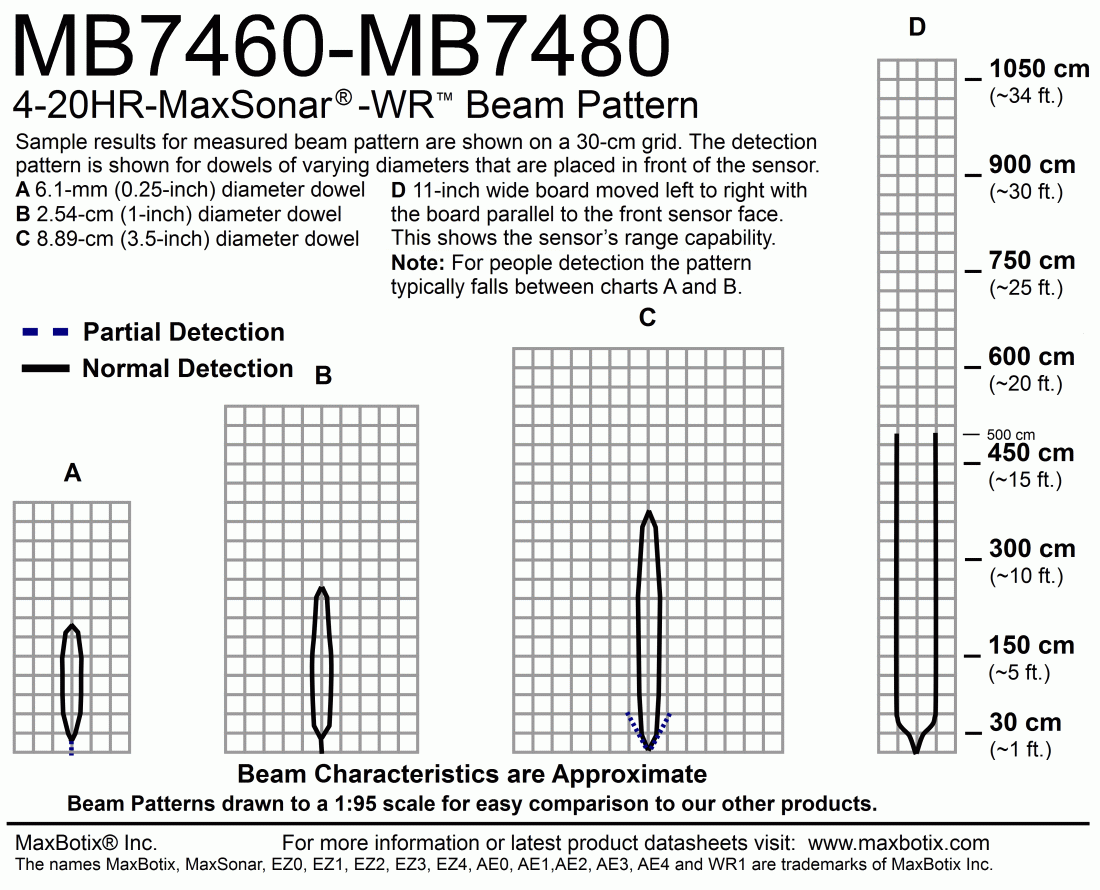

      • Long, narrow detection zone
      • Base sensor that is great for application testing
      • 4mA is the minimum reported range and 20mA is maximum reported range

      Documents and Downloads

      4-20HR-MaxSonar-WR-datasheet
      Sensor Selection Guide
      RoHS Declaration of Conformity
      CE Declaration of Conformity
      MTBF Report
      High Resolution Pictures.zip
