MB7560 SCXL-MaxSonar-WR MaxBotix Ultrasonic Sensor

  • $239.00
  • Save $100
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • MB7560 SCXL-MaxSonar-WR MaxBotix Ultrasonic Sensor

    Ranges from 300mm to 5000mm with a 0.6Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to the closest target.

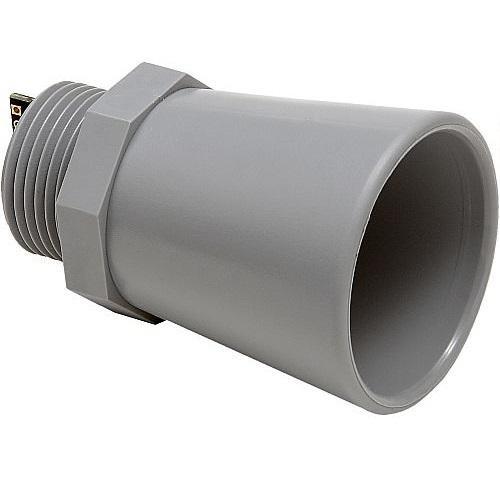

    The MB7560 weather resistant SCXL-MaxSonar-WR self‑cleaning sensor is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

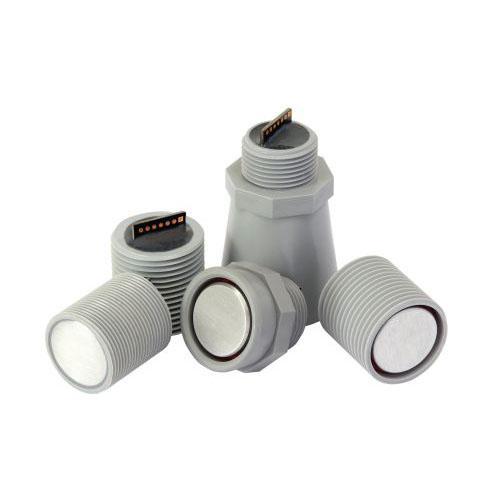

    Housing Option Available: (Specify in order note)

    • 3/4" NPS WR Housing
    • 3/4" NPS WRC Compact Housing
    • 1" NPS Housing
    • 1" BSPP Housing
    • 30MM 1.5 Housing

    The MB7560 SCXL-MaxSonar-WR self‑cleaning sensor is a cost-effective, rugged ultrasonic sensor that is designed for reliable reading to reading the measurement. The MB7560 features a self-cleaning transducer to remove condensation and ice buildup when operating in cold conditions. The MB7560 is the recommended SCXL-MaxSonar-WR self‑cleaning sensor for users unsure which sensor to use in their application. The sensor accurately applies temperature compensation to every reading, using either the integrated temperature sensor or the optional external temperature sensor (HR-MaxTemp).

    High output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The SCXL‑MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

    MB7580 is the TTL version of this sensor.
    MB7566 is the 10-meter version of this sensor.

    Models with additional chemical resistance are available

    The F-Option (IP68) design modification provides our weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP-68) when ordering.

    Product Specifications

    • Resolution of 1-mm
    • Self‑cleaning transducer
    • 0.59Hz read rate
    • Internal temperature compensation
    • 42kHz ultrasonic sensor measures distance to objects
    • RoHS Compliant
    • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
    • Virtually no sensor dead zone, objects closer than 30cm range as 30cm
    • Operates from 2.7-5.5V
    • Low 68mA average current requirement
    • Small, light weight module
    • Designed for easy integration into your project or product
    • Operational temperature -40°C to +65°C (-40°F to +149°F)
    • Real-time automatic calibration (voltage, humidity, and ambient noise)
    • Firmware filtering for excellent noise tolerance and clutter rejection
    • Weather resistant (IP67), optional chemical resistant F-Option
    • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

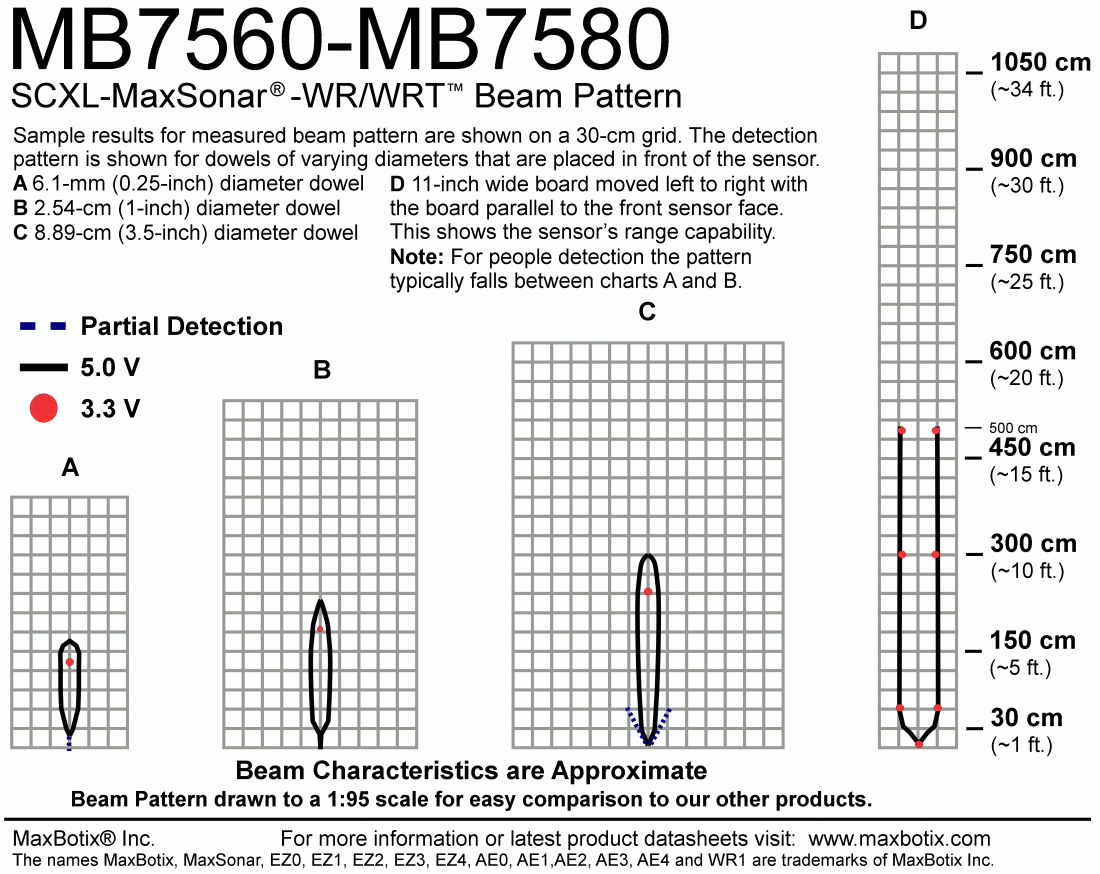

    • Long, narrow detection zone
    • RS232 Serial Output
    • Maximum range of 5 meters (196 inches)

    Documents and Downloads

    SCXL-MaxSonar-WR-datasheet
    Sensor Selection Guide
    SCXL-MaxSonar-WR Chaining
    RoHS Declaration of Conformity
    CE Declaration of Conformity
    MTBF Report
    High Resolution Pictures.zip
