CT10x is a split-core LoRaWAN® Smart Current Transformer created for remote measurement of alternating current levels in amperes. It facilitates the analysis of energy usage by reporting accumulated ampere hours and allows for installation on any existing circuit without the requirement for rewiring your application. With the selection of 100A and 300A current detection ranges, it caters to specific energy monitoring needs in various scenarios.

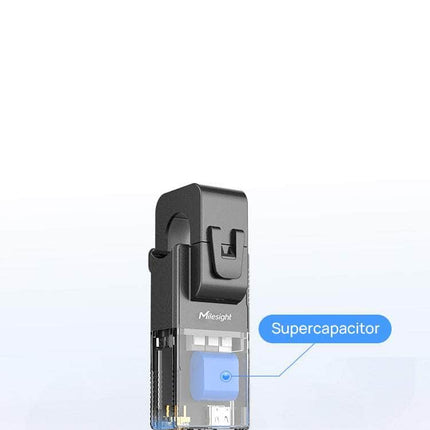

- Self-Powered Operation
- Superior Accuracy with Up to 3.3kHz Frequency
- Real-time Accumulated
- Ampere Hour Calculation
- Non-invasive Installation
- Irregular Current Status Alert
- Compact Size for Versatile Placement
- Cable-Free Design
- LoRaWAN® Wireless Technology

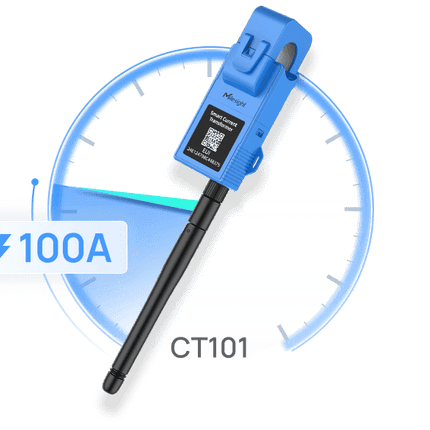

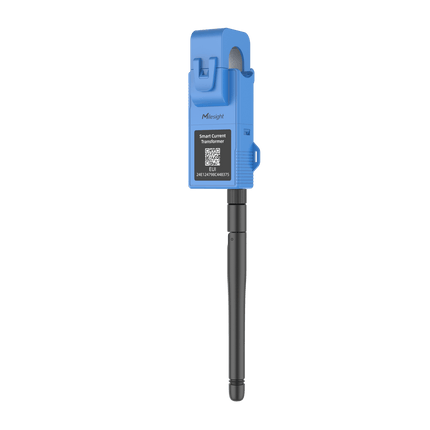

CT101 With 100A Current Capacity
For typical applications where currents of up to 100 amperes are needed.

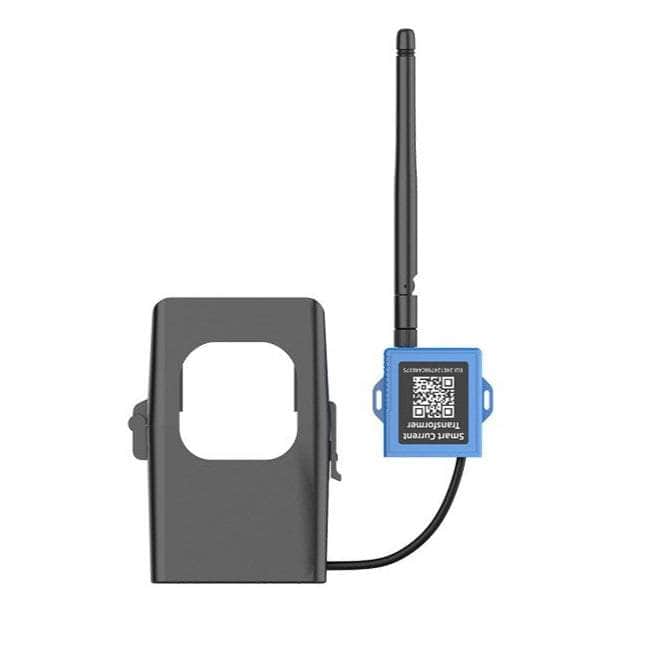

CT103 With 300A Current Capacity
For applications with larger current flows, providing a broader range of current measurement capabilities.
Superior Accuracy
Outperform other competitors on the market, CT10x boasts an impressive high sampling frequency of up to 3.3kHz, guaranteeing unparalleled accuracy and detail.
Efficient Energy Tracking at One-Second Interval
Calculate accumulated ampere hour in real-time at a one-second interval. This enables precise energy consumption monitoring and analysis, achieving goals such as energy conservation and reduced operational costs.

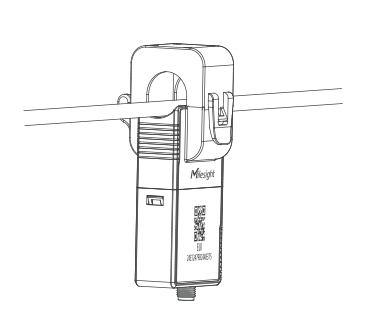

Non-Invasive Installation

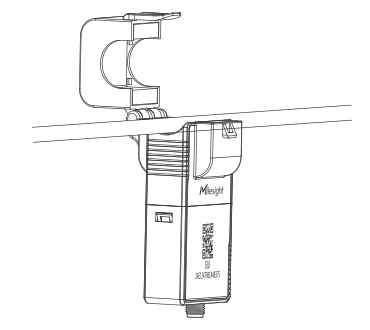

Split core product design for non-invasive and quick installation, eliminating the risk of circuit damage or power interruptions.
Compact Industrial Design
Compact Design for Versatile Placement
Designed to effortlessly fit into tight or confined spaces, CT10x is ideal for seamless installation in various industrial settings.

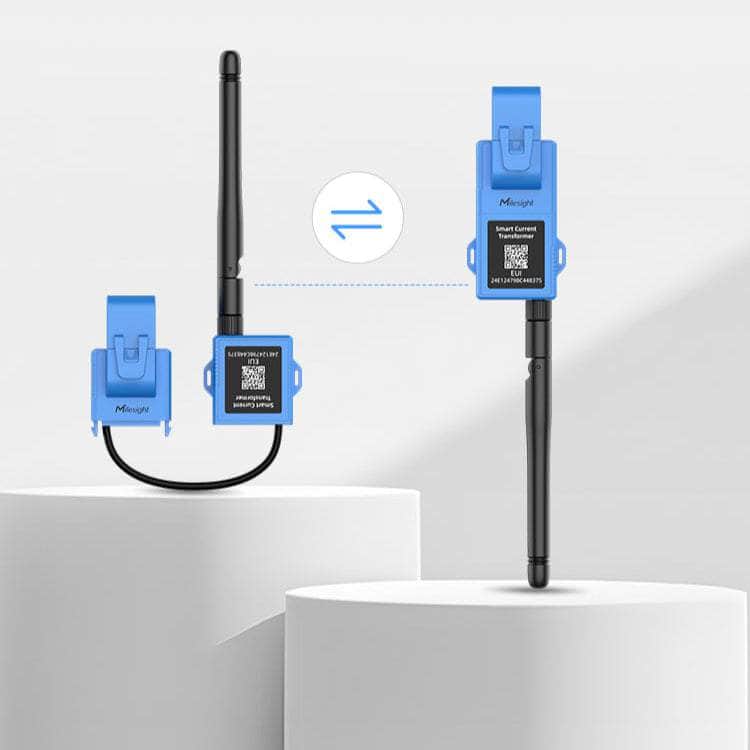

Cable-free
Say goodbye to the hassle of wires. This simplifies the installation process, reduces labor costs, and allows for more flexible placement.
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Specifications (CT101)
Electrical | |
---|---|
Detection Parameter | RMS Current |
Sampling Frequency | 3.3 kHz |
Working Frequency | 50~60 Hz |
Maximum Input Current | 100 A |
Minimum Input Current | 1 A |
Accuracy | ±1 % |
Resolution | 1 mA |
Wireless Transmission | |
Protocol | LoRaWAN® |
Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
Sensitivity | -137dBm |
Mode | OTAA/ABP Class A |
Others | |
Button | 1 × Reboot Button |
LED Indicator | 1 × Status/Alarm Indicator |
Configuration | USB Type-C or Downlink |
Physical Characteristics | |
Power Supply | Induced current power supply |
Color/ Material | Black, Nylon PA66 (UL94 V2) |
Operating Temperature | -20°C~70°C (-4°F~158°F) |
Storage Temperature | -25°C~80°C (-13°F~176°F) |
Relative Humidity | ≤ 95% (Non-condensing) |
Ingress Protection | IP30 |

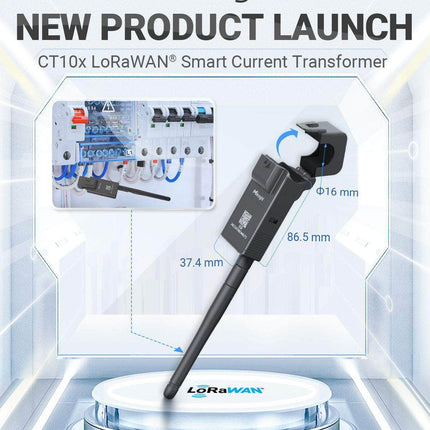

Dimensions | 86.5 × 31 × 37.4 mm (5.7 × 3.54 × 1.47 in) Wire Hole: Ф 16 mm (Ф 0.63 in) |
Weight | 85.65g |
Installation | Suspended on the Testing Conductor |
Specifications (CT103):
Electrical | |
---|---|
Detection Parameter | RMS Current |
Sampling Frequency | 3.3 kHz |
Working Frequency | 50~60 Hz |
Maximum Input Current | 300 A |
Minimum Input Current | 2 A |
Accuracy | ±1 % |
Resolution | 1 mA |
Wireless Transmission | |
Protocol | LoRaWAN® |
Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
Sensitivity | -137dBm |
Mode | OTAA/ABP Class A |
Others | |
Button | 1 × Reboot Button |
LED Indicator | 1 × Status/Alarm Indicator |
Configuration | USB Type-C or Downlink |
Physical Characteristics | |
Power Supply | Induced current power supply |
Color/ Material | Black, Nylon PA66 (UL94 V2) |
Operating Temperature | -20°C~70°C (-4°F~158°F) |
Storage Temperature | -25°C~80°C (-13°F~176°F) |
Relative Humidity | ≤ 95% (Non-condensing) |
Ingress Protection | IP30 |
Dimensions | 86.5 × 31 × 37.4 mm (5.7 × 3.54 × 1.47 in) Wire Hole: Ф 16 mm (Ф 0.63 in) |
Weight | 85.65g |
Installation | Suspended on the Testing Conductor |
