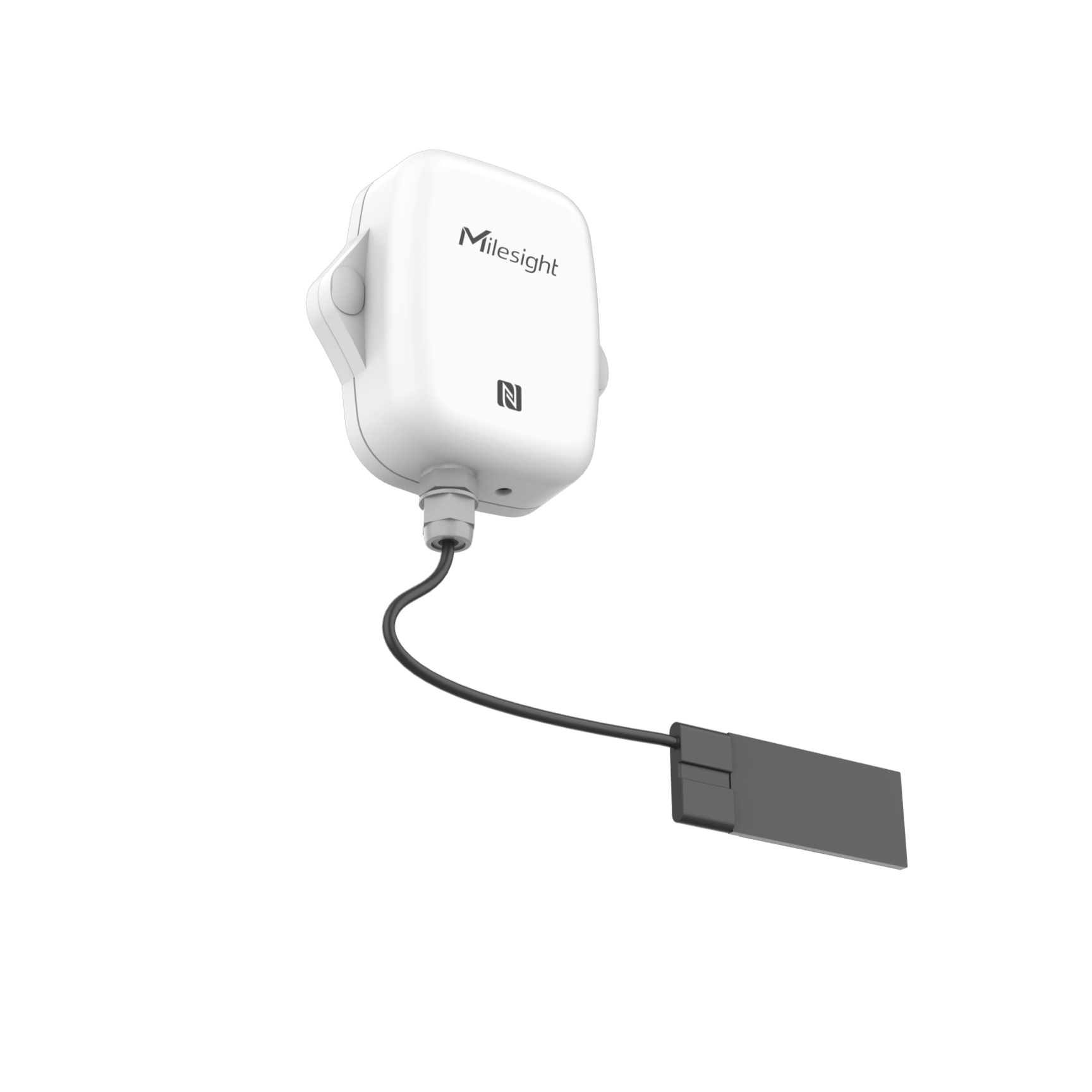

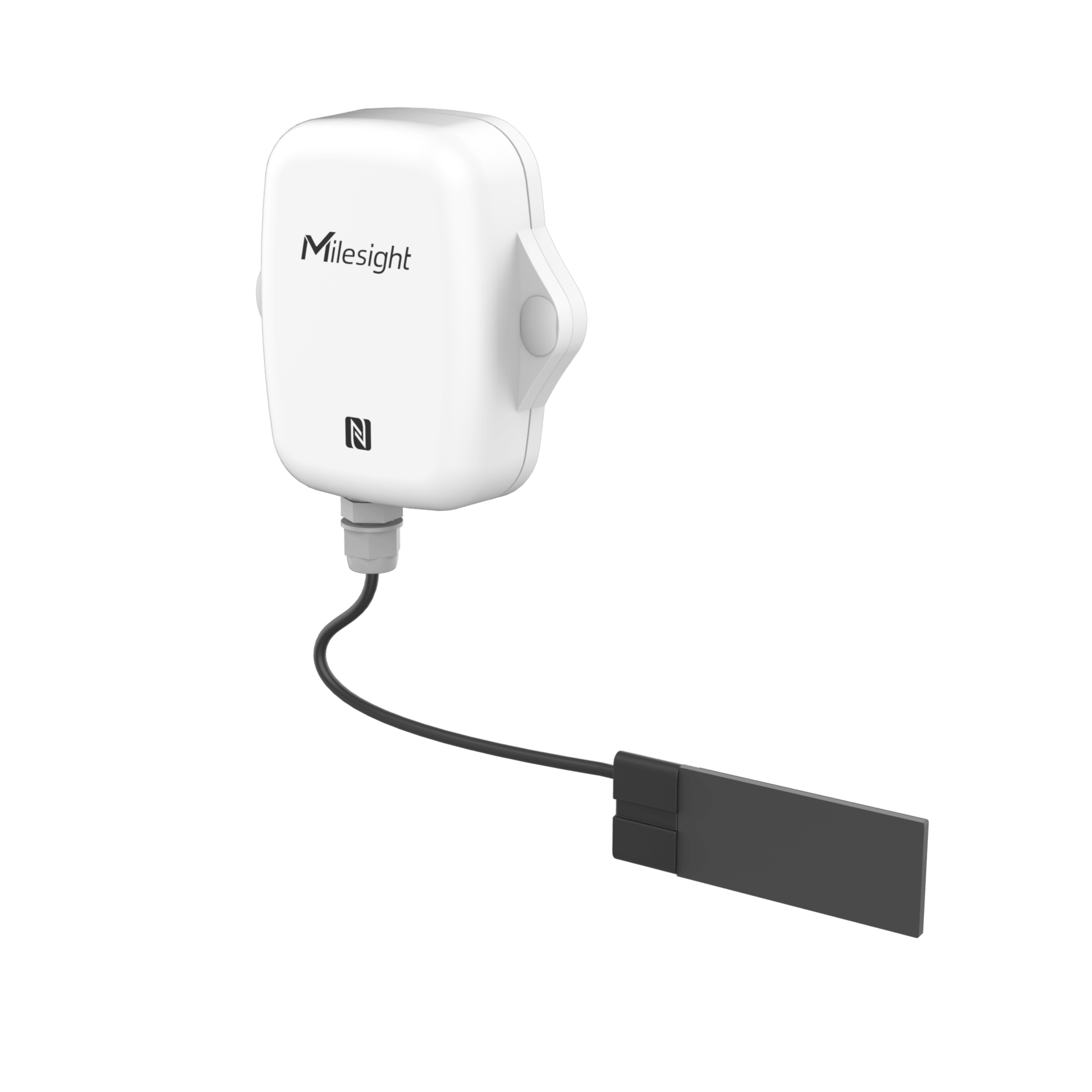

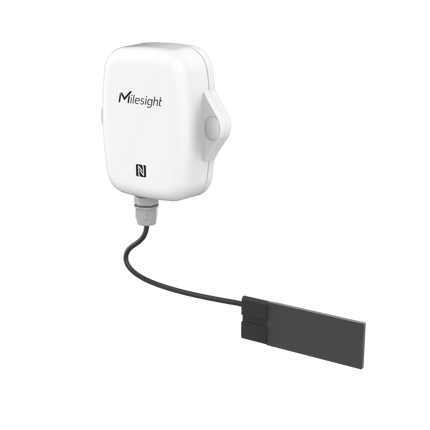

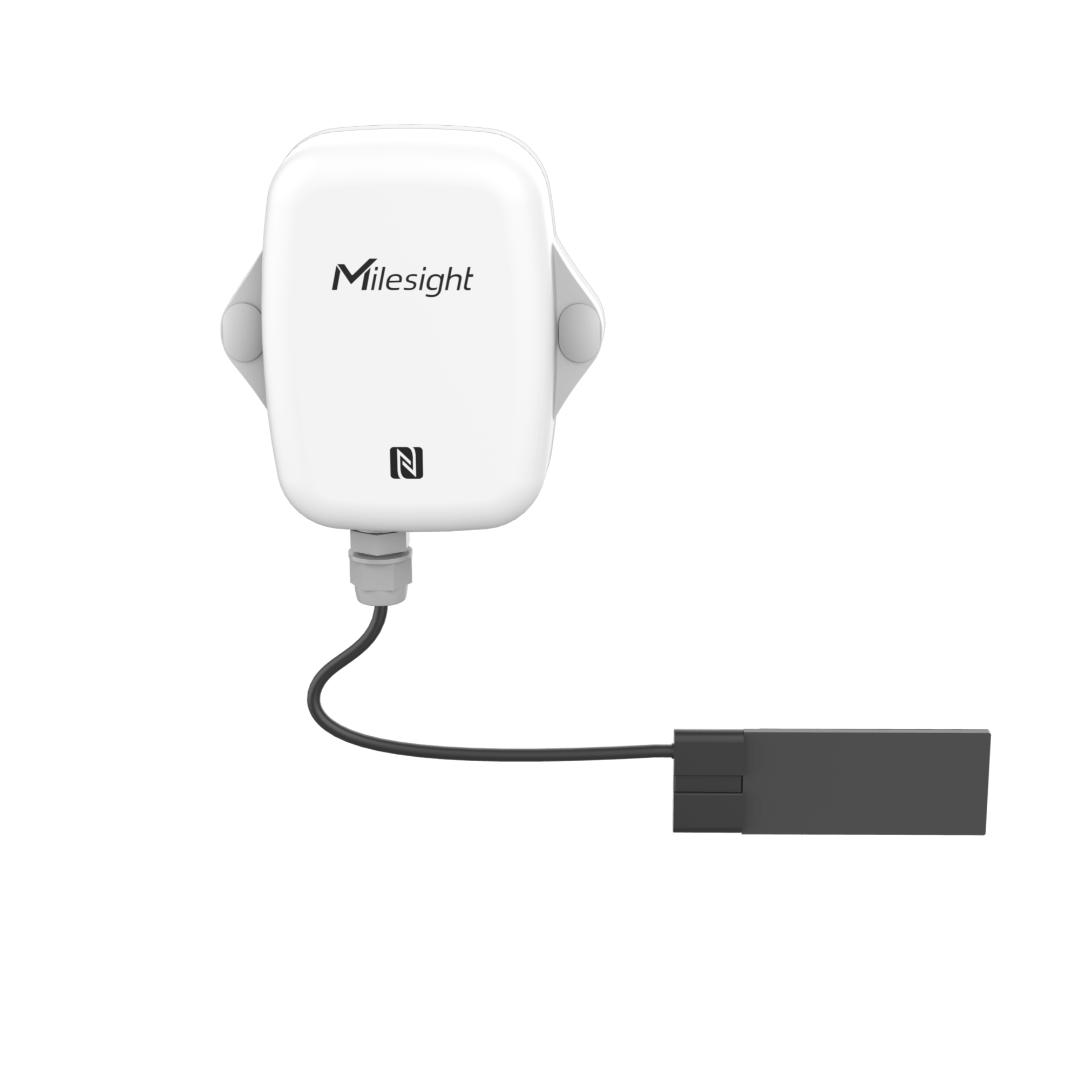

Milesight EM300-CL LoRaWAN Capacitive Level Sensor
Milesight EM300-CL LoRaWAN Capacitive Level Sensor
EM300-CL, the LoRaWAN® capacitive level sensor offers energy saving features that prolongs the battery life up to 10 years and can be seamlessly integrated with containers of distinct shapes and sizes, to facilitate better management and enhance user experience by keeping hand wash levels at check.
- Non-Contact Capacitive Sensing
- Reliable Accuracy with Strong Anti-Interference Ability
- Outstanding IP67 Rated Waterproof Performance
- Flexible and Easy Installation
- 10 Years Long Battery Life
- LoRaWAN® Wireless Deployment
- Remote Management via Milesight IoT Cloud
- Easy NFC Configuration
Non-Contact Capacitive Sensing to Ensure Maximum Cleanliness
Powered by smart capacitive level detection that constantly monitors hand wash levels while maximizing its cleanliness by having no direct contact with the hand wash.
Reliable Accuracy with Strong Anti-Interference Ability
By relying on the principles of integrated contrast using dual electrode plates, it allows the device's anti-interference ability to skyrocket, ensuring data accuracy and on-time hand wash refills.
Outstanding IP67 Rated Waterproof performance
The device is boasted with high IP67 dust and waterproof rating, making it the perfect sensor in upgrading to a smarter and sustainable restroom.
Minimalist & Ultra-Lightweight Design for Flexible and Easy Installation
Its minimalist and sleek design ensures that the sensor blends in well with the environment, making it almost invisible. Its light weighted design (82grams) also allows flexible and hassle-free installations in various distinct settings.
LoRaWAN® Wireless Deployment
Empowered with the advanced LoRaWAN® technology, it allows highly secured wireless data transmission, that prevents tampering of data and fussy tangling wires, ensuring simplified installation process and premium quality data.
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm(868 MHz)/20dBm(915 MHz)/19dBm(470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Detector | |
| Principle | Capacitive Level Sensor |
| Lead Length | 1m |
| Operation | |
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
| Physical Characteristics | |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCL2 Battery (extendable to 2 batteries) |
| Battery Life* | >10 years (trigger 3 alarms per day, 25℃) |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | 0% to 95% (non-condensing) |
| Material & Color | Transceiver: ABS + PC, White Electrode Pad: Black |
| Ingress Protection | Transceiver: IP67 Electrode Pad: IP30 |
| Dimension | Transceiver: 105.6 × 85.2 × 27 mm (4.15 × 3.35 × 1.06 in) Electrode Detection Sheet: 56.8 x 25.5 x 0.2mm (2.24 × 1 × 0.0079 in) |
| Weight | 110g (with 1 battery) |
| Installation* | Transceiver: Wall Screw Mounting, 3M Tape Mounting Electrode Pad: Cable-Tie Mounting, 3M Tape Mounting |
