Milesight EM310-UDL LoRaWAN Ultrasonic Distance Level Bin Sensor

  • $159.00

  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

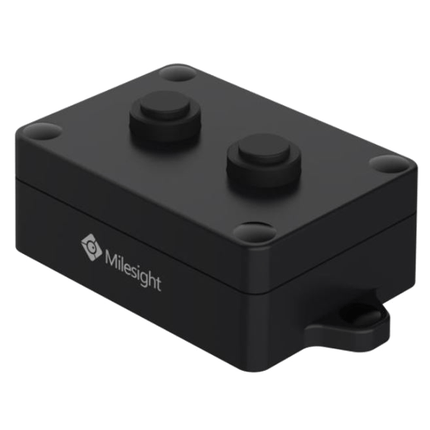

    Milesight EM310-UDL LoRaWAN Ultrasonic Distance Level Bin Sensor

    Milesight EM310-UDL is a LoRaWAN ultrasonic distance sensor mainly for the detection of waste bins and other container fill levels. With a compact size and wide measure range, EM310-UDL can be installed on any type of waste bin or container to monitor solid or liquid level. Besides, EM310-UDL equips with a 3-axis accelerometer to detect the status of the container cover. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, or any other third-party cloud platform users can know the container status and fill-in level in real-time via browser or mobile App remotely.

    EM310-UDL can be widely used in waste management, water tank monitoring, manhole cover monitoring, etc.

    Features

    • 3-450 cm wide measuring range with a short blind zone
    • Easy to install, suitable for various types of waste bins or containers
    • Built-in 3-axis accelerometer sensor to monitor device tilt status
    • IP67 waterproof and salt pray resistant enclosure for outdoor applications and easy to clean
    • Ultra-wide-distance wireless transmission up to the line of sight of 15 km
    • Equipped with NFC for one-touch configuration, support card emulation mode
    • Function well with standard LoRaWAN® gateways and network servers

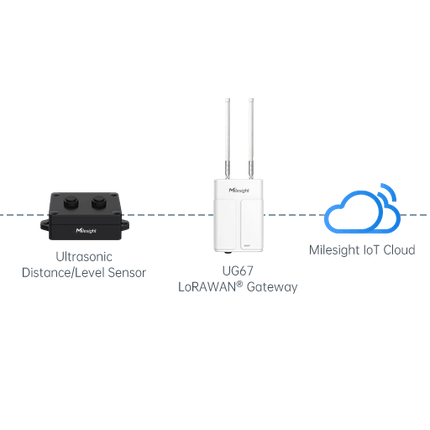

    • Compliant with Milesight IoT Cloud or other third-party cloud platforms

    Specifications

    Wireless Transmission Technology LoRaWAN®
    Frequency AU915/AS923
    Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
    Sensitivity -137 dBm @300bps
    Mode OTAA/ABP Class A
    Measurement Distance
    Detection Range 3 – 450 cm
    Detection Accuracy ± (1+0.3%*S) cm, S=distance
    Distance Resolution 1 mm
    Device Position
    Status Normal/Tilt
    Operation Configuration NFC Configuration via Mobile App
    Physical Characteristics Power Supply 2 × 3500 mAh ER17505 Li-SOCl2 battery
    Battery Life* Up to 10 years (10 min interval + 20 triggers per day)
    Operating Temperature -15°C to +60°C
    Relative Humidity ≤90% (non-condensing)
    Ingress Protection IP67
    Dimension 111 × 62 × 40 mm (4.37 × 2.44 × 1.57 in)
    Weight 168g
    Material & Color ABS, Black
    Installation On the flat surfaces with screws

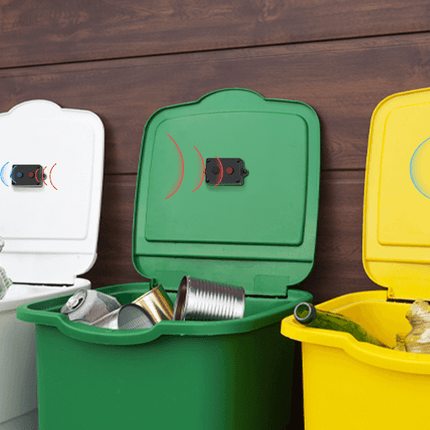

    Smart Bin

    Smart Bin Application

    In the smart city, the efficient management of waste is a crucial challenge to improve residents’ living experience while reduces human effort, time and cost. The traditional way of manually monitoring bins and regularly collecting waste can easily be avoided with IoT technology. Milesight ultrasonic distance/level sensor can be attached to the cover of the waste bin which detects bin status and notices garbage trucks to collect waste when full. Real-time monitoring and historic recording of all bins give user insight to better figure out waste collection schedules and collection route planning. The result is lower labor costs, fewer trucks needed, and lower fleet maintenance expenses.

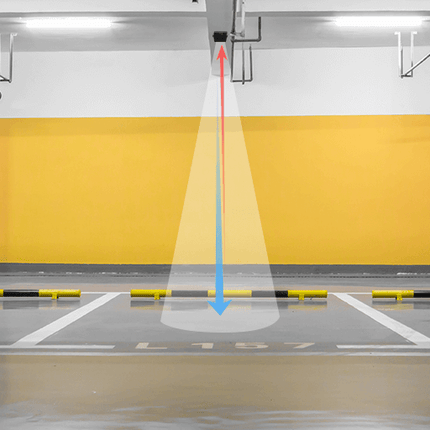

    Smart Parking

    Smart Parking Application

    The number of cars is ever-increasing in the world, especially in the cities where parking usually causes serious problems. Drivers spend an amount of time, effort, and fuel in finding available parking spaces. One of the main objectives of the smart city is to assist the driver to find a vacant location of parking in a shorter time. Milesight ultrasonic distance/level sensor can be installed on the ceiling above the parking spot to detect if it’s occupied or vacant. Unlike magnetic parking sensors which measure magnetic field intensity resulted in low accuracy, ultrasonic sensors have high accuracy to avoid wrong vacancy reporting. By leveraging a smart parking system, divers can save searching time, fuel consumption and reduce car exhaust emission.

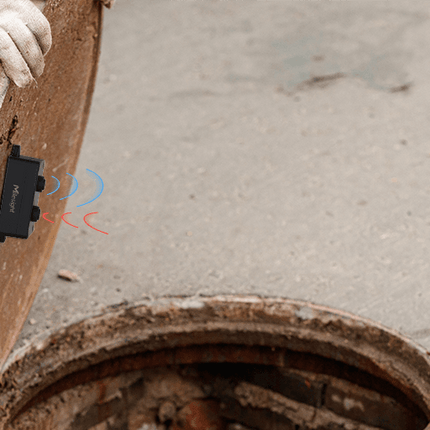

    Smart Manhole Cover

    Smart Manhole Cover Application

    Manhole monitoring for underground supply systems, such as telecommunication, water supply, gas supply and electricity, sanitary sewer and so on, is essential for the city’s operations and maintenance. manhole cover failure such as theft, unauthorized opening and damage, may lead to deadly fall-in accidents or tremendous damage to public property. Hence, it’s necessary to deploy real-time manhole monitoring against theft, damage, and unauthorized access. Milesight ultrasonic distance/level sensor can be attached to the cover’s underside. Integrated with a three-axis accelerometer and ultrasonic sensor, it can detect statuses of the manhole cover – opened or closed and send alerts of unexpected movement of the manhole cover to avoid potential damage and loss.

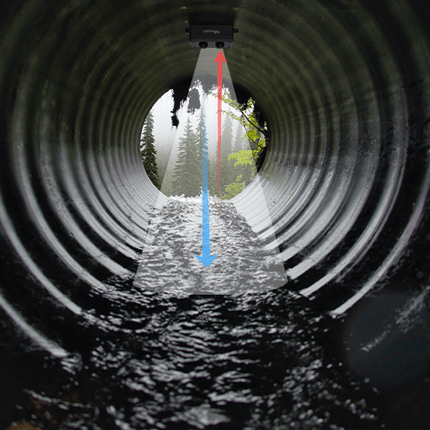

    Smart Sewer

    Smart Sewer Application

    In many cities, heavy rains and continuous rainy seasons often cause flooding of streets and roads, which seriously affects the safety of residents. Due to the blockage and overflow of the underground sewer, the safety problems affect urban road traffic and bring a lot of troubles. In the past few years, the inspection of the sewer was mainly carried out manually. But labor costs continue to increase, and maintenance costs remain high. To reduce costs and the occurrence of problems, the Milesight ultrasonic distance/level sensor is an ideal choice in smart sewer applications to monitor water depth. The real-time measurements provide users with early warning and advanced notice to prevent blockage and overflow. Finally, the objective of high efficiency, good environment, and low cost are achieved.

    Documentations:

    Manufacturer Website Page

    EM310-UDL Datasheet

    EM310-UDL User Manual
