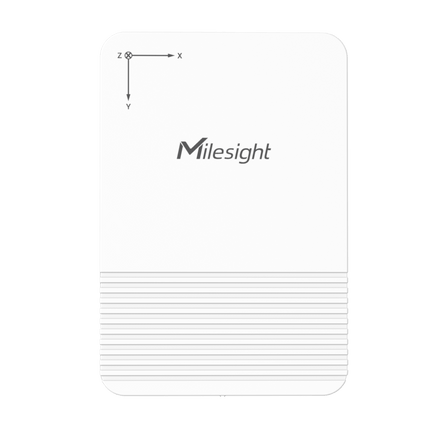

Milesight EM320-TILT LoRaWAN Tilt Sensor
Milesight EM320-TILT LoRaWAN Tilt Sensor
EM320-TILT utilizes the advanced MEMS Accelerometer to deliver high accuracy and stable measurement of the tilt angle of 3 axis X, Y, and Z. With a wide measurement range of -90° – +90°, EM320-TILT can achieve an ultra-high resolution of 0.01° and accuracy of ±1°.
Angling for Accuracy, Flexibility, and Safety
- High Accuracy and Reliability
- Flexible Settings for Versatile Applications
- Artful Design and Robust Enclosure
Flexible Settings
Up to 36 triggers
EM320-TILT supports up to 36 customized trigger alarms based on the angle or inclinations on X, Y and Z, enabling various applications and providing great flexibility.
Relative Initial Position
Instead of a pre-fixed position, EM320-TILT supports customizing the initial position to detect angle changes and send threshold alarms, facilitating the installation and enhancing user experience.
Safeguard in Various Applications
Tilt angle and inclination monitoring is important for safety and structural integrity, as any changes in the angle of inclination can indicate potential issues with the structure's stability.
Tilt sensing is essential for sending alerts to people to predict and track the status of specific objects and protect valuable assets.
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Wireless Transmission | Technology | LoRaWAN® |
Frequency | AU915/US915/AS923 | |
Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) | |
Sensitivity | -137 dBm @300bps | |
Mode | OTAA/ABP Class A | |
Measurement | Axis | X, Y, Z |
Range | – 90° ~ +90° | |
Accuracy | ± 1° | |
Resolution | 0.01° | |
Others | Power On & Off | NFC Configuration via Mobile App, Power Button (Internal) |
Configuration | NFC Configuration via Mobile App | |
Physical Characteristics | Power Supply | 2 × 2700 mAh ER14505 Li-SOCl2 Batteries |
Battery Life* | ≥3 Years (10min reporting interval, SF10) | |
Operating Temperature | -30°C to +60°C | |
Relative Humidity | ≤95% (non-condensing) | |
Ingress Protection | IP67 | |
Dimension | 85 × 58 × 18 mm (3.34 × 2.28 × 0.70 in) | |
Material & Color | PC + ABS, White | |

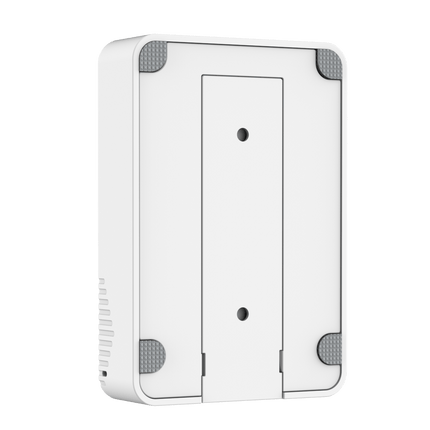

Installation | Wall Mounting |
