Milesight EM400-TLD LoRaWAN NB-IoT ToF Laser Distance Level Bin Sensor

  • $189.00
  • Save $40
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

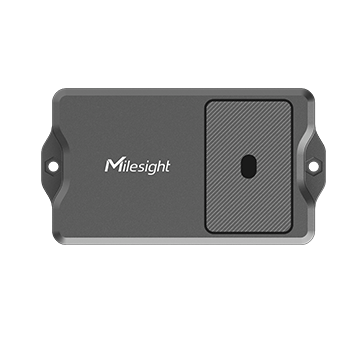

    Milesight EM400-TLD LoRaWAN NB-IoT ToF Laser Distance Level Bin Sensor

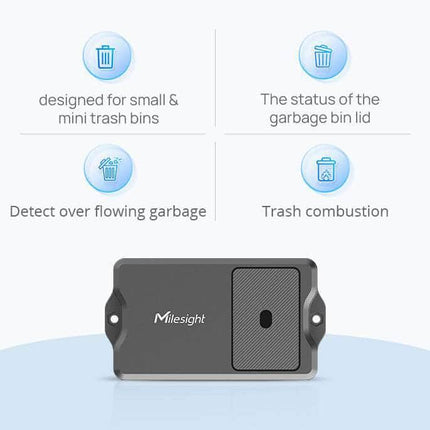

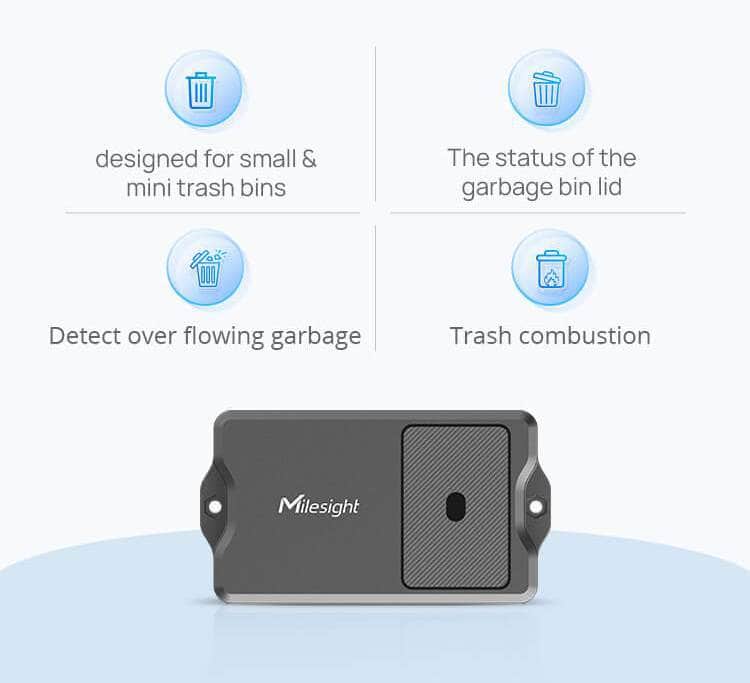

    EM400-TLD is a highly specialized product among the EM400 Series, which is designed for small & mini trash bins, and boasts a range of powerful features, including the ability to detect overflowing garbage, the status of the garbage bin lid, and trash combustion. With pre-set modes that save users from configuration, EM400-TLD is the ideal solution for smart waste management, providing a long-lasting performance that customers can rely on. Additionally, its availability in both LoRaWAN and NB-loT versions allows for a varietv of application scenarios.

    • 3-in-1 Sensor Specialized for Smart Waste Management
      (Fill Level, Device Position, and Combustion)
    • High Accuracy and Almost No Blind Spot
    • Two Pre-set Modes for Seamless User Experience
    • Long-Lasting 10 Years Battery Life
    • Rugged and Reliable IP67 Rated Enclosure
    • Positioning Function Enabled by GNSS Modules (NB-IoT version)

    LoRaWAN® Version

    • Wide Area Coverage: Data transmission range up to 2 km in urban areas and 15 km in rural areas
    • Power Saving: Low battery consumption enabled by LoRaWAN® technology
    • More Deployment Freedom: Deployment options based on both private and public network facilities

    NB-IoT Version

    • Stable Transmission: Reliable data transmission via cellular base stations
    • Positioning Capability: Equipped with GNSS module to help track your assets
    • Low Deployment Cost: Low deployment cost due to the presence of existing cellular base stations
    • Cumulative Reporting: Accumulate up to 24 data packets in each report, saving transmission cost and power consumption

    High Accuracy Guaranteed By ToF

    EM400-TLD employs time-of-flight (ToF) to detect and measure the distance to objects, ensuring almost no blind spots and stable performance. Leveraging ToF technology, EM400-TLD can effectively monitor the fill level of small & mini trash bins with high accuracy and alert users to empty trash in time.

    Specialized for Small Trash Bin Monitoring

    The EM400-TLD is equipped with a built-in 3-axis accelerometer to detect the device position, which can be used to monitor the opening and closing of the trash bin lid.

    Pre-set Modes for Better User Experience

    EM400-TLD comes equipped with two pre-set modes, namely the Standard mode and Bin mode, each designed to cater to the common requirements of distance measurement and waste bin monitoring applications. These modes are configured with different data collection and report intervals to ensure optimal performance. With these ready-to-use modes available, users can integrate EM400-TLD into monitoring solutions quickly.

    Rugged and Reliable IP67 Rated Enclosure

    IP67 rated enclosure ensures EM400-TLD is protected against dust, water, and other environmental hazards, enabling it to withstand harsh environment.

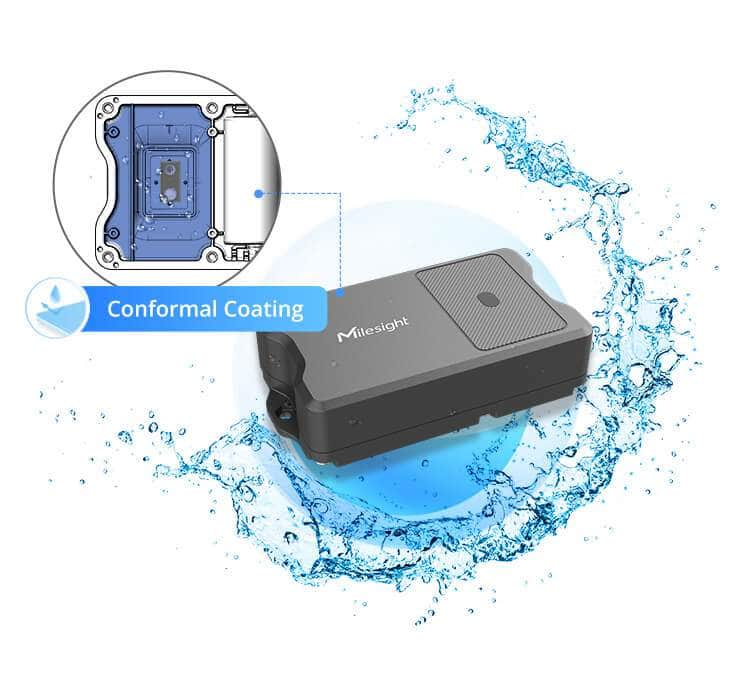

    EM400-TLD also features a conformal coating on its PCBA, which provides an extra layer of protection against moisture, dust, and other contaminants that can damage electronic components.

    These two features extend the lifespan of the EM400-TLD and ensure that it continues to function reliably in harsh conditions.

    Ultra-long 10 Years Battery Life

    EM400-TLD is equipped with high-capacity batteries that can work for over 10 years, offering a long-lasting and reliable performance. Easily replaceable batteries making the installation and maintenance a breeze. This also helps to reduce wiring costs, ensuring that customers can easily install the device and get started with monitoring their garbage bins.

    LoRaWAN® Version:

    • Standard mode: Over 10 years (10-min interval, 25 °C)
    • Bin mode: Over 10 years (20-min interval, 25 °C)

    NB/Cat.M Version:

    • TCP/UDP—10 years, MQTT/AWS—5 years (4 times report per day, each report includes 12 packages with 30-min collection interval, 25 °C)

    LoRaWAN® Based

    • Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
    • High Compatibility: compliant with standard LoRaWAN® gateways and network servers


    Wireless Transmission LoRaWAN® Version Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
    Tx Power 16 dBm (868 MHz)/20 dBm (915MHz)/19 dBm (470MHz)
    Sensitivity -137dBm @300bps
    Mode OTAA/ABP Class A
    NB-IoT/Cat M Version Cellular Band Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
    Cat NB2:
    B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
    SIM Slot 1 (Micro SIM-3FF)
    Application Mode TCP/UDP/MQTT/AWS/Milesight IoT Cloud
    Measurement Distance ToF FoV 27°
    Detection Range 2 ~ 350 cm
    Detection Accuracy ±2 cm
    Detection Resolution 1 mm
    Device Position Status Normal/Tilt
    Temperature Range -40 ~ 125°C
    Resolution 0.1°C
    GNSS Positioning (NB-IoT/Cat M Version Only) Parameters Longitude/Latitude
    Resolution 0.000001
    Operation Power On & Off NFC, Power Button (Internal)
    Configuration Mobile App (via NFC)
    Physical Characteristics Power Supply 2 x 9000 mAh ER26500 Li-SOCL2 Batteries
    Battery Life LoRaWAN® Version:
    Standard mode: Around 10 years (10 min interval, 25°C)
    Bin mode: Around 10 years (20 min interval, 25°C)
    NB-IoT/Cat.M Version:
    TCP/UDP—Around 10 Years, MQTT/AWS—Around 5 Years
    (4 Times Report per Day, per Report Includes 12 Packages with 30-min Collection Interval, 25°C)
    Operating Temperature – 30°C ~ 70°C
    Relative Humidity ≤95% (non-condensing)
    Ingress Protection IP67
    Dimension 118 × 65 × 30 mm
    Material & Color ABS + PC (Flame Retardant), Black gray
    Installation On the Flat Surfaces with Screws



    User Guide
