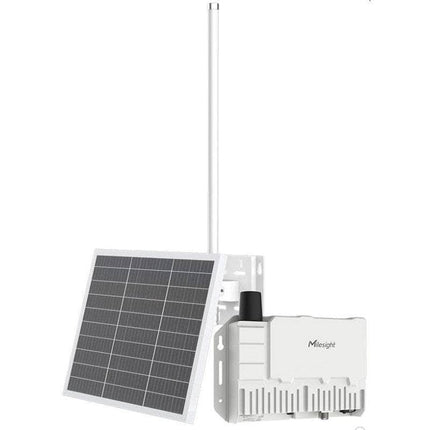

Milesight SG50 Ultra Low Power Solar LoRaWAN Gateway 4G Built-in Battery IP67 and Accessories

  • $1,299.00
  • Save $100
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    Milesight SG50 Ultra Low Power Solar LoRaWAN Gateway 4G Built-in Battery IP67 and Accessories



    • Built-in rechargeable Batteries & Solar Panel
    • Supports Typical Use for Up to 4 Days Without Sunlight
    • Supports Cellular Backhaul Network
    • Easy Deployment, Even in Remote Regions
    • Highly Efficient & Advanced Power Management Design
    • Highly Compatible with Mainstream Network Servers

    SG50 is an energy-efficient solar LoRaWAN® gateway designed for outdoor environments with limited power availability and ample solar energy resources. With built-in batteries and a solar panel, SG50 can work independently in various scenarios especially the place with hard access to power resources. Besides the high adaptability, SG50 is highly compatible with mainstream network servers and supports remote management via remote network servers which provides both convenience and secured management. Benefiting from its robust structural design and high IP67 protection rate, SG50 can work smoothly in harsh environments. It is specifically tailored for applications such as oil and gas, mining, forestry, and remote industries where power consumption must be carefully managed.

    SG50 ensures uninterrupted operations at night or during cloudy periods with its built-in battery. It features a reliable 25Ah internal battery, ensuring typical operation for up to 4 days without sunlight.

    Low Power Consumption Design

    • Typical Power Consumption: 0.8w
    • Data Package Filter: This feature filters out invalid packages, effectively reducing unnecessary power and cellular usage.
    • Smart WiFi Control: It offers automatic WiFi shutdown during low solar power, reactivation on battery charging, and scheduled WiFi control for battery efficiency.

    High Reliability in Harsh Conditions

    • Ingress Protection: IP67
    • Operating Temperature: -30°C to +70°C
    • Battery Charging Temperature: -20°C to +50°C
    • Low-Temperature Battery Heating to Maintain Normal Operation

    LoRaWAN® Based

    • Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
    • High Compatibility: compliant with standard LoRaWAN® sensors and network servers

    Easy Configuration via Wi-Fi

    SG50 offers effortless Wi-Fi configuration within a 10-15 meter range, eliminating the need for proximity. This essential feature simplifies setup, particularly in remote or challenging locations, saving time and enhancing accessibility.

    Note: WiFi is solely utilized for configuration purposes.

    Specifications

    Hardware System
    CPU Dual-core 240MHz, 32-bit Xtensa® LX7
    Memory 8 MB PSRAM
    Flash 16 MB
    LoRaWAN®
    Antenna Connector 1 × 50 Ω N-Female External Connector
    Channel 8 (Half-duplex)
    Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
    Sensitivity -140 dBm Sensitivity @292bps
    Output Power 27 dBm Max
    Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
    LBT1 Support
    Cellular Interface
    Network 4G LTE (CAT 1)/GSM
    Antenna 1 × External Antenna (Share with GPS)
    Cellular Band L08GL (Global except North America):
    LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66
    LTE-TDD: B34/38/39/40/41;
    GSM: B2/3/5/8
    L08NA (North America):
    LTE-FDD: B2/4/5/12/13/66
    SIM Slot 1 (Nano SIM-4FF)
    Wi-Fi Interface
    Antenna 1 × External Antenna
    Standards IEEE 802.11b/g/n, 2.4 GHz
    Mode AP Mode (Device Configuration Only)
    GNSS
    Technology GPS
    Antenna 1 × External Antenna (Share with Cellular)
    Others
    Button 1 × Reset/Wi-Fi Button
    Console Port 1 × USB 2.0 (Type-C) for Power Supply and Console
    LED Indicators 1 × SYSTEM, 1 × LTE, 1 × Wi-Fi
    Built-in Watchdog, Timer
    Power Supply and Consumption
    Power Supply 1. Solar Power or DC Power (12~24VDC) via M12 Connector
    2. 3.6V, 25000mAh Backup Batteries
    3. 5V, 2A by Type-C Port
    Battery Life2 Up to 4 Days Without Sunlight
    Power Consumption Typical 0.8W
    Physical Characteristics
    Ingress Protection IP67
    Housing & Color Metal Cast Aluminum, White
    Weight 1.275 kg (Without Batteries), 1.755 kg (With Batteries)
    Dimensions 250 × 157.5 × 46mm (9.84 x 6.20 x 1.81 in)
    Installation Wall or Pole Mounting
    Environmental
    Operating Temperature -30°C to +70°C (-22℉ to +158℉)
    Charging Temperature -20°C to +50°C (-4℉ to +122℉)
    Storage Temperature -40°C to +85°C (-40℉ to +185℉)
    Relative Humidity 0% to 95% (Non-condensing) at 25°C/77℉
