Milesight WT20x LoRaWAN Smart Thermostat Temperature Control

  • $199.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    Milesight WT20x LoRaWAN Smart Thermostat Temperature Control

    • Seamlessly Matching HVAC System
    • LoRaWAN® Wireless Deployment
    • Strong Compatible Connectivity (BACnet and More)
    • 4 Customizable Temperature Control and 3 Fan Modes
    • Proactive Temperature Management
    • 64 Independent Local Scheduling
    • Unique Milesight D2D & Multicast
    • Easy Configuration via NFC

    Milesight WT201 smart thermostat redefines HVAC control, employing LoRaWAN technology for unparalleled convenience and energy efficiency. Unlike traditional thermostats, it offers remote control capabilities, aligning seamlessly with a green energy strategy. Elevate your living spaces with advanced heating and cooling management, prioritizing sustainability and eco-friendly practices.

    Seamlessly HVAC Systems Matching

    With multiple wiring terminals available, the Smart Thermostat can support up to 4 stages of heating, 2 stages of cooling, and an emergency heating option. It is meticulously engineered to seamlessly integrate with a wide variety of HVAC systems, such as heat pumps, PTAC units, air conditioners, boilers, and furnaces.

    LoRaWAN® Wireless Deployment

    Compared to commonly used wireless technologies like Wi-Fi, Bluetooth, or Zigbee, the LoRaWAN® based Wireless thermostat offers a compelling performance for HVAC control. It excels in terms of long-range coverage, stable connections, low power consumption, and robust security, making it the preferred choice for critical and flexible applications in large-scale deployments.

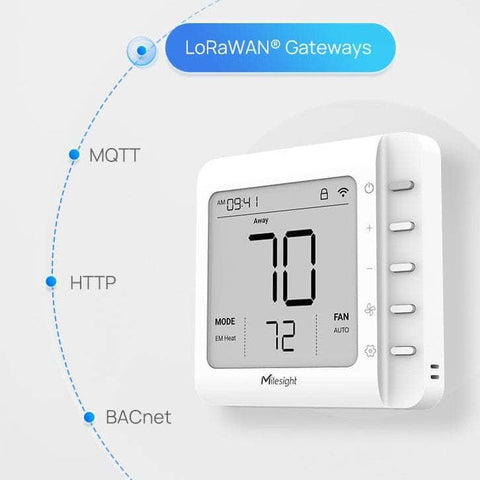

    Strong Connectivity

    By incorporating LoRaWAN® gateways and harnessing the power of Milesight IoT Cloud and third-party platforms using various communication protocols that encompass MQTT(s), HTTP, and BACnet, the Smart Thermostat brings advanced performance to energy-efficient HVAC management, remote control, and data-driven management optimizations.

    Reliable Data Management

    Strong Store Capacity

    A maximum 1000 records can be stored in the thermostat and cannot be manually deleted, further securing the traceability of the reported information and integrated management.

    Reliable Data Retransmission

    With support for data retransmission, the device guarantees that the server gets all the data even if the network is down occasionally.

    Milesight D2D

    The exclusive Milesight LoRa®-based protocol enables easy communication between the smart thermostat and other Milesight LoRaWAN® devices without a gateway within a second. Additionally, the thermostat incorporates intelligent occupancy sensing capabilities to establish fast linkages and efficiently control the HVAC system.

    4.2-Inch Intuitive Segmented Code Screen

    Equipped with 5 external buttons and a 4.2-inch segmented code screen, it is an incredibly user-friendly and approachable Smart Thermostat bringing intuitive functionality labels and easy-to-use button operations.

    Specifications:

    Wireless Transmission
    Technology LoRaWAN®, Milesight D2D
    Frequency US915/AU915/KR920/AS923-1&2&3&4
    Tx Power 22 dBm (915 MHz)
    Sensitivity -137dBm
    Mode OTAA/ABP Class C
    Thermostat Feature
    Compatibility Work with most 24VAC HVAC system, including Furnaces and Air Conditioners (2H/2C), Heat Pumps (4H/2C + 1 stage AUX Heat), Boilers, and PTAC
    Temperature Control Mode Options Heat, EM (Emergency) Heat, Cool, Auto
    Fan Mode Options Auto, On, Circulate
    Digital Input 1 × Digital Input for 100-250 VAC keycard switch
    Advanced Feature Local Control Schedule, Threshold Alarm,Freeze Protection,
    Child Lock, Multicast, Milesight D2D Controller, Milesight D2D Agent,
    Data Storage, Data Retransmission
    Temperature Sensor
    Sensor Type NTC
    Range -4°F to 140°F (-20°C to 60°C)
    Accuracy ± 0.9°F (32°F ~ 104°F)/± 0.5°C (0°C ~ 40°C)
    Report Resolution 0.1 °F (0.1°C)
    Display & Configuration
    Display 4.2-inch LCD Segment Code Screen with White Backlight
    External Buttons 5 Buttons for System On/Off, Temperature Up/Down, Temperature Control Mode Switch, Fan Mode Switch and Reset
    Configuration NFC or Type-C USB
    Physical Characteristics
    Power Supply 20 to 30 VAC, 24VAC Nominal
    Operating Temperature -4°F to 140°F (-20°C to 60°C)
    Relative Humidity 0% to 95% (non-condensing)
    Ingress Protection IP30
    Material & Color PC + ABS (V0 Retardant), White
    Weight 172 g
    Dimension 113 × 110 × 21 mm ( 4.45 × 4.33 × 0.83 in)
    Installation Wall Screws Mounting
