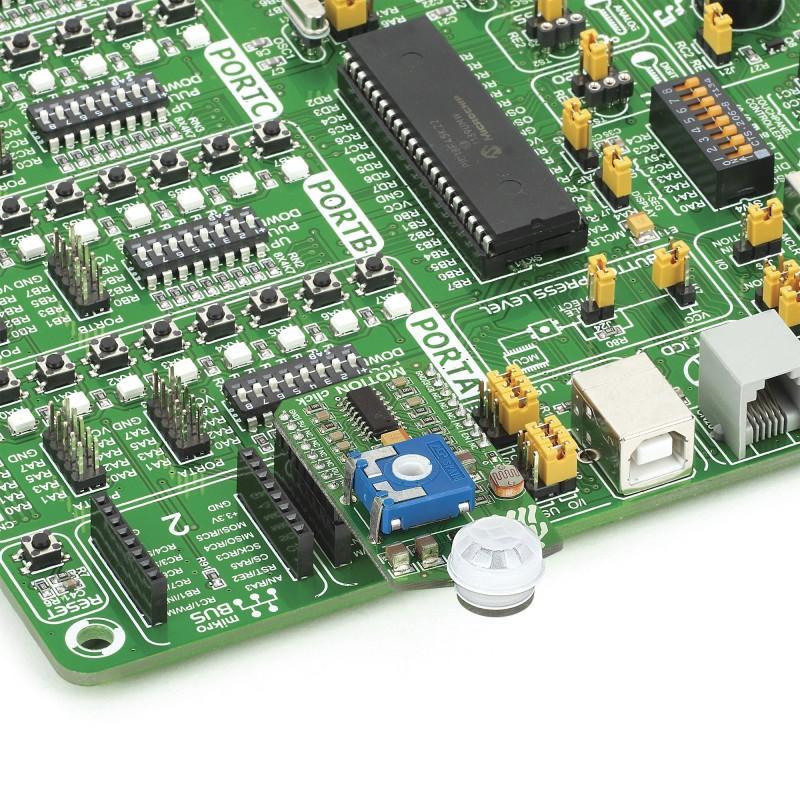

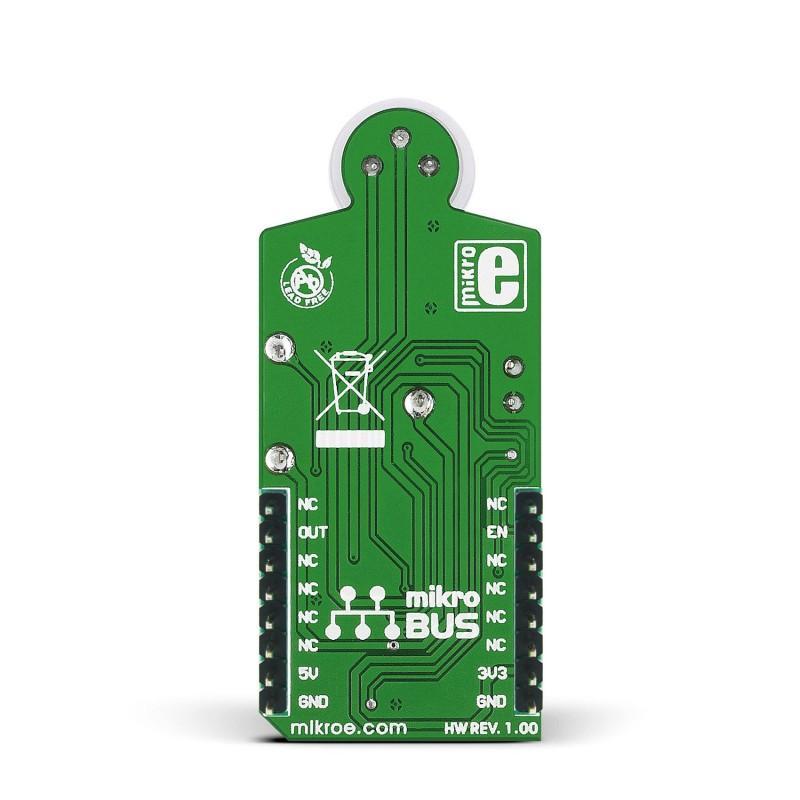

MOTION click is a motion detector sensitive only to live bodies. It carries PIR500B, a pyroelectric sensor. The click is designed to run on 3.3V power supply only. It communicates with the target MCU over RST and INT pin on the mikroBUS™ line.
How it works

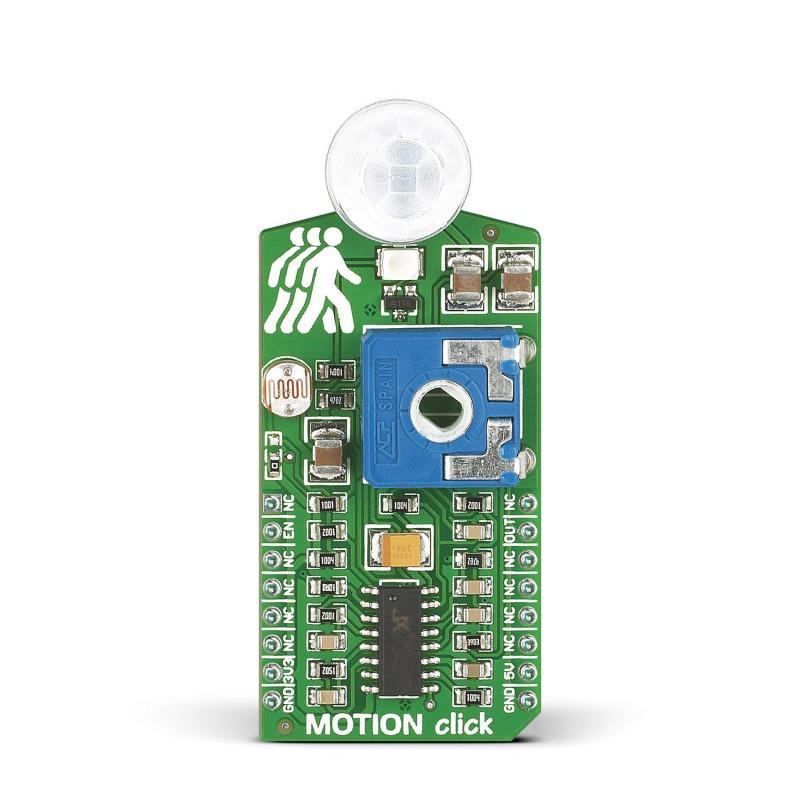

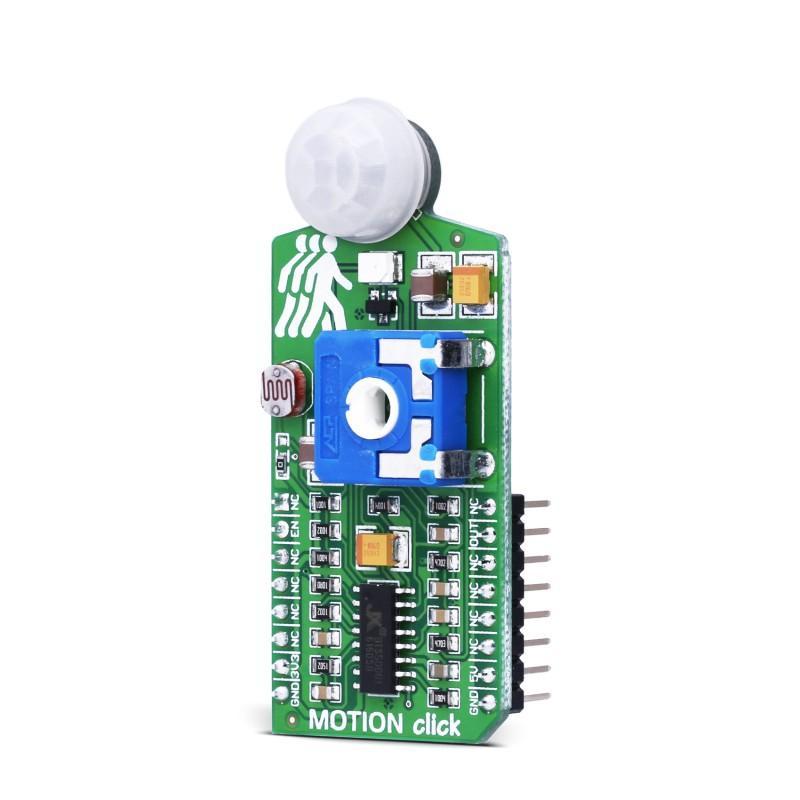

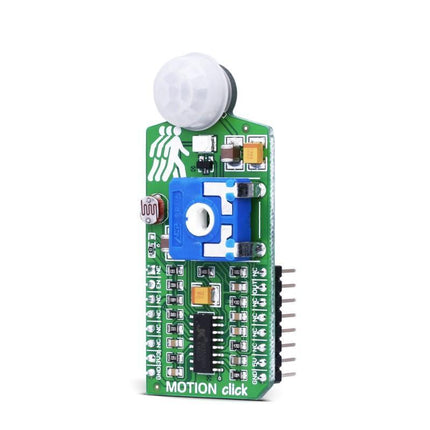

MOTION click carries PIR500B, a pyroelectric sensor which generates a voltage when exposed to infrared radiation emitted by live bodies (the white plastic Fresnel lens covering the sensor filters visible light).
The signal is processed by a BISS0001 PIR sensor controller which sends an interrupt to the MCU through the mikroBUS INT (out) line.
An onboard potentiometer lets you adjust the detecting range of the sensor (up to 4 meters).
Night only mode
The click also has a night only mode—resoldering a zero-ohm jumper activates the onboard photo resistor which acts as a light-sensitive switch.
You can also switch the sensor ON and OFF by sending a signal from the MCU through the mikroBUS RST pin.
Application
MOTION click is ideal for alarm systems, light switch controllers, and similar systems where human presence needs to be detected.
Key features
- Up to 4m detection range
- Night only mode
- PIR500B pyroelectric sensor
- BISS0001 PIR sensor controller
- Excellent noise immunity
- Interface: RST, INT pins
- 3.3V power supply
Specifications
Type | Motion |
Applications | Measuring strength of different magnets. Measuring distance of a magnet from sensor (suitable for industrial controllers, joysticks, or any other applications for contactless linear or rotary position sensing) |
On-board modules | PIR500B a pyroelectric sensor |
Key Features | Onboard photo resistor for night-only mode. Adjustable detecting range (up to 4 meters) |
Key Benefits | Sensitive only to live bodies. You can switch it ON and OFF from the MCU |
Interface | GPIO |
Input Voltage | 3.3V or 5V |
Compatibility | mikroBUS |
Click board size | L (57.15 x 25.4 mm) |
