MS48-LR LoRaWAN Modbus Gateway

  • $319.00
  • Save $80
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    MS48-LR LoRaWAN to Modbus Gateway

    The MS48-LR is an open-source LoRaWAN To Modbus Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, or Cellular Network (via Optional 4G module). The LoRa wireless allows users to send data and reach extremely long ranges at low data rates.

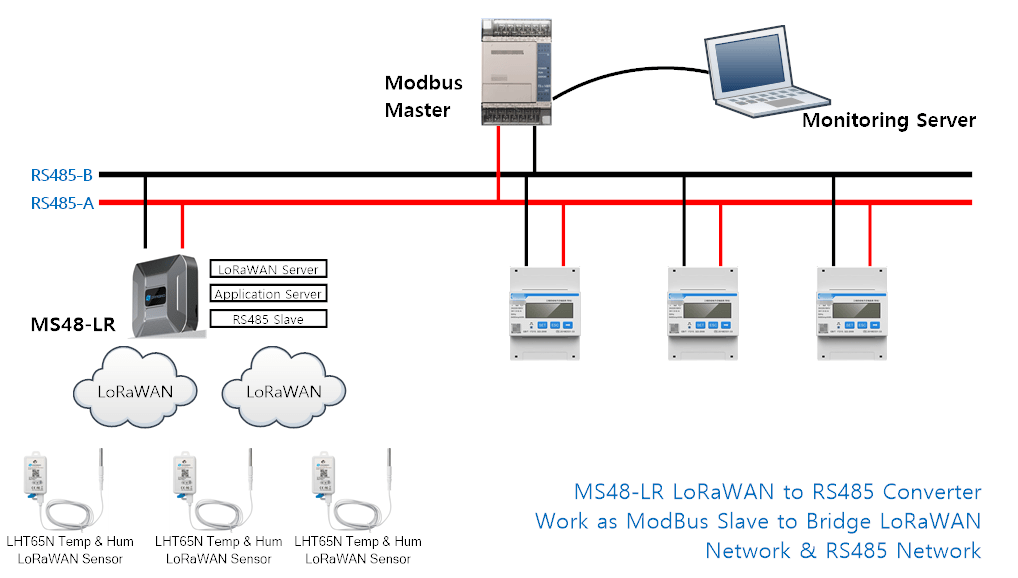

    The MS48-LR is fully compatible with LoRaWAN protocol. MS48-LR includes a built-in LoRaWAN Server and IoT server, User can connect virous LoRaWAN devices to MS48-LR, and use PLC to access these devices via Modbus network.

    Different countries use different LoRaWAN frequency bands. MS48-LR has these bands pre-configured. Users can also customize the frequency bands to use in their own LoRa network.

    MS48-LR supports remote management. System Integrator can easy to remote monitor the gateway and maintain it.

    Features:

    • Open Source Debian system
    • Managed by Web GUI, SSH via WAN or WiFi
    • Remote Management
    • Auto-provisioning for batch deployment and management
    • LoRaWAN Gateway
    • 10 programmable parallel demodulation paths
    • Pre-configured to support different LoRaWAN regional settings.
    • Allow customizing LoRaWAN regional parameters.
    • Different kinds of LoRaWAN Connections such as:
      • Semtech UDP Packet Forwarder
      • LoRaWAN Basic Station
      • ChirpStack-Gateway-Bridge (MQTT)
    • Built-in ChirpStack local LoRaWAN server
    • Built-in  Node-Red local Application server
    • Act as Modbus Slave mode

    Applications:

    • Smart Buildings & Home Automation
    • Logistics and Supply Chain Management
    • Smart Metering
    • Smart Agriculture
    • Smart Cities
    • Smart Factory

    Specifications:

    Hardware System:

    • CPU: Quad-core Cortex-A7 1.2Ghz
    • RAM: 512MB
    • eMMC: 4GB

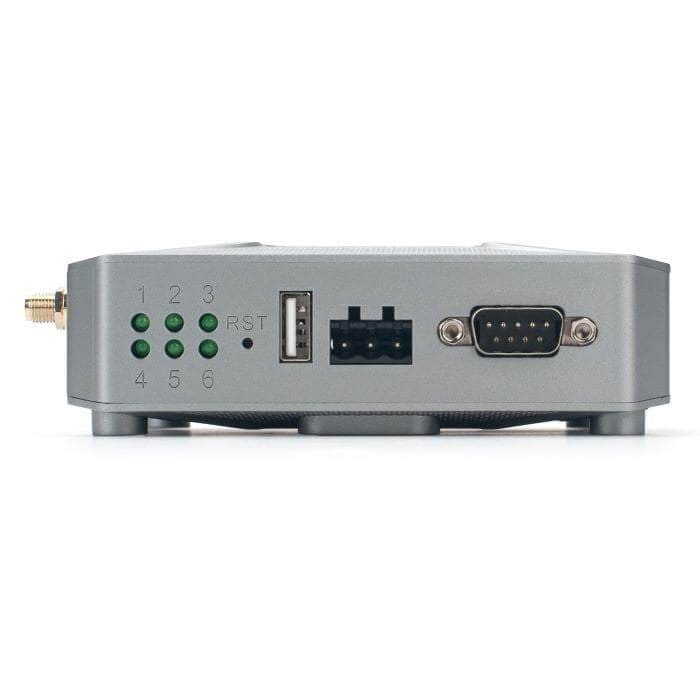

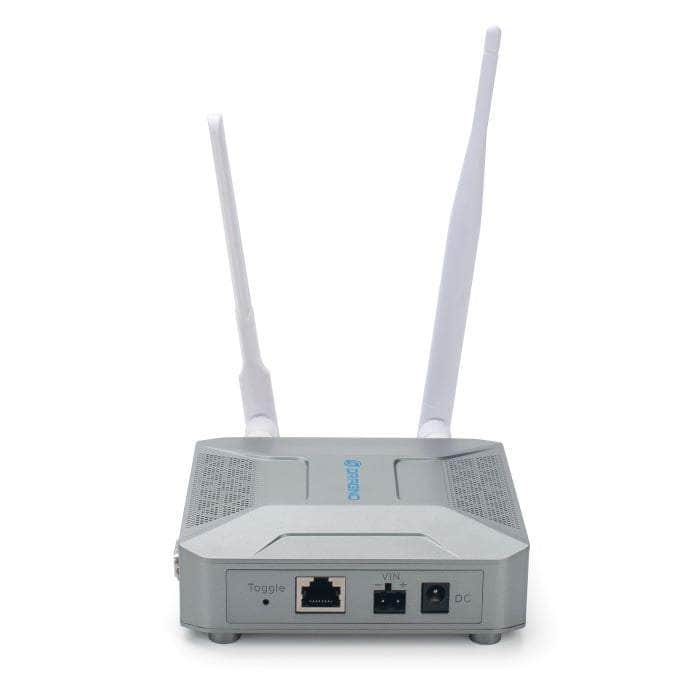

    Interface:

    • 10M/100M RJ45 Ports x 1
    • Multi-Channel LoRaWAN Wireless
    • WiFi 802.11 b/g/n
    • USB 2.0 host connector x 1
    • Mini-PCI E connector x 1
    • RS485 Interface x 1
    • RS232 Interface x 1

    LoRa Spec:

    • Up to -140 dBm sensitivity with SX1250 Tx/Rx front-end
    • 70 dB CW interferer rejection at 1 MHz offset
    • Able to operate with negative SNR, CCR up to 9dB
    • Emulates 49 x LoRa demodulators and 1 x (G)FSK demodulator
    • Dual digital TX & RX radio front-end interfaces
    • 10 programmable parallel demodulation paths
    • Dynamic data-rate (DDR) adaptation
    • True antenna diversity or simultaneous dual-band operation

    Cellular 4G LTE (optional):

    • Quectel: EC25 LTE module
    • Standard Size SIM Slot
    • 2 x 4G Sticker Antenna.
    • Up to 150Mbps downlink and 50Mbps uplink data rates
    • Worldwide LTE,UMTS/HSPA+, and GSM/GPRS/EDGE coverage
    • MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

    Operating Condition:

    • Work Temperature: -20 ~ 70°C
    • Storage Temperature: -20 ~ 70°C
    • Power Input: 12V, 2A, DC
