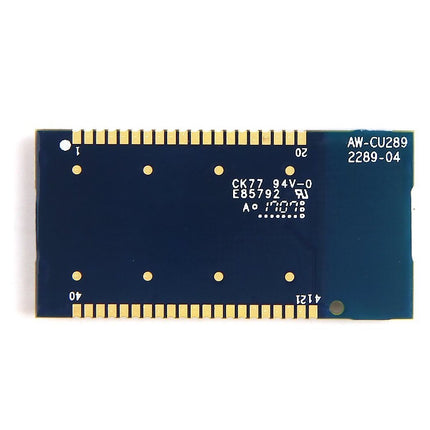

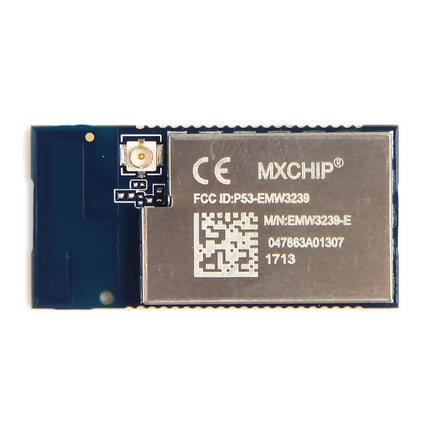

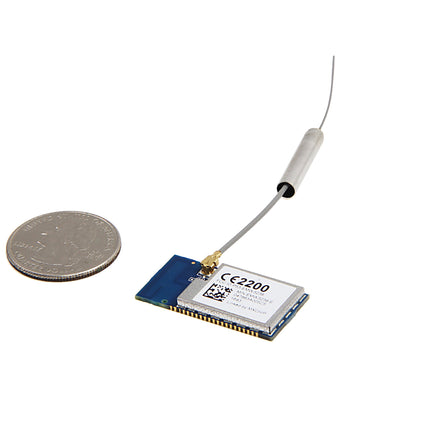

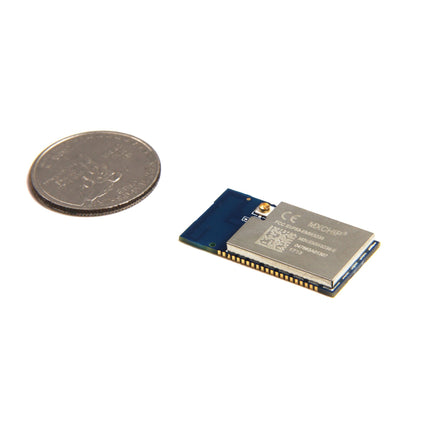

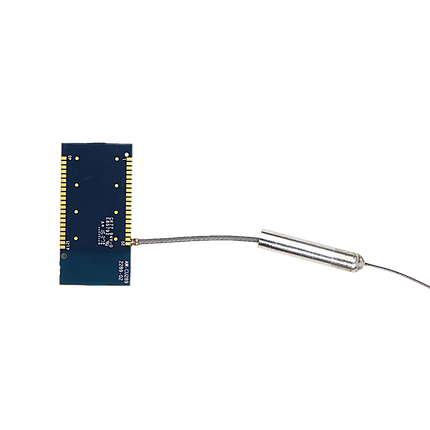

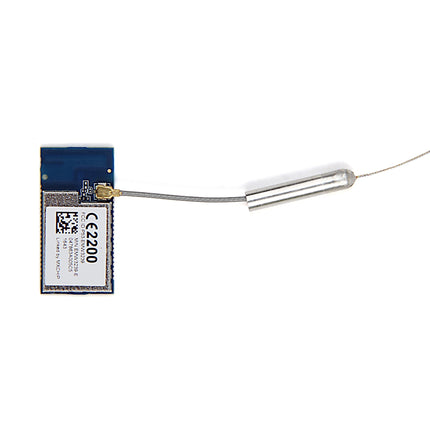

MXCHIP EMW3239 Combo Module-WiFi Bluetooth BLE (External IPEX Antenna)

  • $15.00
  • Save $25
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • MXCHIP EMW3239 Combo Module-WiFi Bluetooth BLE (External IPEX Antenna)

    EMW3239 is an embedded module supplied by 3.3V voltage with a radio-frequency chip with both Wi-Fi and BT4.1 and the ARM Cortex-M4 MCU operating at a 100 MHz frequency. SRAM up to 256KB, on-chip Flash up to 1MB and off-chip up to 2MB. EMW3239 has abundant peripherals supplied for different Wi-Fi and BT devices. EMW3239 contains 2.4GHz WLAN IEEE 802.11 b/g/n MAC/Baseband/Radio and Bluetooth 4.1 (Supportable with BLE). Power amplifier is suitable for output power demand in passive devices. EMW3239 has low noise amplifier with best receive sensitive and internal radio-frequency transmit-receive switch.



    • Dual Mode Bluetooth + Wi-Fi Combo;

    • Cortex-M4 MCU and Wi-Fi/Bluetooth Radio-Frequency Chip;

    • 256KB SRAM, 1MB on-chip Flash and 2MB off-chip SPI Flash

    • Operating voltage: DC 2.66V~3.6V ;

    • Bandwidth: 20MHz. Maximum transmission rate: 72.2Mbps

    Wi-Fi properties

    • Support 802.11b/g/n

    • Support station and Soft AP mode

    • Baud Rate: 921600

    Bluetooth properties

    • Classic Bluetooth and Low Power Bluetooth (dual mode)

    • Support Bluetooth 4.1

    • Antenna: IPEX Antenna


    • 1x I2C

    • 2x USART

    • SPI/I2S

    • CAN

    • Up to 30 GPIOs with hardware interruption

    • 12-bit, 2.4MSPS ADC

    • Serial wire debug (SWD) & JTAG

    Operating temperature

    • -30℃ to +70℃

    Application scenarios

    • Smart Energy

    • Smart Security

    • Smart Security

    • Industrial Automation

    • Healthcare Devices

    • Instruments and Meters

    • Home Automation

    • Smart Transportation

    • Smart Lighting

    Technical Details

    Weight G.W 3g
    Battery Exclude

    Part List

    EMW3239 Combo Module-WiFi Bluetooth BLE(External IPEX antenna) 1
    Antenna Board 1
