NB-IoT Shield - Narrow Band Internet of Things Arduino Shield

  • $59.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • NB-IoT Shield - Narrow Band Internet of Things Arduino Shield

    NB-IoT Shield + Arduino = the fastest way to test NB-IoT / LTE CAT M1 solution

    NarrowBand-Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency, especially in deep coverage. Battery life of more than 10 years can be supported for a wide range of use cases.

    New physical layer signals and channels are designed to meet the demanding requirement of extended coverage – rural and deep indoors – and ultra-low device complexity. The initial cost of the NB-IoT modules is expected to be comparable to GSM/GPRS. The underlying technology is however much simpler than today’s GSM/GPRS and its cost is expected to decrease rapidly as demand increases.

    Arduino is an open-source electronics platform based on easy-to-use hardware and software, it is an easy tool for fast prototyping, aimed at students without a background in electronics and programming. As soon as it reached a wider community, the Arduino board started changing to adapt to new needs and challenges, differentiating its offer from simple 8-bit boards to products for IoT applications, wearable, 3D printing, and embedded environments. All Arduino boards are completely open-source, empowering users to build them independently and eventually adapt them to their particular needs. The software, too, is open-source, and it is growing through the contributions of users worldwide.

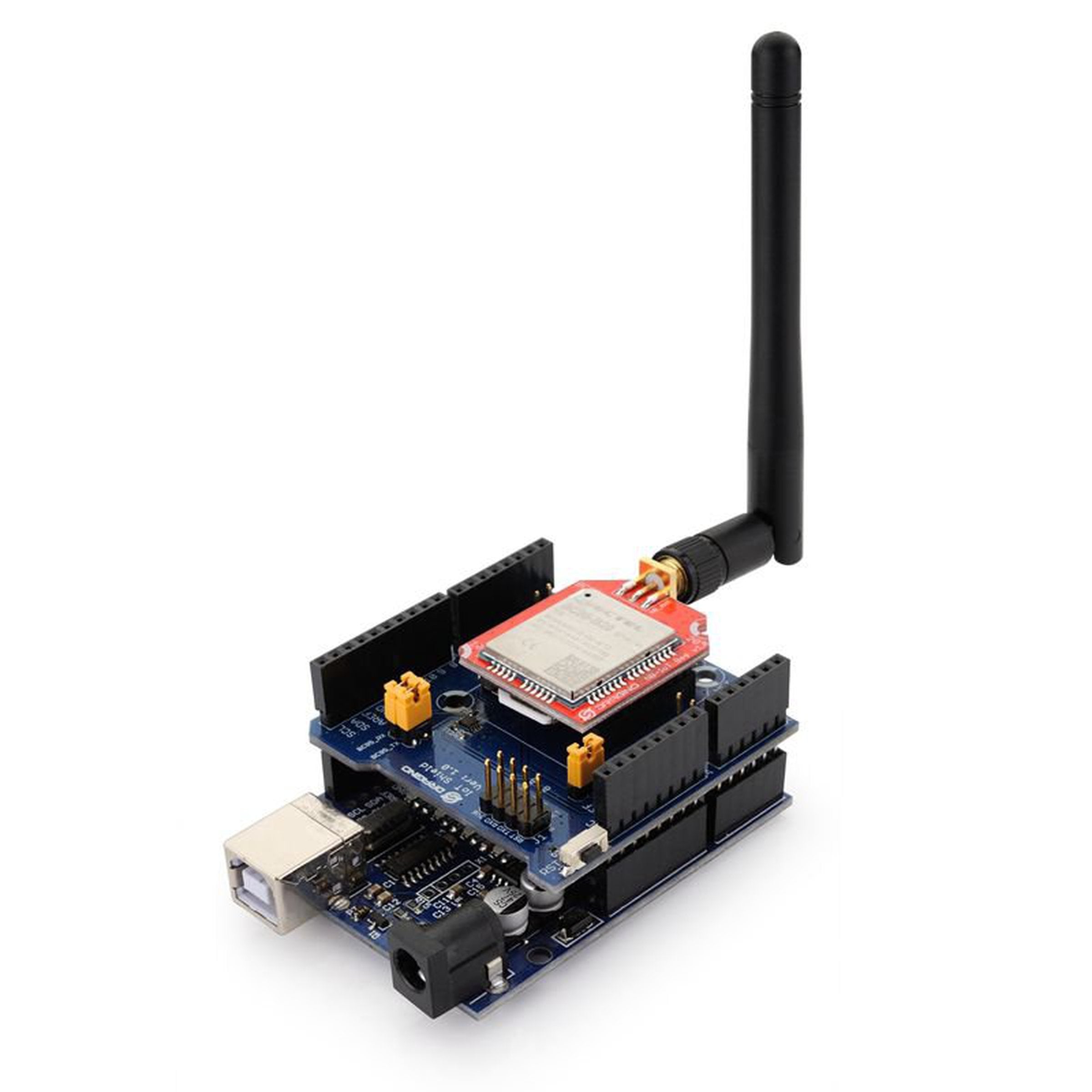

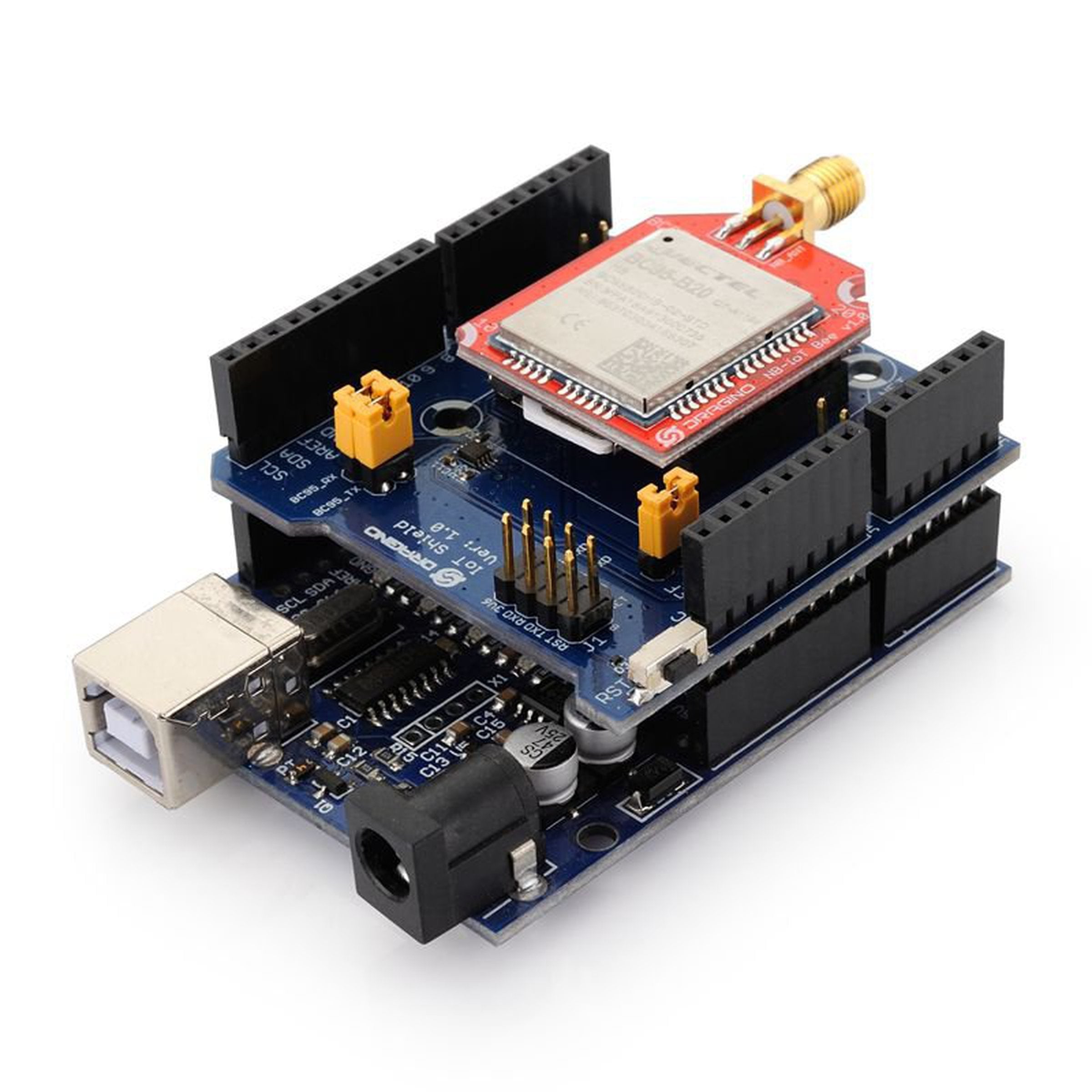

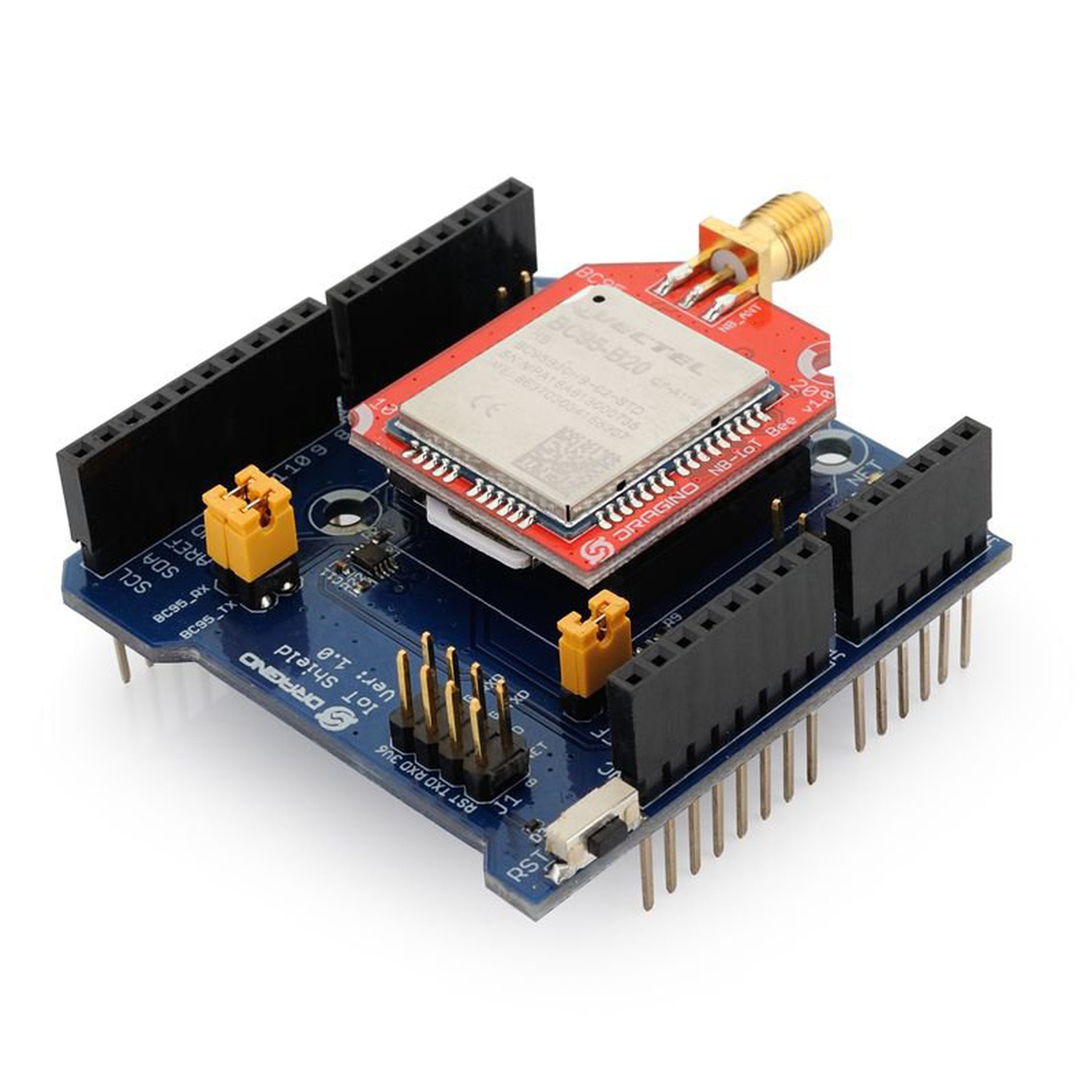

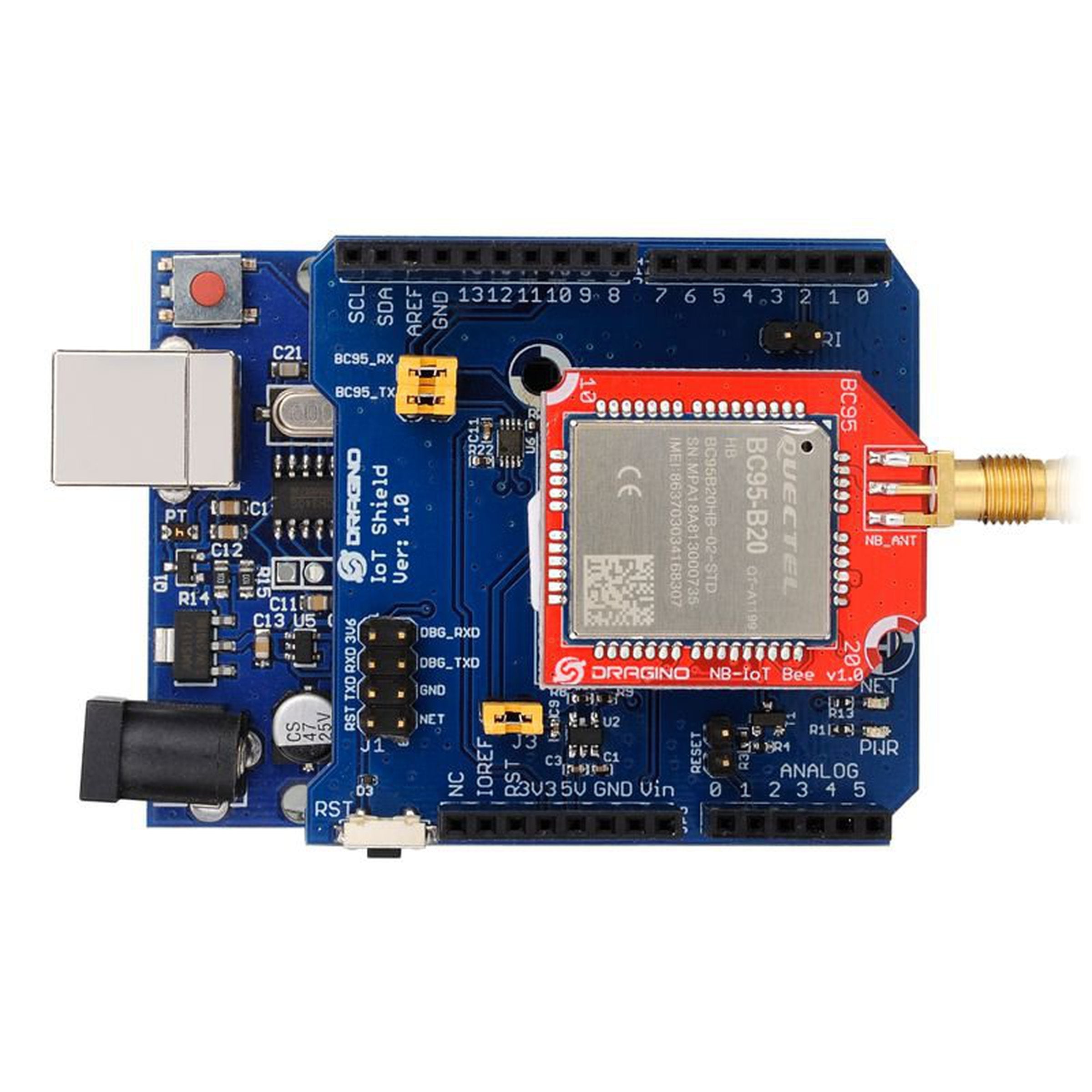

    NB-IoT Shield is an expansion board for Arduino to add NB-IoT technology. With NB-IoT Shield and Arduino, user can study/evaluate and do POC for NB-IoT solution rapidly.

    The NB-IoT Shield is loaded with offshore NB-IoT module. include:

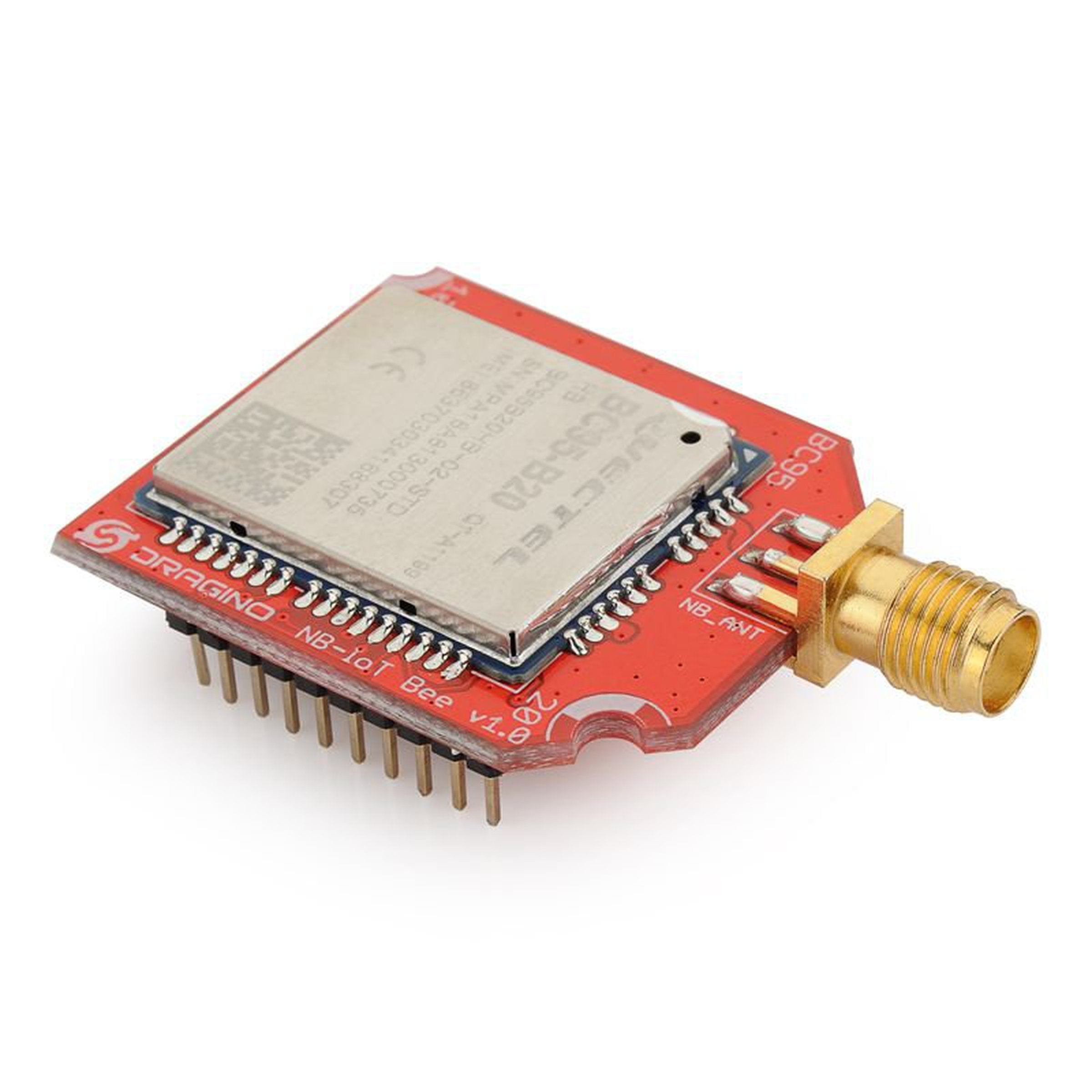

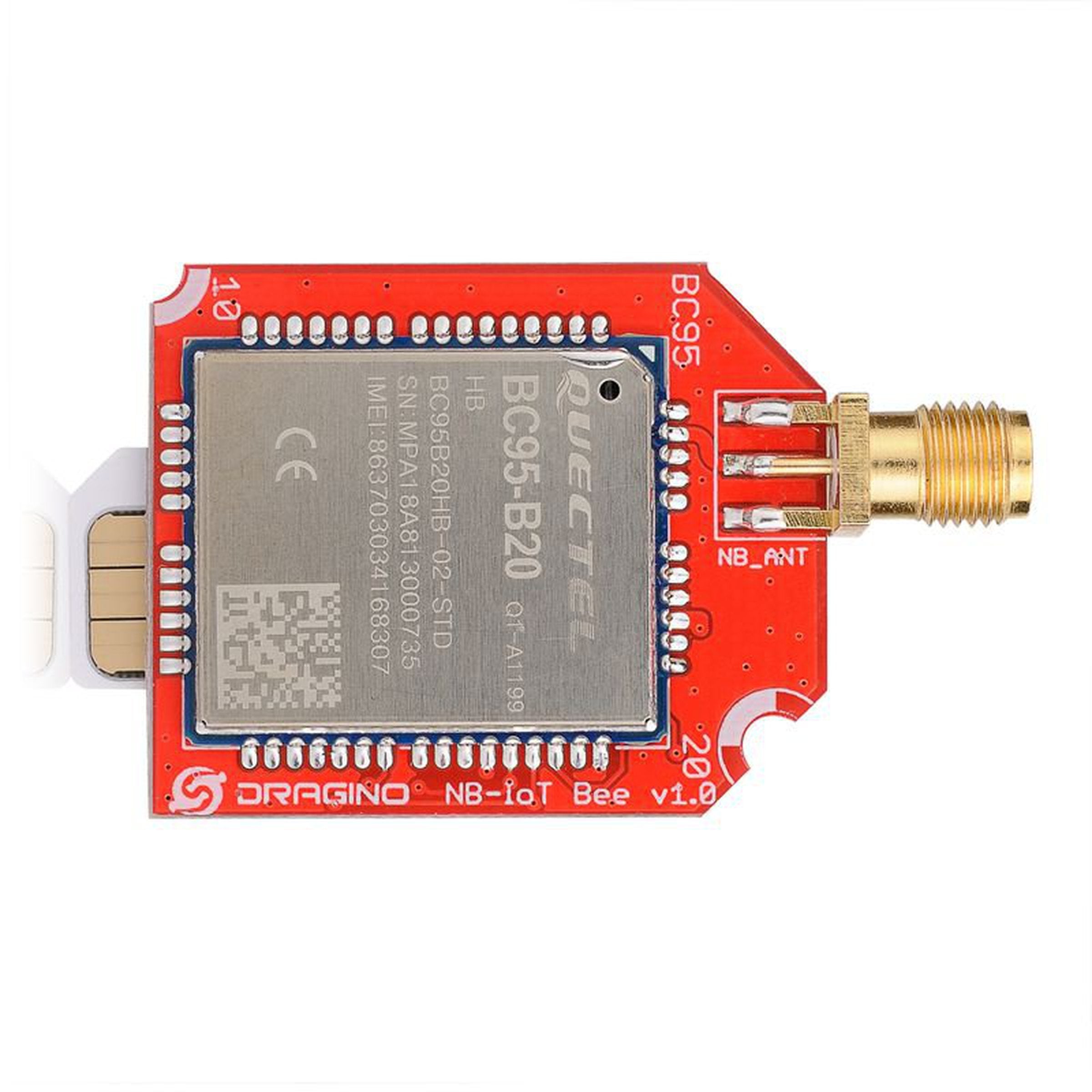

    Nb-IoT Shield QB05, QB08, QB20, they use Quectel BC95 module. The module is designed for only use in NB-IoT network. and difference suffix reference to different NB-IoT Band.

    Nb-IoT Shield QG96, it uses Quectel BG96 module. This module supports mutli-bands for NB-IoT. Except for NB-IoT, It also supports LTE Cat M1 & EGPRS.

    Features:

    • Support different NB-IoT Bands, can use world widely

    • Low power consumption

    • Wide area coverage

    • AT command to controlAuto support 3.3v or 5v Arduino board

    • Compatible with Arduino Leonardo, Uno, Mega2560, DUE… etc

    Applications:

    • Smart metering (electricity, gas and water

    • Facility management services

    • Intruder and fire alarms for homes & commercial properties

    • Connected personal appliances measuring health parameters

    • Tracking of persons, animals or objects

    • Smart city infrastructure such as street lamps or dustbins

    • Connected industrial appliances such as welding machines or air compressors

    Specifications

    • Output Power: 23dBm

    • Sensitivity : -129dBm

    • Operation Temperature: -40°C ~ +85°C

    • Input Vcc: 4.5v ~ 5.5v

    • Micro SIM Interface

    Package Includes:

    • 1 x NB-IoT Shield

    • 1 x NB-IoT Antenna

    Documents:

    Datasheet

    User Manual and Case Study

    Other Dragino Documentations
