Dragino NB-IoT NMDS200 NB-IoT Microwave Radar Distance Detection Sensor

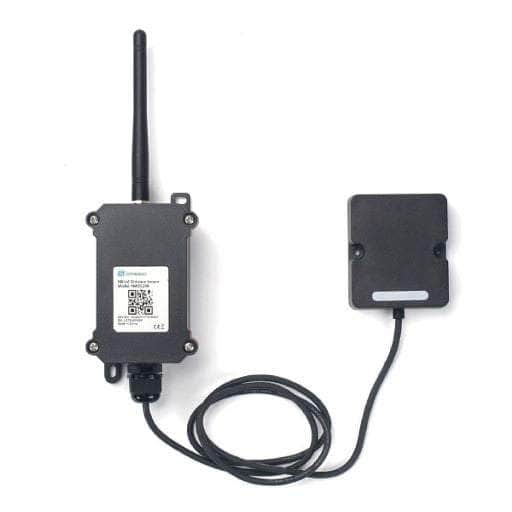

NMDS200 NB-IoT Microwave Radar Distance Detection Sensor

  • $249.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    NMDS200 NB-IoT Microwave Radar Distance Detection Sensor

    The Dragino NMDS200 is a NB-IoT Microwave Radar distance sensor. It uses 24Ghz Microwave to detect the distance between sensor and different objects. Compare vs ultrasonic or Lidar measurement method, Microwave Radar is more reliable for condensation / dusty environment. It can sense correct distance even there is water or thick dust on top of the sensor.

    The NMDS200 can be applied to scenarios such as horizontal distance measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, etc.

    NMDS200 can measure two distances: the closest object and next object behind the closest one.

    NMDS200 supports Alarm Feature, user can set the NMDS200 to uplink data in a short interval when the distance is out of configured range.

    NarrowBand-Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT significantly improves the power consumption of user devices, system capacity, and spectrum efficiency, especially in deep coverage.

    NMDS200 supports different uplink methods including TCP, MQTT, UDP, and CoAP for different application requirements.

    NMDS200 is powered by 8500mAh Li-SOCI2 battery, It is designed for long-term use of up to 5 years. (Actually Battery life depends on the use environment, update period & uplink method)

    To use NMDS200, user needs to check if there is NB-IoT coverage in the field and with the Nb-IoT bands that NMDS200 supports. If local operator support it, user needs to get a NB-IoT SIM card from the operator and install into NMDS200 to get NB-IoT network connection.

    Features:

    • NB-IoT Bands: B1/B3/B8/B5/B20/B28 @H-FDD
    • Ultra-low power consumption
    • Microwave Radar for distance detection
    • Measure Range: 0.5m ~ 20m
    • Accuracy: ±10cm
    • Horizontal Angel: 78°
    • Vertical Angel: 23°
    • Short uplink interval for Distance Alarm
    • Monitor Battery Level
    • AT Commands to change parameters
    • Uplink on periodically
    • Downlink to change configure
    • 8500mAh Battery for long term use
    • Wall Mountable
    • Outdoor Use
    • Micro SIM card slot for NB-IoT SIM

    Applications:

    • Horizontal distance measurement
    • Liquid level measurement
    • Parking management system
    • Object proximity and presence detection
    • Intelligent trash can management system
    • Robot obstacle avoidance
    • Automatic control, sewer
    • Bottom water level monitoring

    Specifications:

    Common DC Characteristics:

    • Supply Voltage: 2.1v ~ 3.6v
    • Operating Temperature: 0 ~ 70°C

    NB-IoT Spec:

    • B1 @H-FDD: 2100MHz
    • B3 @H-FDD: 1800MHz
    • B8 @H-FDD: 900MHz
    • B5 @H-FDD: 850MHz
    • B20 @H-FDD: 800MHz
    • B28 @H-FDD: 700MHz
