Non-Invasive AC Current Sensor SCT013 20A 1V

Description

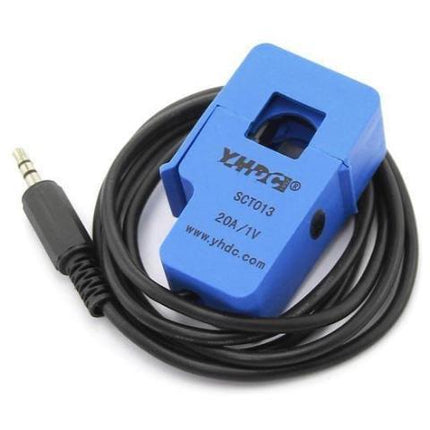

Non-Invasive AC Current Sensor SCT013 20A 1V

Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).

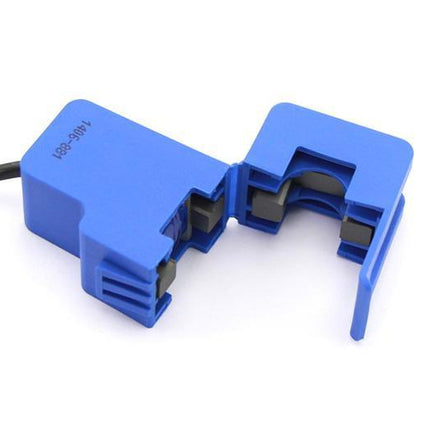

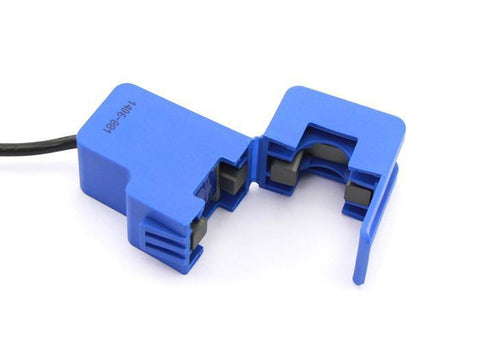

The split core type such as the CT in the picture above is particularly suitable for DIY use it can be clipped straight onto either the live or neutral wire coming into the building without having to do any high voltage electrical work.

     Applications

  •  Suitable for the current measuring

  •   Monitoring and protection of AC motor

  •   Lighting equipment

  •   Air compressor

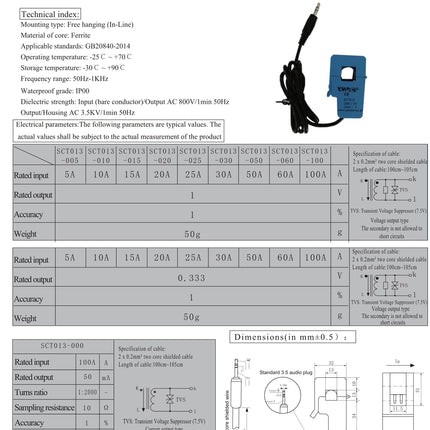

Specification

  • Open Size: 13mm x 13mm
  •  Leading Wire in Length: 1m
  •  Dielectric Strength(between shell and output): 1000V AC/1min 5mA
  •  Work Temperature: -25°C ~ ﹢70°C
  •  Resistance Grade: Grade B
  •  Build-in sampling resistance（RL): 93Ω
  •  Non-linearity: ±3%
  •  Output Mode: 0~1V
  •  Input Current: 0~20A AC
  •  Fire resistance property: in accordance with UL94-VO

  •  Turns Ratio: 1800:1

Read more

Non-Invasive AC Current Sensor SCT013 20A 1V

Product form
Free pickup in our shop(s)

SKU: 101990061

$25.00 $20.00 Excl. GST

$25.00 $20.00
Product available in stock, Ships same business day.

    • We ship from our stock in AU (Perth), pickup by prior order/booking
    • We offer Price Match & Quantity Discounts for Large Orders
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
    • We ship the same day via express post for all items in stock

    Description

    Non-Invasive AC Current Sensor SCT013 20A 1V

    Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).

    The split core type such as the CT in the picture above is particularly suitable for DIY use it can be clipped straight onto either the live or neutral wire coming into the building without having to do any high voltage electrical work.

         Applications

    •  Suitable for the current measuring

    •   Monitoring and protection of AC motor

    •   Lighting equipment

    •   Air compressor

    Specification

    • Open Size: 13mm x 13mm
    •  Leading Wire in Length: 1m
    •  Dielectric Strength(between shell and output): 1000V AC/1min 5mA
    •  Work Temperature: -25°C ~ ﹢70°C
    •  Resistance Grade: Grade B
    •  Build-in sampling resistance（RL): 93Ω
    •  Non-linearity: ±3%
    •  Output Mode: 0~1V
    •  Input Current: 0~20A AC
    •  Fire resistance property: in accordance with UL94-VO

    •  Turns Ratio: 1800:1

    Read more
