NVIDIA Jetson AGX Orin 64GB Smallest and most Powerful AI Edge Computer
NVIDIA Jetson AGX Orin 64GB Smallest and most Powerful AI Edge Computer
NVIDIA® Jetson AGX Orin™ 64GB Developer Kit, provides a giant leap forward for Robotics and Edge AI. With up to 275 TOPS of AI performance and power configurable between 15W and 50W, you now have more than 6X the performance of NVIDIA® Jetson AGX Xavier™ in the same compact form-factor for developing advanced robots and other autonomous machine products.
The newest member of the Jetson Family, NVIDIA® Jetson AGX Orin™ Developer Kit, provides a giant leap forward for Robotics and Edge AI. With up to 275 TOPS of AI performance and power configurable between 15W and 50W, you now have more than 8X the performance of NVIDIA® Jetson AGX Xavier™ in the same compact form-factor for developing advanced robots and other autonomous machine products.
With Jetson AGX Orin, developers can now deploy large and complex models to solve problems like natural language understanding, 3D perception, and multi-sensor fusion.
Features
- Most powerful AI computer for energy-efficient autonomous machines: up to 275 TOPS, power configurable between 15W and 60W, supports multiple concurrent AI inference pipelines, plus high-speed interface support for multiple sensors.
- Giant Leap forward compared to Jetson AGX Xavier: 8 times AI performance in the same compact form-factor, built with new NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 tensor cores, 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2+6MB L3
- Supports multiple concurrent AI inference pipelines with onboard 64GB eMMC, 204 GB/s of memory bandwidth, and 64 GB of DRAM.
- High-speed interface support for multiple sensors: 22 lanes of PCIe Gen4, Gigabit Ethernet, 4 XFI interfaces for 10 Gigabit Ethernet, a Display Port, 16 lanes of MIPI CSI-2, USB3.2 interfaces, and 40-pin header.
- Support Jetpack 5.0 installs Ubuntu 20.04 and supports entire NVIDIA JetPack™ and use-case-specific software platforms including Isaac for robotics, and Metropolis for smart cities.
Applications:
Supported by NVIDIA JetPack™ and use-case-specific software platforms including Isaac for robotics, and Metropolis for smart cities, this developer kit provides everything you need to get started right away.
In the specification sheet, NVIDIA made an inference time comparison.
Jetson AGX Orin series |
||
NVIDIA® Jetson AGX Orin™ 64GB Developer Kit |
|
|
AI Performance |
275 TOPS |
|
GPU |
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores |
|
GPU Max Frequency |
1.3 GHz |
|
CPU |
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
|
CPU Max Frequency |
2.2 GHz |
|
DL Accelerator |
2x NVDLA v2 |
|
DLA Max Frequency |
1.6 GHz |
|
Vision Accelerator |
1x PVA v2 |
|
Safety Cluster Engine |
- |
|
Memory |
64GB 256-bit LPDDR5 204.8GB/s |
32GB 256-bit LPDDR5 204.8GB/s |
Storage |
64GB eMMC 5.1 |
|
Video Encode |
2x 4K60 (H.265) 4x 4K30 (H.265) 8x 1080p60 (H.265) 16x 1080p30 (H.265) |
|
Video Decode |
1x 8K30 (H.265) 3x 4K60 (H.265) 7x 4K30 (H.265) 11x 1080p60 (H.265) 22x 1080p30 (H.265) |
|
CSI Camera |
16-lane MIPI CSI-2 connector |
|
PCIe |
x16 PCIe slot supporting x8 PCIe Gen4 M.2 Key M slot with x4 PCIe Gen4 M.2 Key E slot with x1 PCIe Gen4 |
|
USB |
USB Type-C connector: 2x USB 3.2 Gen2 USB Type-A connector: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 USB Micro-B connector: USB 2.0 |
|
Networking |
RJ45 connector with up to 10 GbE |
|
Display |
1x DisplayPort 1.4a (+MST) connector |
|
Other I/O |
40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC batter backup connector microSD slot DC power jack Power, Force Recovery, and Reset buttons |
|
Power |
15W - 60W |
|
Mechanical |
110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution) |
Getting Started with the NVIDIA Jetson AGX Orin Developer Kit
NVIDIA Jetson-powered Edge AI platform at Seeed
Join Seeed as Edge AI Partner, Deliver Real-World AI Together
We are looking forward to working with AI experts, software enterprises, and system integrators:
- Integrating your unique technology, resell or co-brand licensed solution with us.
- Building next-gen AI products powered by the NVIDIA Jetson module, one-stop bringing your product to the market with Seeed’s manufacturing, fulfillment, and distribution.
- Working with Seeed Amazing Ecosystem Partners together, unlocking more AI possibilities.

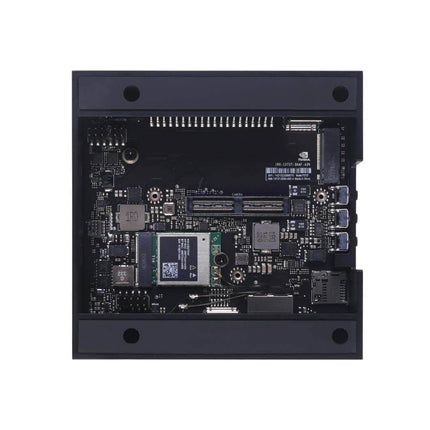

Jetson AGX Orin Reference Carrier Board
Camera |
16 lane MIPI CSI-2 connector |
PCIe |
x16 PCIe slot supporting x8 PCIe Gen4 |
RJ45 |
Up to 10 GbE |
M.2 Key M |
x4 PCIe Gen 4 |
USB Type-C |
2x USB 3.2 Gen2 with USB-PD support |
USB Type-A |
4x USB 3.2 Gen2 |
USB Micro-B |
USB 2.0 |
DisplayPort |
DisplayPort 1.4a (+MST) |
microSD slot |
UHS-1 cards up to SDR104 mode |
Other |
40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC) 12-pin automation header10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC battery backup connector DC power jack Power, Force Recovery, and Reset buttons |
Dimensions |
110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution) |
