PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5

  • $99.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5

    Compatible With Multiple SIMCom/Quectel 4G/5G Modules With M.2 Key B Interface

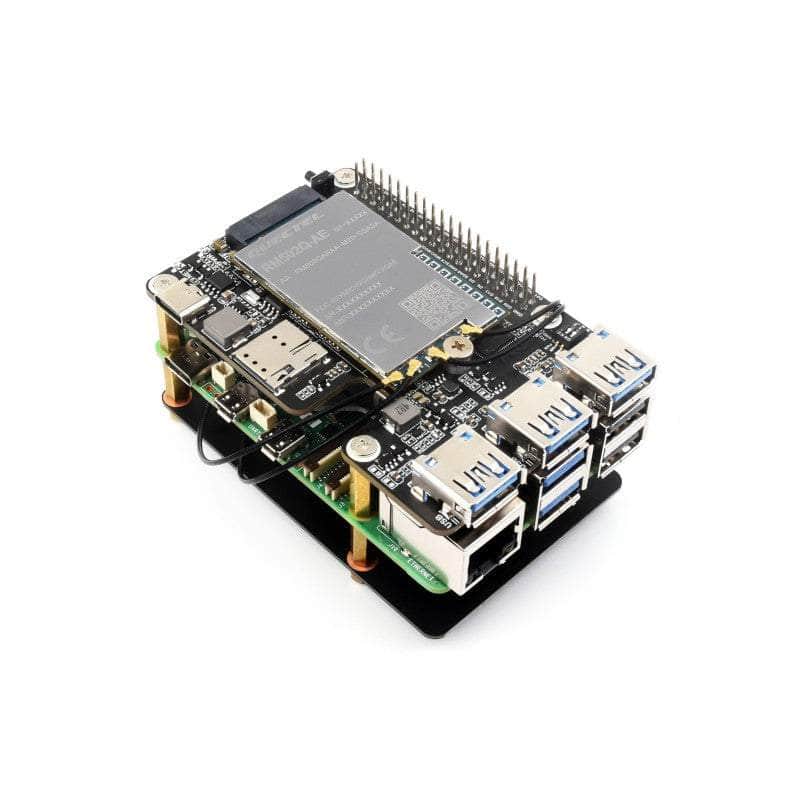

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, front view, connecting with Raspberry Pi 5

    * for reference only, the Raspberry Pi 5 and 5G module are NOT included.

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, features

    Features:

    • Designed for Raspberry Pi 5, HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion
    • Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals
    • Onboard M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages
    • Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input
    • Onboard power monitoring chip for real-time measurement of voltage, current and power
    • Onboard SIM card slot for NANO-SIM card
    • Onboard Reset button, Power and Network indicators for easy debugging and monitoring the operating status
    • Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation
    • Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation

    Designed For Raspberry Pi 5, HAT+ Standard

    Onboard PCIe Interface For Directly Connecting To Raspberry Pi 5 Via 16PIN Cable

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, connecting to Raspberry Pi 5

    More USB Capability For Raspberry Pi 5

    Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, extends 3x high speed USB 3.2 Gen1 ports
    Compatible With Multiple SIMCom/Quectel 4G/5G Modules With M.2 Key B Interface

    Onboard M.2(NGFF) Key B Slot, Tested To Support SIM7600XX-M.2, SIM82XX And RM5XX Series Modules, Compatible With 3042/3052 Packages

    Multi-System Support

    Supports Systems Such As Raspberry Pi OS, Ubuntu, OpenWRT, Etc.

    Raspberry Pi OS

     PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, supports Raspberry Pi OS

    OpenWRT

     PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, supports OpenWRT

    Ubuntu

     PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, supports Ubuntu


    Comes With 5G-4IN1-PCB Antenna

    Supports Top And Bottom Mounting, Easy To Install, Good Communication Effect

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 with 5G-4IN1-PCB Antenna on the bottom

    Install on the Bottom


    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 with 5G-4IN1-PCB Antenna on the top

    Install on the Top

    * for reference only, please refer to the Package Content for detailed part list



    Onboard Power Monitoring Chip And EEPROM

    For Real-Time Monitoring Voltage, Current And Power Of Module Via I2C
    Supports Saving HAT+ ID And Product Information, Compatible With HAT+ Standard

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 with onboard power monitoring chip and EEPROM


    Reserved Airflow Vent For Cooling Fan

    More Airflow For Pi5, Faster Cooling Effect, More Stable Operation

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 with reserved airflow vent for cooling fan


    How To Install

    how to install PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5


    What's On Board

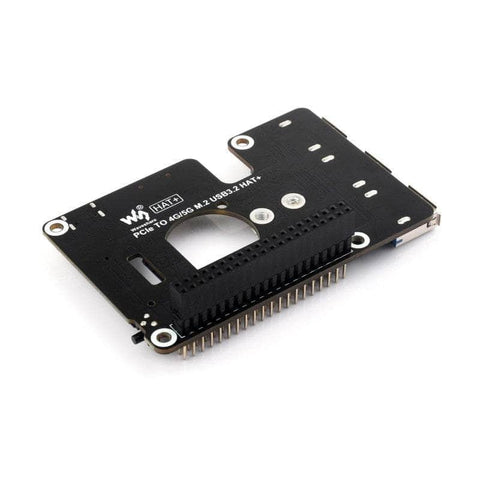

    PCIe to M.2 4G/5G And USB 3.2 HAT, onboard components
    1. VL805
      PCIe to USB 3.2 Gen1 HUB chip
    2. EEPROM
      for saving HAT ID and product information
    3. INA219
      Power monitoring chip
    4. 16PIN PCIe interface
      for connecting to the PCIe interface of Raspberry Pi 5
    5. M.2(NGFF) Key B slot
      Compatible with 3042/3052 packages M.2 4G/5G modules
    6. Raspberry Pi GPIO header
      for connecting Raspberry Pi 5
    7. USB 3.2 Gen1 expanded ports
      USB1~USB3

    1. Nano SIM card slot
      for installing Nano-SIM card
    2. Type-C interface
      for 4G/5G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
    3. DIP switch
      for switching to use GPIO pins to control power on/off and reset of the module
    4. Reset button
      Press it to reset the module
    5. PWR indicator
      Power indicator
    6. NET indicator
      Module Network status indicator


    Pinout Definition

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, pinout definition


    Outline Dimensions

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, outline dimensions
