Phidget Circular Touch - 1016_0

  • $59.00
  • Save $10
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

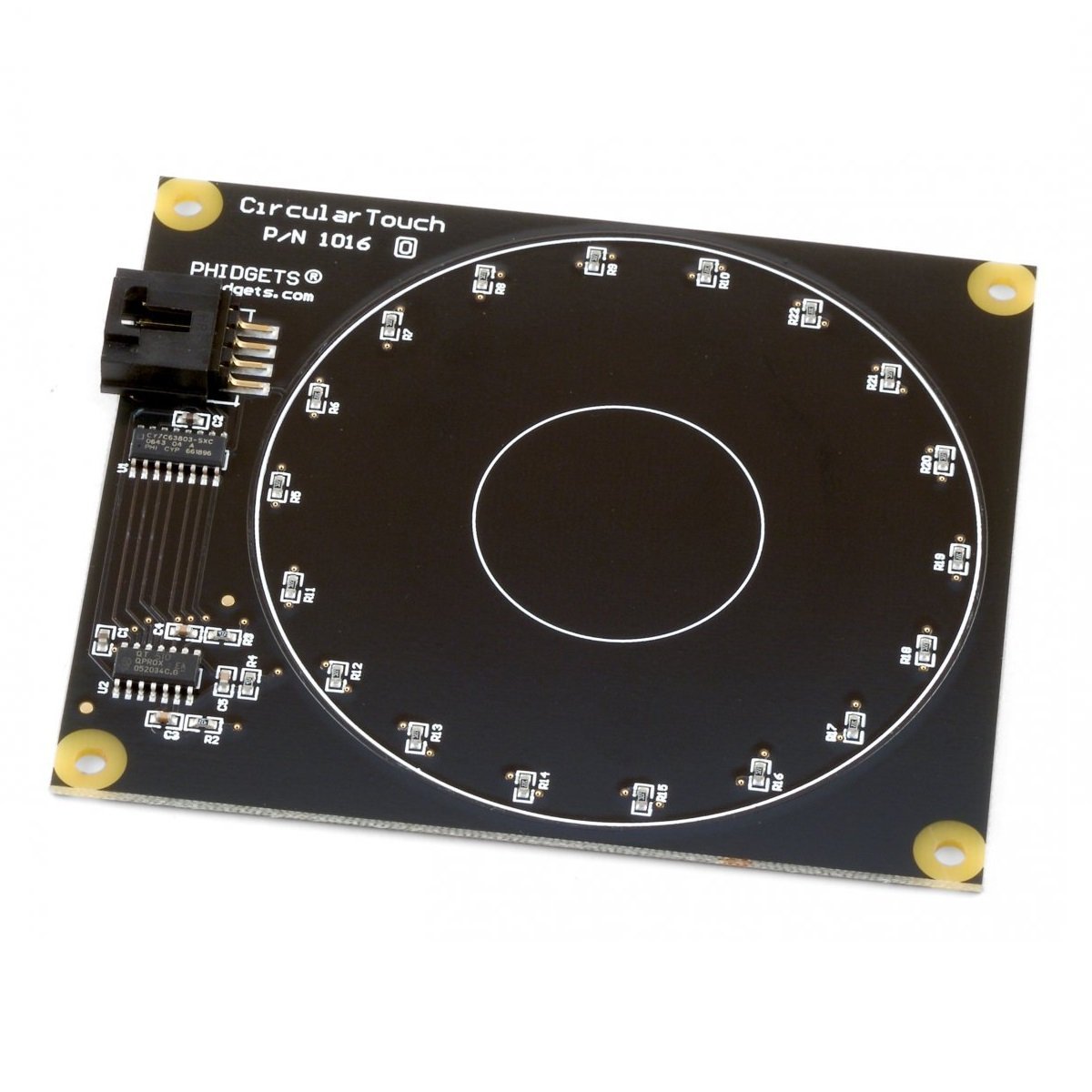

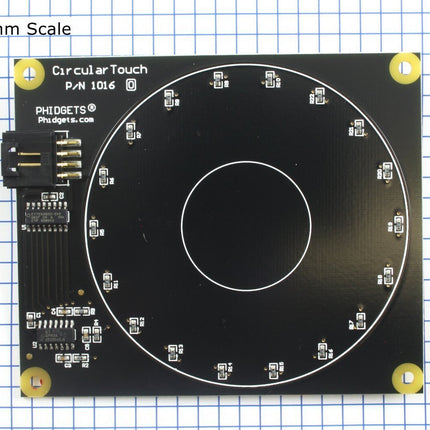

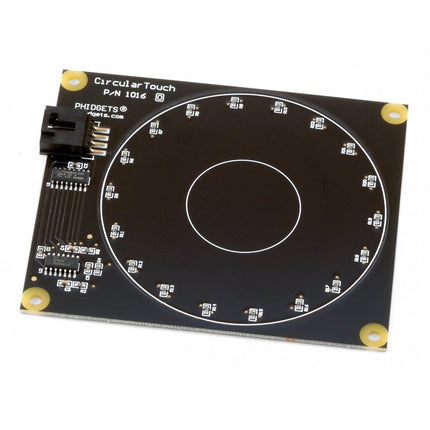

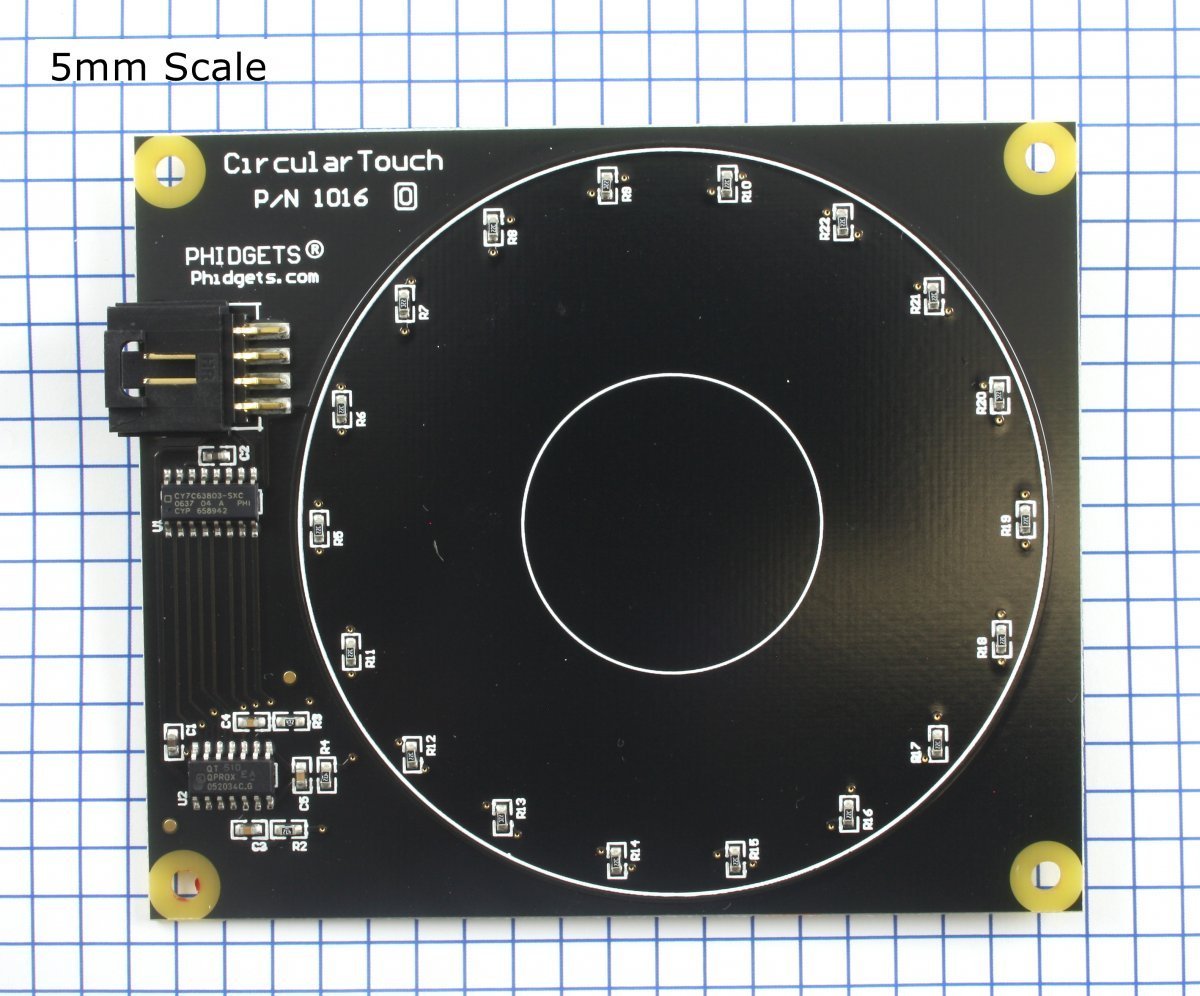

  • Phidget Circular Touch - 1016_0

    This touch wheel recognizes both contact and proximity. Connects directly to a USB port.

    The PhidgetCircularTouch detects changes in the capacitance between the on-board electrodes and the object making contact. The side of the circuit board opposite the connector and components is the side intended for contact.

    The 1016 can be mounted behind a sheet of glass or plastic; The recommended thickness is 1/8 inch. Use Silicon adhesive when attaching the Phidget to the material; standing the PhidgetCircularTouch off or creating space between the separation material and the Phidget can cause false-triggering to occur. Materials thicker than 1/8” may work, but will require a larger surface area of contact to ensure proper triggering (i.e.: two fingers instead of one).

    Sliding a finger along the touch sensor varies the Analog Input 0 value from 0V to 5V in approximately 125 discrete steps. When the finger is removed, the final measured value is retained. Two Digital Inputs are used to convey additional information: Digital Input 0 is True when contact is made with the Phidget, and Digital Input 1 is True when a finger or object comes in close proximity to the board. The Analog Input value is valid when both Digital Inputs are true.

    The PhidgetCircularTouch connects directly to your computer via USB, and behaves like an InterfaceKit in software.


    Comes packaged with

    Product Specifications

    Sensor Properties
    API Object Name HumanInput
    Controlled By USB (Mini-USB)
    Sensor Type Touch (Capacitive)
    Detecting Distance Max 10 mm
    Electrical Properties
    Current Consumption Max 36 mA
    USB Speed Low Speed
    Physical Properties
    Operating Temperature Min 0 °C
    Operating Temperature Max 70 °C
