Phidget RFID Tag - Bird Leg Ring Black - 3914
Phidget RFID Tag - Bird Leg Ring Black - 3914
Ever heard of animal tagging? Here's how they do it. Designed for mid-sized birds like a chicken. Uses EM4102 protocol.

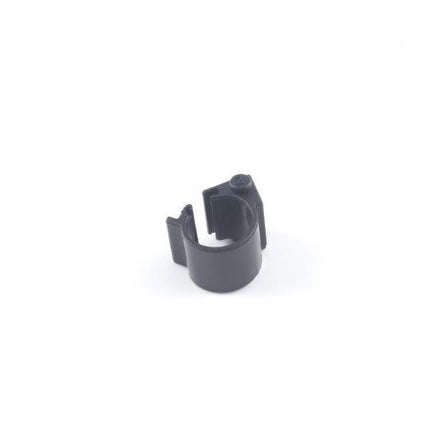

A small plastic ring RFID tag. The clip is closed by hand and cannot be reopened. It is designed to attach to a bird's leg or other narrow tubes. The tag contains a unique ID that can be read by the 1024 – RFID reader at a distance of 5cm or less.
Product Specifications
Tag Properties | |
---|---|
Protocol | EM4102 |
Tag Characteristics | Passive, Read-Only |
Transmission Frequency | 125 kHz |
Encoding Method | Manchester |
Message Length | 64 bit |
Unique ID Length | 40 bit |
Typical Read/Write Distance (with 1024 - PhidgetRFID R-W) |
50 mm |
Physical Properties | |
Material | Nylon Fibre |
Color | Black |
Diameter | 10.5 mm |
Hole Diameter | 8.8 mm |
Thickness | 950 μm |
Weight | 1.2 g |
IP Rating | IP68 |
