Phidget RFID Tag - Credit Card Sized - 3008
Phidget RFID Tag - Credit Card Sized - 3008

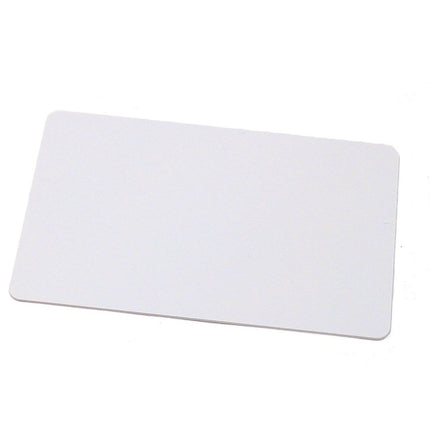

This basic RFID Tag is used mostly as an identity card. The card comes with a 40-bit unique ID and cannot be re-programmed. This is a slightly flexible, blank, white card with a gloss finish.
Product Specifications
Tag Properties | |
---|---|
Protocol | EM4102 |
Tag Characteristics | Passive, Read-Only |
Transmission Frequency | 125 kHz |
Encoding Method | Manchester |
Message Length | 64 bit |
Unique ID Length | 40 bit |
Typical Read/Write Distance (with 1024 - PhidgetRFID R-W) |
110 mm |
Physical Properties | |
Material | PVC |
Color | White Glossy |
Thickness | 840 μm |
Length | 85.6 mm |
Width | 54 mm |
Weight | 5.6 g |
IP Rating | IP67 |
