Phidget Spatial 0/0/3 Basic - 3 Axis Accelerometer ±8g

  • $69.00
  • Save $10
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

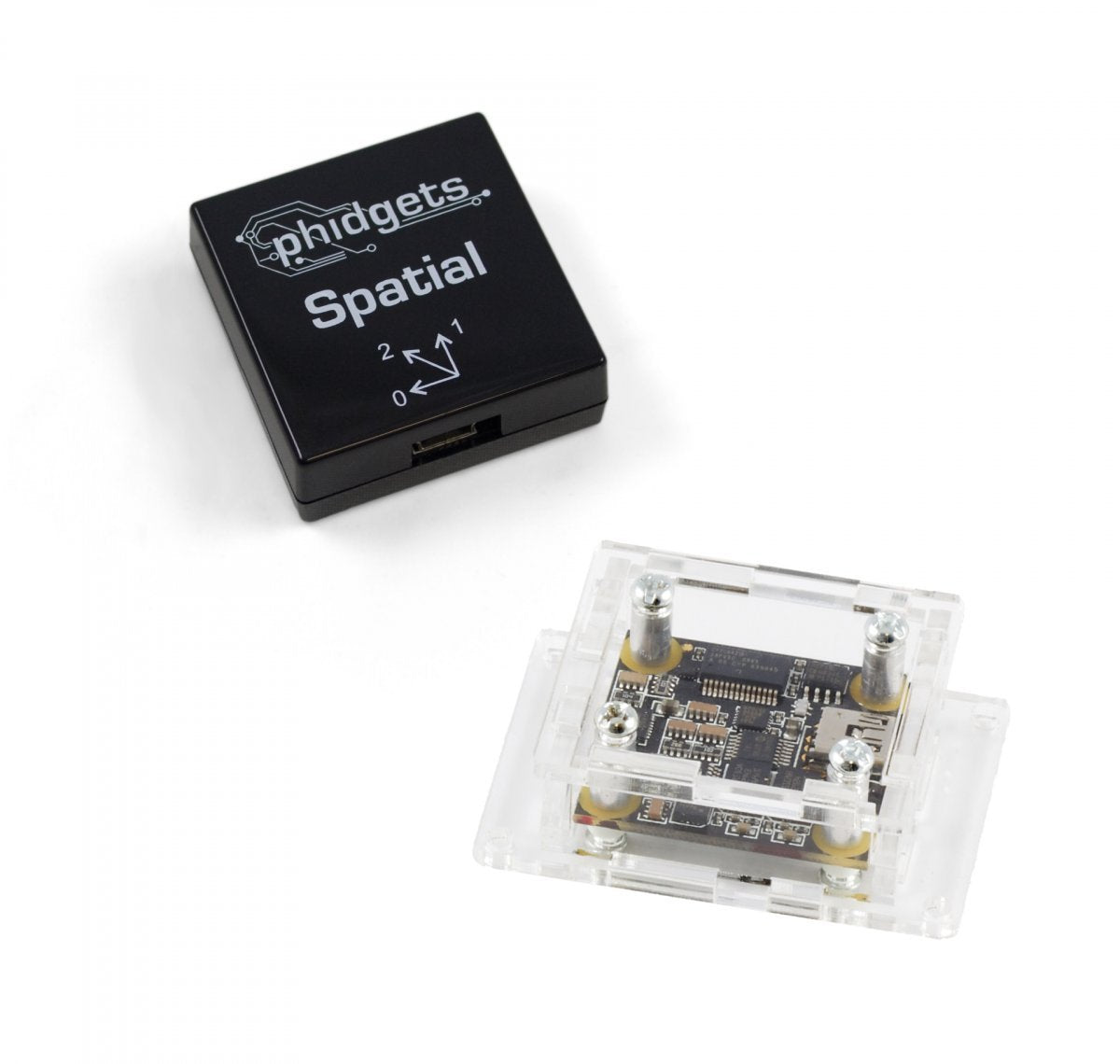

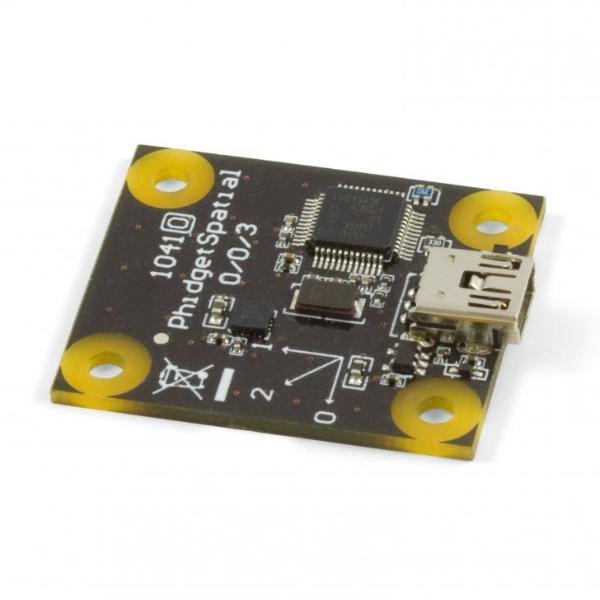

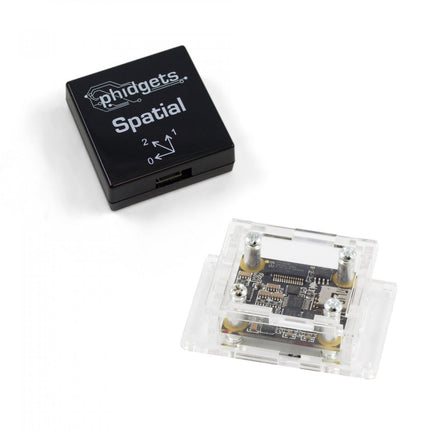

  • Phidget Spatial 0/0/3 Basic - 3 Axis Accelerometer ±8g

    The PhidgetSpatial 0/0/3 is a 3-axis accelerometer that can measure up to ±8g of acceleration in each axis. It is an inexpensive alternative to the 1043 - PhidgetSpatial Precision 0/0/3, and is ideal for applications where it's more important to know the direction of acceleration than the precise amount.

    The 1041 could be used to:

    • Track whether an object is moving, and in which direction
    • Detect the presence of nearby movement or vibration
    • Track the orientation of a stationary object relative to the earth's gravitational pull

    Comes Packaged with

    Product Specifications

    Acceleration Measurement Max ± 8 g
    Acceleration Measurement Resolution 976.7 μg
    Accelerometer White Noise σ 2.5 mg
    Accelerometer Minimum Drift σ 23.1 μg
    Accelerometer Optimal Averaging Period 76 s
    Controlled By USB
    API Object Name Accelerometer
    Current Consumption Max 30 mA
    Sampling Speed Min 1 s/sample
    Sampling Speed Max 1 ms/sample
    Sampling Speed Min (Webservice) 1 s/sample
    Sampling Speed Max (Webservice) 16 ms/sample
    Analog to Digital Converter Resolution 16 bit
    USB Voltage Min 4.4 V DC
    USB Voltage Max 5.3 V DC
    USB Speed Full Speed
    Operating Temperature Min -40 °C
    Operating Temperature Max 85 °C



    Library & Driver Downloads
