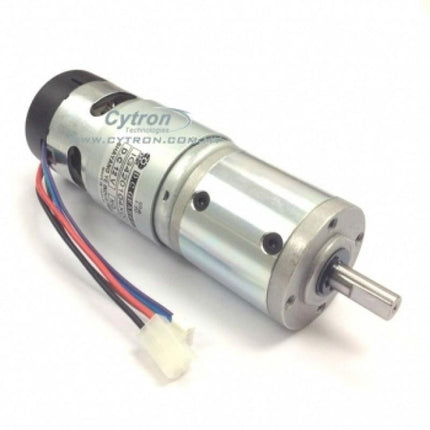

Planetary DC Geared Motor (42mm) 4:1 - IG42E-104K

Description

Planetary DC Geared Motor (42mm) 4:1 - IG42E-104K

Pleanetary geared motor is always well known with its less backlash and higher efficiency characteristic to meet the higher requiment. This planetary geared motor is manufactured by an establish Taiwanese motor company to ensure the motor's quality and durability.

This 42mm diameter model is even more powerful than the 32mm models to fit your high torque needs.

It also comes with a 5 pulses per rotation, single channel output to provide real time feedback on the rotating position.

Specification:
  • Voltage: 12VDC
  • Rated Torque: ~2.24 kg.cm (0.22 N.m)
  • Rated Speed: 1400 RPM
  • Rated Current: 5500mA
  • Rated Power output: 41.3W
  • Weight: 360g
  • Shaft: 8.0 mm diameter x 20.0 mm length
  • Motor dimension (w x l x h): 45.0 mm x 45.0 mm x 118.5 mm, detailed drawing
  • Compatible motor driver:
  • Gear ratio: 4:1
  • Encoder Output: 20 pulses per rotation, single channel output
  • Brushed motor type
Attachment:



Planetary DC Geared Motor (42mm) 4:1 - IG42E-104K

Product form
Free pickup in our shop(s)

SKU: IG42E-04K

$99.00 $89.00 Excl. GST

$89.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    Planetary DC Geared Motor (42mm) 4:1 - IG42E-104K

    Pleanetary geared motor is always well known with its less backlash and higher efficiency characteristic to meet the higher requiment. This planetary geared motor is manufactured by an establish Taiwanese motor company to ensure the motor's quality and durability.

    This 42mm diameter model is even more powerful than the 32mm models to fit your high torque needs.

    It also comes with a 5 pulses per rotation, single channel output to provide real time feedback on the rotating position.

    Specification:
    • Voltage: 12VDC
    • Rated Torque: ~2.24 kg.cm (0.22 N.m)
    • Rated Speed: 1400 RPM
    • Rated Current: 5500mA
    • Rated Power output: 41.3W
    • Weight: 360g
    • Shaft: 8.0 mm diameter x 20.0 mm length
    • Motor dimension (w x l x h): 45.0 mm x 45.0 mm x 118.5 mm, detailed drawing
    • Compatible motor driver:
    • Gear ratio: 4:1
    • Encoder Output: 20 pulses per rotation, single channel output
    • Brushed motor type
    Attachment:
