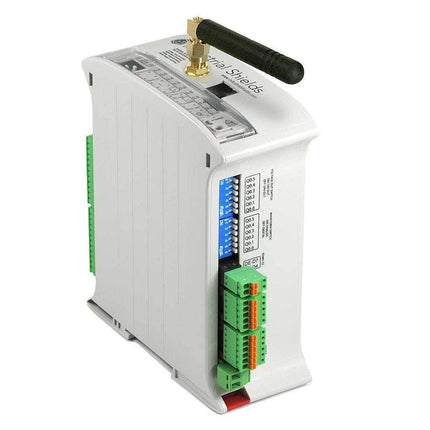

PLC Arduino ARDBOX 20 I/Os Relay & LoRa 915Mhz - Open Industrial PLC

Description

PLC Arduino ARDBOX 20 I/Os Relay & LoRa 915Mhz - Open Industrial PLC

8 Inputs
7 Outputs
Communications: USB, Full/Half Duplex RS485, RS232, I2C, Modbus RTU
LoRa

Get into Industrial Internet of Things with Industrial Shields PLC's, All Equipped with Original Arduino Boards and LoRa communication

RTC, µSD, Ethernet, LoRa, USB-B, Full/Half Duplex RS485, RS232, I2C, Modbus

  • 8 Inputs (5 to 24Vdc):

    (7x) Analog (0-10Vdc) / Digital (5-24Vdc) configurable by software.
    (1x) Digital Isolated (5-24Vdc).

  • 7 Outputs (5 to 24Vdc):

    (7x) Relay Outputs ( 240 VAC - 5A)

  • Arduino microcontroller included
  • Offers immense safety through Industrial Communication mechanism
  • Compact design with DIN rail mounting

This is the first equipment based on the Arduino technology designed for a professional use. This PLC has 21I/Os. It also contains several communication ports which provide more flexibility and control. The M-DUINO family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

Programming Software
This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

Instantaneous connection and coding
The PLC M-DUINO is programmed through the USB ports. This PLC can also be programmed through Ethernet port remotely. This offers immediate access to the program, maintain and control. Also, you can continuously monitor the status of all the variables, inputs, outputs, etc. It is compatible with the Arbosx and the Touchberry Pi with the instantaneous connection.




    Ardbox_HF+_LoRa_Family_User_Guide



    Read more

    PLC Arduino ARDBOX 20 I/Os Relay & LoRa 915Mhz - Open Industrial PLC

    Product form
    Free pickup in our shop(s)

    SKU: Ardbox 20 Relay LoRa

    $399.00 $349.00 Excl. GST

    $399.00 $349.00
    Product available in stock, Ships same business day.

      • Local AU Stock, Fast Same-Day Dispatch or Pickup
      • Price Match & Quantity Discounts Available (Request Quote)
      • Purchase Orders & Net 30-Day Terms for Approved Accounts
      • Free Local Technical Support Before & After Purchase
      • Custom Industrial IoT Solutions & Project Assistance
      • Trusted by Australian Industry, Utilities, Agriculture & Government

      Description

      PLC Arduino ARDBOX 20 I/Os Relay & LoRa 915Mhz - Open Industrial PLC

      8 Inputs
      7 Outputs
      Communications: USB, Full/Half Duplex RS485, RS232, I2C, Modbus RTU
      LoRa

      Get into Industrial Internet of Things with Industrial Shields PLC's, All Equipped with Original Arduino Boards and LoRa communication

      RTC, µSD, Ethernet, LoRa, USB-B, Full/Half Duplex RS485, RS232, I2C, Modbus

      • 8 Inputs (5 to 24Vdc):

        (7x) Analog (0-10Vdc) / Digital (5-24Vdc) configurable by software.
        (1x) Digital Isolated (5-24Vdc).

      • 7 Outputs (5 to 24Vdc):

        (7x) Relay Outputs ( 240 VAC - 5A)

      • Arduino microcontroller included
      • Offers immense safety through Industrial Communication mechanism
      • Compact design with DIN rail mounting

      This is the first equipment based on the Arduino technology designed for a professional use. This PLC has 21I/Os. It also contains several communication ports which provide more flexibility and control. The M-DUINO family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

      Programming Software
      This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

      Instantaneous connection and coding
      The PLC M-DUINO is programmed through the USB ports. This PLC can also be programmed through Ethernet port remotely. This offers immediate access to the program, maintain and control. Also, you can continuously monitor the status of all the variables, inputs, outputs, etc. It is compatible with the Arbosx and the Touchberry Pi with the instantaneous connection.




        Ardbox_HF+_LoRa_Family_User_Guide



        Read more
