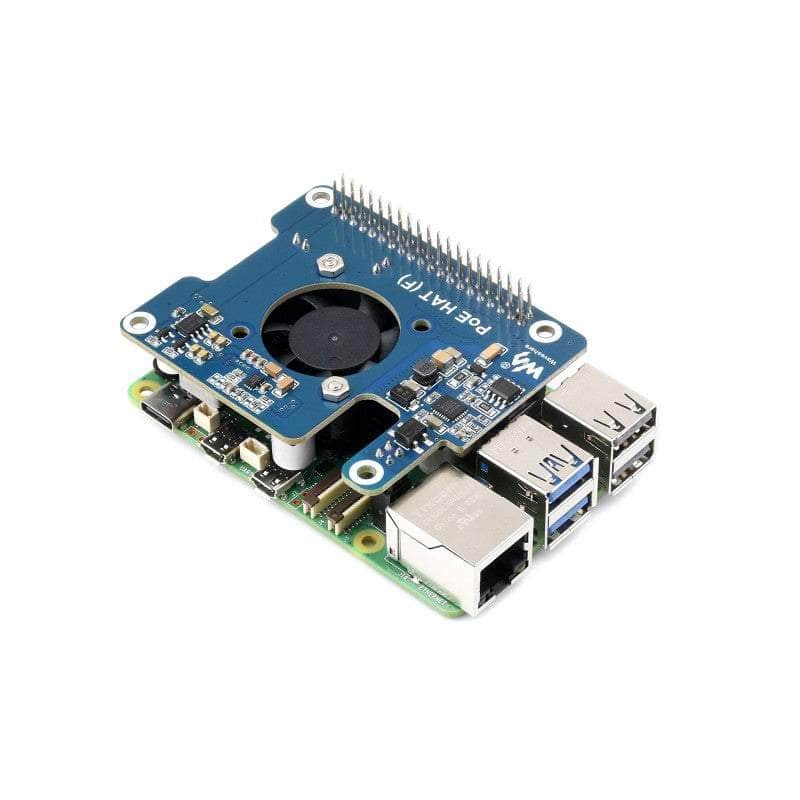

    Power Over Ethernet POE HAT (F) For Raspberry Pi 5

    Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/At Network Standard





    Features:

    The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
    • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5
    • PoE (Power Over Ethernet) capability, IEEE 802.3af/at-compliant
    • Fully isolated switched-mode power supply (SMPS)
    • Onboard high speed active cooling fan, with metal heatsink, better heat dissipation

    Specifications:

    POE POWER INPUT 37V ~ 57V DC in
    POWER OUTPUT GPIO header: 5V 4.5A (MAX)
    2P header: 12V 2A (MAX)
    DIMENSIONS 56.5 × 70.0mm
    NETWORK STANDARD IEEE 802.3af/at PoE

    Suitable For Raspberry Pi 5:

    Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs


    Power Over Ethernet:

    Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

    * for reference only, the Raspberry Pi 5 and switch are NOT included.

    Onboard 5V & 12V Header Outputs

    5V Header Provides Up To 4.5A Output (MAX 25W For 12V+5V Total Output Power)
    Be Able To Power Extra Devices While Providing Stable Power To Raspberry Pi

    Active Cooling Fan

    Accelerate Cooling Effect, More Stable Performance

    Onboard MP8759GD Buck Chip

    Incorporates Original Voltage Buck Chip
    Providing Up To 5A Under Sufficient Heat Dissipation Condition

    How To Install:

    Attach The Thermal Tapes First, Then Install Metal Heatsink And Fix The PoE HAT

    * for reference only, please refer to the Package Content for a detailed part list


    Product Show:

    Outline Dimensions
