Polysilicon Solar Panel (18V 10W), High Conversion Efficiency
Polysilicon Solar Panel (18V 10W), High Conversion Efficiency
Specifications
KEY SPECIFICATIONS | |||
---|---|---|---|
Solar cell type | polysilicon | Power | 10 Wp (Max) |
Output power tolerance | ±3% | Conversion efficiency | >20% |
Operating voltage | 17.6 V | Operating current | 0.57 A |
Open circuit voltage | 21.6 V | Short circuit current | 0.61 A |
Cell quantity | 36 (4×9) | Standard system voltage | 1000 V (Max) |
OTHERS | |||
Operating temperature | -40℃ ~ +85℃ | ||
Pressure on panel | 30m/s(200kg/sq.m) (Max) | ||
Cable | length 90 cm, DC plug, OD 3.5mm ID 1.35mm | ||
Frame material | anodic oxidation aluminum alloy | ||
Dimensions | 340 × 232 × 17 mm | ||
Weight | 0.935 kg |

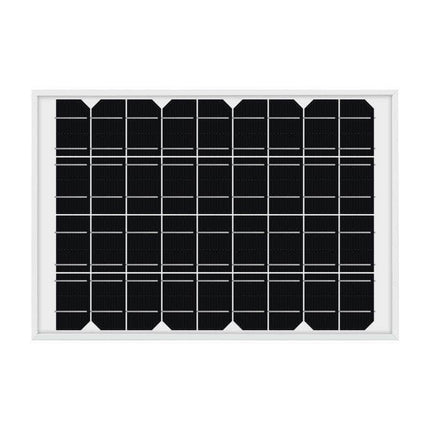

Conversion Efficiency > 20%
Polysilicon Solar Panel, Widened Chips, Larger Receiving Area, Capturing Trivial Source

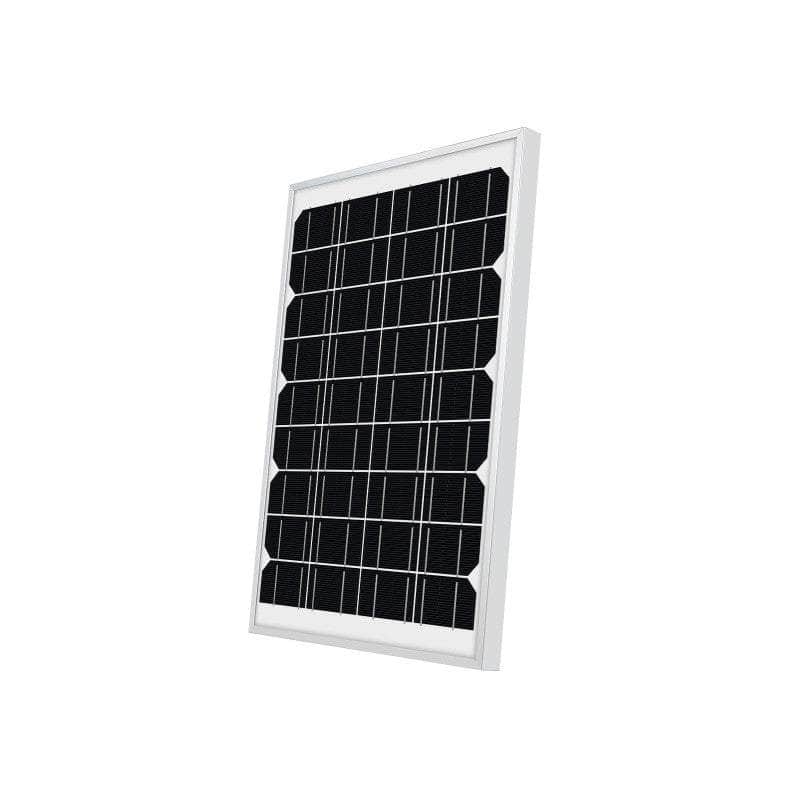

High Strength Frame
Anodic Oxidation Aluminum Alloy Material, Multi Layers Structure, Waterproof And Durable

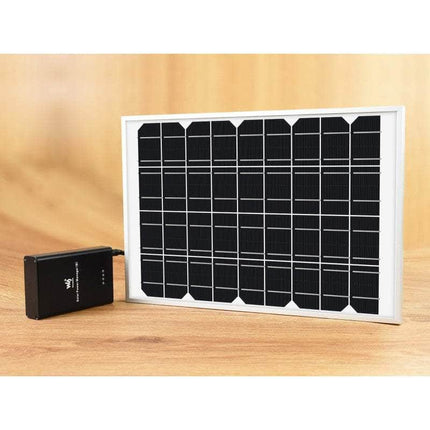

Application Example
for reference ONLY, the Raspberry Pi, display, solar power manager are NOT included.
Outline Dimensions
