PT-1000 Temperature Kit - Atlas Scientific

  • $159.00
  • Save $40
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • PT-1000 Temperature Kit - Atlas Scientific

    The PT-1000 temperature probe is a resistance type thermometer. Where PT stands for platinum and 1000 is the measured resistance of the probe at 0˚C in ohms (1k at 0˚C). As the temperature changes the resistance of the platinum changes.

    The PT-1000 can be fully submerged in fresh water or salt water, up to the BNC connector indefinitely.

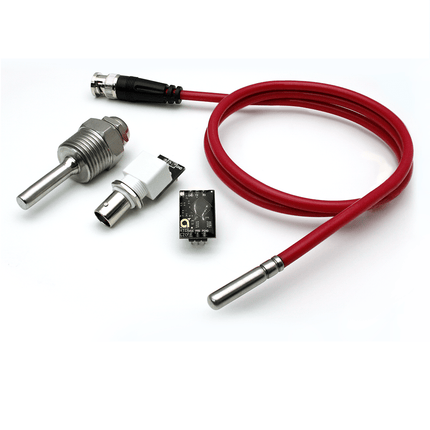

    Kit includes:

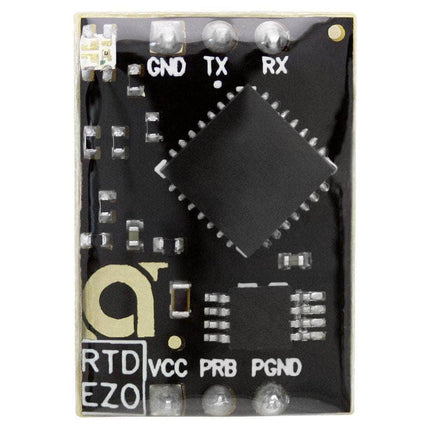

    • 1 EZO™ RTD Temperature Circuit

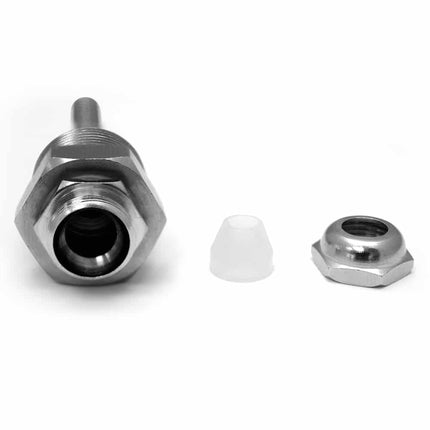

    • 1 Temperature Thermowell (choice of 100mm, 50mm or 30mm), please confirm when placing the order

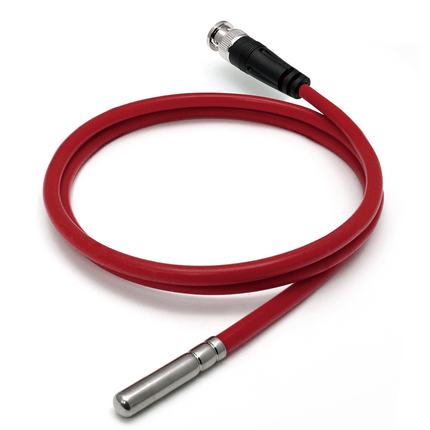

    • 1 PT-1000 Temperature Probe with BNC connection
    • Full temperature sensing range -200˚C to 850˚C
         Cable Max Temp 125°C, Min Temp -55°C
         (for temperatures beyond this range use Thermowell)
         Cable length: 81cm (32")

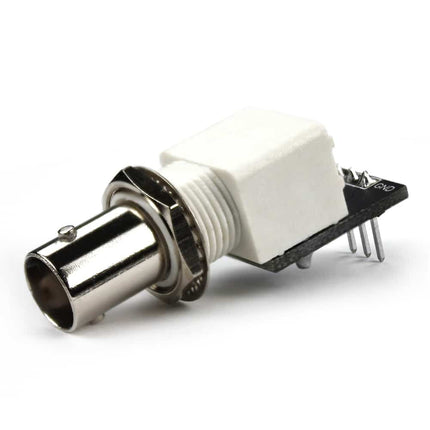

    • 1 Pre-Assembled Female BNC connector

    Female BNC Spec
    Thread Size 1/4" - 36 UNS Thread type

    Downloads:
