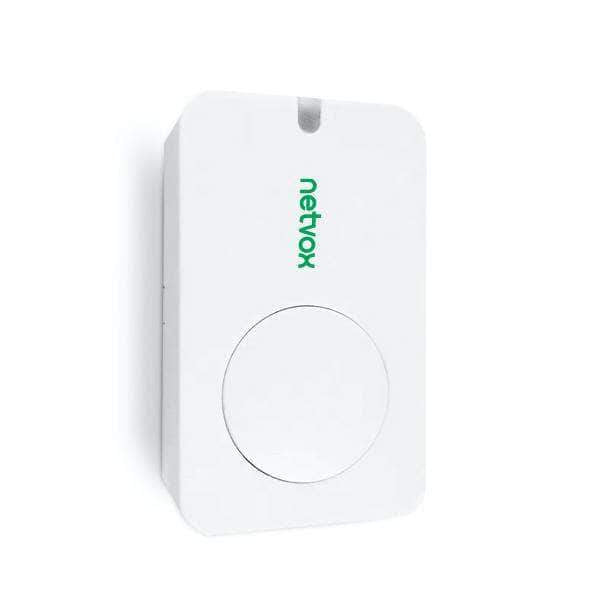

R313D Netvox LoRaWAN Wireless Asset Tracking Sensor

R313D Netvox LoRaWAN Wireless Asset Tracking Sensor

  • $119.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • R313D Netvox LoRaWAN Wireless Asset Tracking Sensor

    The R313D device is a simple positioning function (which can detect the position status of the device), periodically reports RSSI and SNR information to the gateway for processing and can locate the position status of the device according to the reported RSSI and SNR information, and adopts SX1276 wireless communication module. The communication is fully compatible with LoRaWAN™ Protocol (Class A).

    Features:

    • Wireless Range Of 10 Km
    • LoRaWAN™ Class A Compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management For Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
    • Battery Life*2:
      ⁻ 5 Years

       (Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)

    • Over-The-Air Updates

    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)

    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

      Battery: https://www.iot-store.com.au/products/lithium-button-cell-battery-cr2450-3v-600mah

      Electric:

      Input Power

      2pcs 3.0V CR2450 Button Battery

      Working Voltage

      DC 2.4V~3.0V

      Standby Current

      16uA /3.0V

      Transmitting Current (Max)

      120mA / 3.0V

      Receiving Current (Max)

      11mA / 3.0V

      Battery Voltage Measurement Accuracy

      ±0.1V


      Frequency:

      Frequency Range

      863MHz-928MHz 470MHz-510MHz

      TX Power

      19dBm±1dBm

      Rx Sensitivity

      -136dBm
      (LoRa,Spreading Factor=12,Bit Rate=293bps )
      -121dBm
      (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)

      Antenna Type

      Build-In Antenna

      Communication Range

      Up To10 Km, The Actual Transmission Distance Depends On The Environment.

      Data Transfer Rate

      0.3kbps~50kbps

      Spread Technique

      LoRa/FSK

      Available Frequency

      AU915-928,AS923


      Physical:

      Main Body Dimension

      57mm X 35mm X 15.2mm

      Weight

      48.9 G

      Operating Temperature

      -20℃ ~ 55℃

      Environment Humidity Range

      <90% RH  (No Condensation)

      Storage Temperature

      -40℃ ~ 85℃


      Documentation:

      Datasheet

      User manual

      Netvox LoRaWAN Catalog

      Payload Format and Examples

      Netvox LoRaWAN Application Command V1.8.6

      Example of payload (ConfigureCmd)_R718CK2

      example of payload (ReportDataCmd)

      Frequency Conversion (Sub frequencies of AU915)

      Lora Calibrate Tool User Manual

      Programming Instruction STlink
