Netvox LoRaWAN R718E LoRaWAN Three-Axis Accelerometer Temperature Sensor

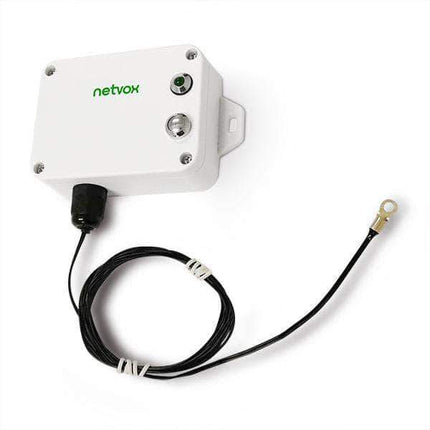

R718E LoRaWAN Three-Axis Digital Accelerometer & Surface Temperature Sensor

  • $169.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • R718E LoRaWAN Three-Axis Digital Accelerometer & Surface Temperature Sensor

    R718E can detect the movement or vibration of the device, send a signal to the gateway for processing, and externally connect one NTC thermistor to detect the surface temperature of the measured object. R718E uses the SX1276 wireless communication module. Its wireless communication meets standard LoRaWAN™ Protocol (Class A).

    Features:

    • LoRaWAN™ Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management For Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
    • Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
    • Over-The-Air Updates
    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

        Electric

        Input Power

        2 X 3.6V ER14505 AA Lithium Batteries
        (3.6V 2400mah/Section)

        Sleeping Mode

        80uA

        Wake Up Mode

        6.3mA@3.3V

        Receiving Current (Max)

        11mA @3.3V

        Transmitting Current (Max)

        120mA/3.3V

        Battery Voltage Measurement
        Accuracy

        ±0.1V

        Low Voltage Threshold

        3.2V


        Frequency

        Frequency Range

        AU915-928,AS923

        TX Power

        19dBm±1dBm

        Rx Sensitivity

        -136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
        -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)

        Antenna Type

        Build-In Antenna

        Communication Range

        Up To10 Km, The Actual Transmission Distance Depends On The Environment.

        Data Transfer Rate

        0.3kbps~50kbps

        Spread Technique

        LoRa/FSK

        Available Frequency

        AU915-928,AS923


        Physical

        Dimension

        Main Part: L: 112mm*W: 88.19mm*H: 32mm

        Weight

        141g

        Environment Temperature Range

        -20℃ ~ 55℃

        Environment Humidity Range

        <90% RH  (No Condensation)

        Storage Temperature

        -40℃ ~ 85℃



        Documentation:

        Datasheet

        User Manual



        Netvox LoRaWAN Catalog

        Payload Format and Examples

        Netvox LoRaWAN Application Command V1.9

        Netvox LoRaWAN Application Devicetype V1.9

        Example of payload (ConfigureCmd)_R718CK2

        example of payload (ReportDataCmd)

        Frequency Conversion (Sub frequencies of AU915)

        Lora Calibrate Tool User Manual

        Programming Instruction STlink
