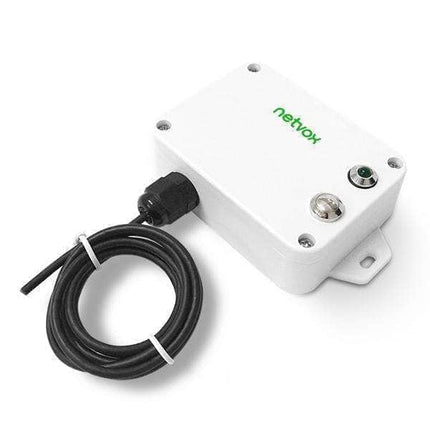

R718H Netvox LoRaWAN Wireless Pulse Counter Interface
R718H Netvox LoRaWAN Wireless Pulse Counter Interface
The R718H device is connected with a pulse detection interface, which can calculate the number of pulses and send the detected number of pulses to the gateway display. It uses the SX1276 LoRaWAN wireless communication module.
Features:
-
Wireless Range of 10km
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management for Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
- Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates (Future)
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
- And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects
Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell
Electric
Input Power |
2 X 3.6V ER14505 AA Lithium Batteries |
Sleeping Mode |
23 UA |
Wake Up Mode |
6.3mA@3.3V |
Receiving Current (Max) |
11mA @3.3V |
Transmitting Current (Max) |
120mA/3.3V |
Battery Voltage Measurement |
±0.1V |
Frequency
TX Power |
19dBm±1dBm |
Rx Sensitivity |
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps ) |
Antenna Type |
Build-In Antenna |
Communication Range |
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment) |
Data Transfer Rate |
0.3kbps~50kbps |
Spread Technique |
LoRa/FSK |
Available Frequency |
AU915-928, AS923 |
Physical
Dimension |
Main Part: L: 112mm*W: 65mm*H: 32mm |
Weight |
150g |
Environment Temperature Range |
-20℃ ~ 55℃ |
Environment Humidity Range |
<90% RH (No Condensation) |
Storage Temperature |
-40℃ ~ 85℃ |
Documentation:
Battery Calculator:
Netvox LoRa Command Resolver:
LoRa Command Resolver
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
