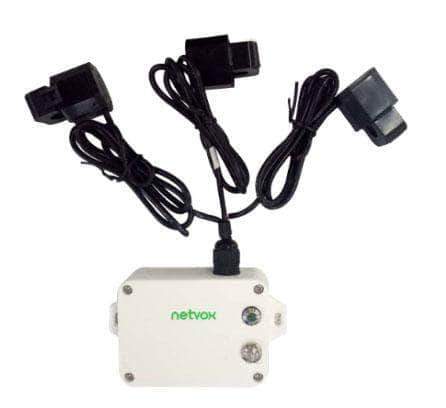

Netvox LoRaWAN R718N3 LoRaWAN Wireless 3-Phase Current Meter (3-Gang)

R718N3 Netvox LoRaWAN Wireless 3-Phase Current Meter (3-Gang)

  • $319.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • R718N3 Netvox LoRaWAN Wireless 3-Phase Current Meter (3-Gang)

    R718N1 is a 3-Gang 3-phase current meter to be connected to an external current transformer. The devices can be used for current monitoring. The communication is fully compatible with LoRaWAN™ Protocol (Class A).

    Features:

    • Wireless Range of 10km
    • LoRaWAN Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management for Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
    • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
    • Over-The-Air Updates (Future)
    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
    • And Set Alerts Via SMS Text And Email (Optional)
    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

    Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell

    Electric

    Input Power

    2 X 3.6V ER14505 AA Lithium Batteries
    (3.6V2400mah/Section)

    Sleeping Current

    40uA

    Wake Up Current

    7mA

    Receiving Current (Max)

    11mA @3.3V

    Transmitting Current (Max)

    120mA/3.3V

    Battery Voltage Measurement
    Accuracy

    ±0.1V

    Low Voltage Threshold

    3.2V

    Current Measurement Accuracy

    <+-1%

    Current Measurement Accuracy Range

    100mA To 20A
    (Depending On The Current Transformer Configuration)


    Frequency

    TX Power

    19dBm±1dBm

    Rx Sensitivity

    -136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
    -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)

    Antenna Type

    Build-In Antenna

    Communication Range

    10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)

    Data Transfer Rate

    0.3kbps~50kbps

    Spread Technique

    LoRa/FSK

    Available Frequency

    AU915, AS923


    Physical

    Dimension

    Main Part: L: 112mm*W: 65mm*H: 32mm

    Weight

    141g

    Environment Temperature Range

    -20℃ ~ 55℃

    Environment Humidity Range

    <90% RH  (No Condensation)

    Storage Temperature

    -40℃ ~ 85℃

    IP Rating (Main Part)

    IP67

    IP Rating (External Sensor)

    IP65



    Documentation:

    Datasheet

    User manual

    Netvox LoRaWAN Catalog

    Payload Format and Examples

    Netvox LoRaWAN Application Command V1.8.6

    Example of payload (ConfigureCmd)_R718CK2

    example of payload (ReportDataCmd)

    Frequency Conversion (Sub frequencies of AU915)

    Lora Calibrate Tool User Manual

    Programming Instruction STlink
