RAK Wireless WisBlock 4-20mA interface Module RAK5801

  • $25.00
  • Save $5
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

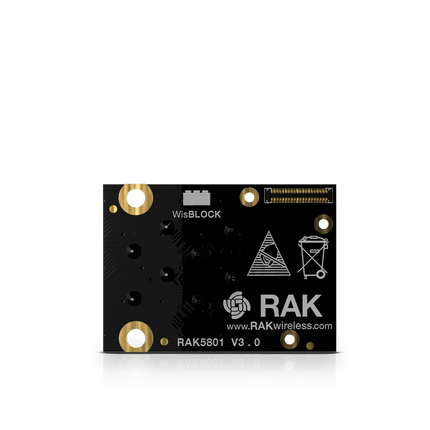

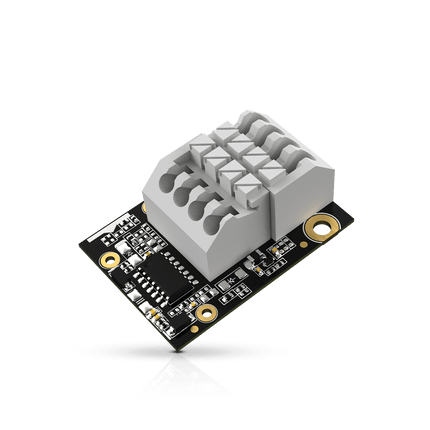

    RAK Wireless WisBlock 4-20mA interface Module RAK5801

    RAK5801 is a WisBlock IO which extends the WisBlock system with two current measurement inputs. The current is converted into a voltage that can be read by the analog input pins of the WisBlock Core module. A ready to use SW library and tutorial makes it easy to connect any sensor that is using a 4-20mA current output.

    RAK5801 supports two 4-20mA interfaces and has a 12V power output to supply sensors. In addition, an I2C interface connection is available on the crimping terminal.

    RAK5801 combined with the RAK4631 WisBlock Core gives your solution an interface to industrial sensors and actuators that supports the 4-20mA interface. This module is the bridge between such sensors and LoRaWan® communication, LoRa® point to point connections or BLE.

    RAK5801 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.

    Key Features

    • 4 to 20mA current to voltage converter.
    • Low power consumption

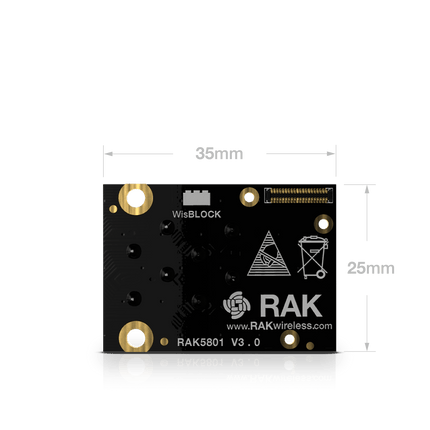

    • Small form factor
    • 12V output for sensors
    • 005mA conversion accuracy
    • 2kV ESD protection
    • Supports 2 RS485 Ports

    Package Inclusion

    • 1pc RAK5801
