RAK Wireless WisBlock RS485 interface Module RAK5802

  • $20.00
  • Save $5
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

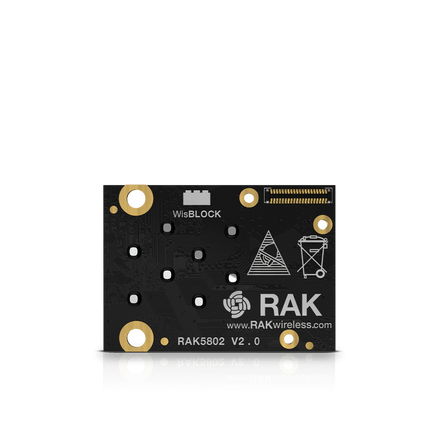

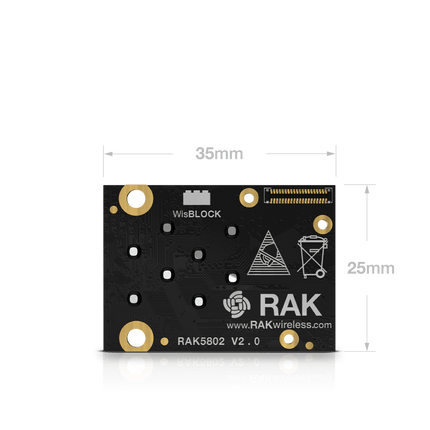

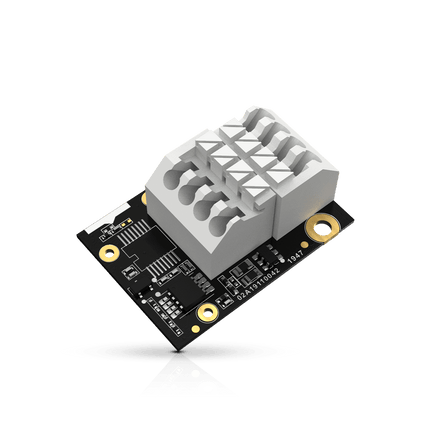

    RAK Wireless WisBlock RS485 interface Module RAK5802

    RAK5802 is a WisBlock IO which extends the WisBlock system with an industrial RS485 data transmission interface. A ready to use SW library and tutorial makes it easy to connect any sensor that is using the RS485 interface.

    RAK5802 supports one RS485 interface and has a battery and 3.3V power output to supply sensors. In addition, an I2C interface connection is available on the crimping terminal.

    RAK5802 combined with the RAK4631 WisBlock Core gives your solution for an interface to industrial sensors and actuators that support the RS485 interface. This interface is the bridge between such sensors and LoRaWan® communication, LoRa® point to point connections or BLE.

    RAK5802 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.

    Key Features

    • The converter of industry-standard RS485 interface to serial.
    • Low power consumption
    • Small form factor
    • Battery and 3.3V output for sensors
    • 18kV ESD protection
    • 1 RS485 port

    Package Inclusion

    • 1pc RAK5802

    Documentation
