RAK4200 LoRaWAN Evaluation Board
RAK4200 LoRaWAN Evaluation Board

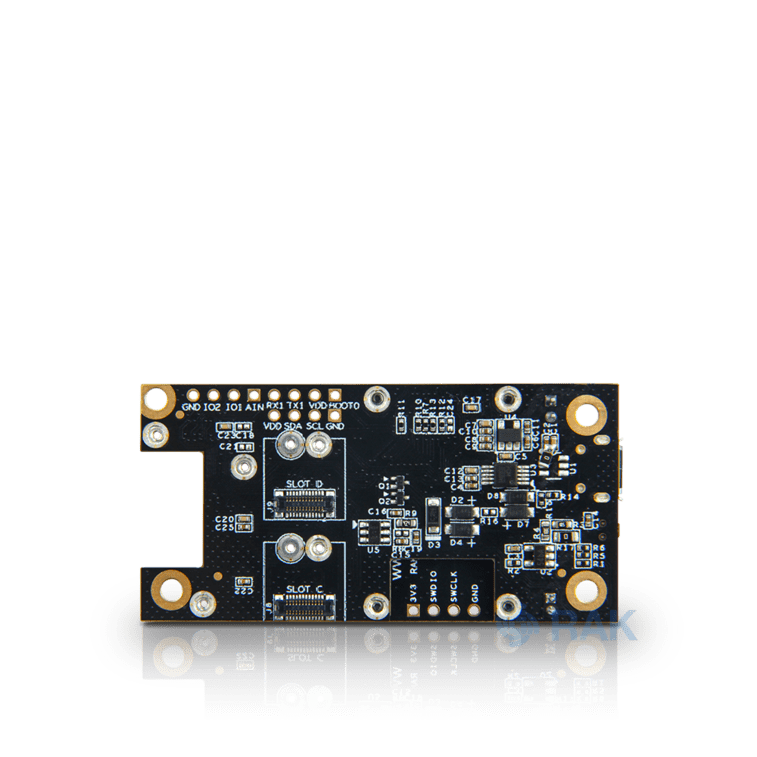

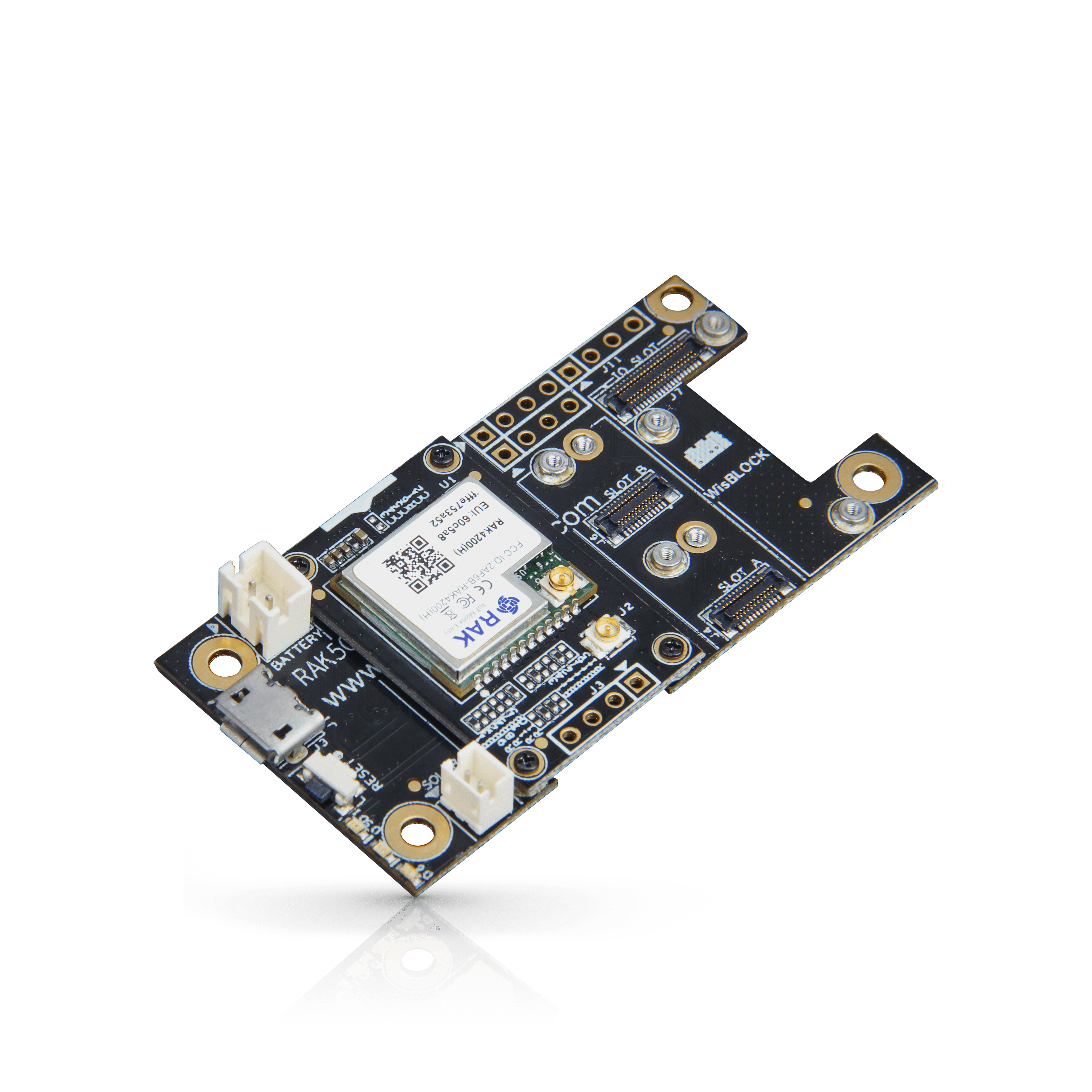

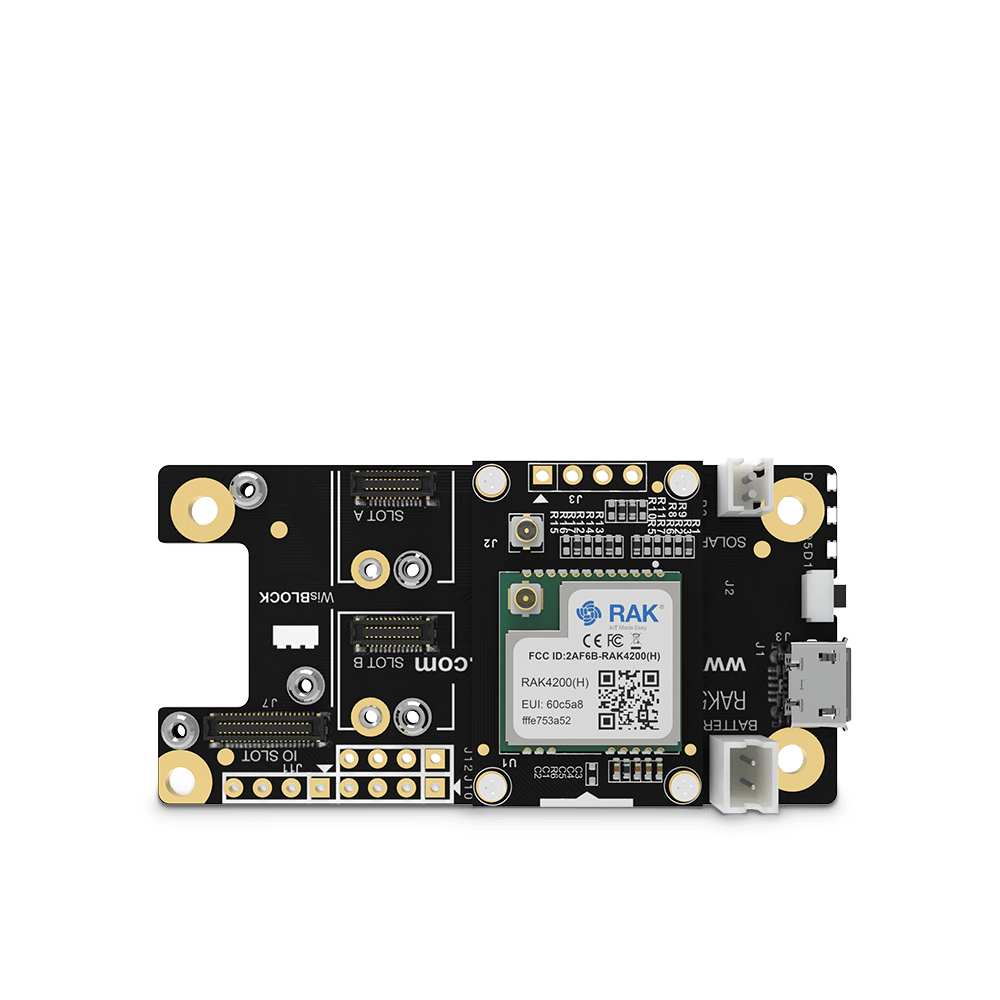

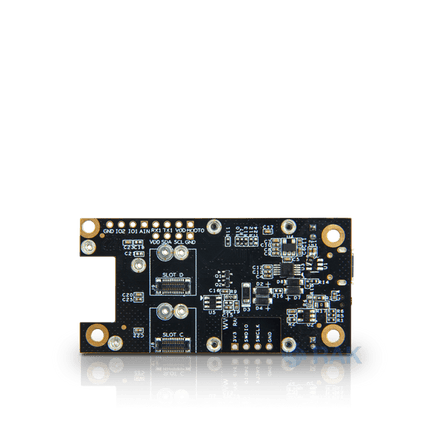

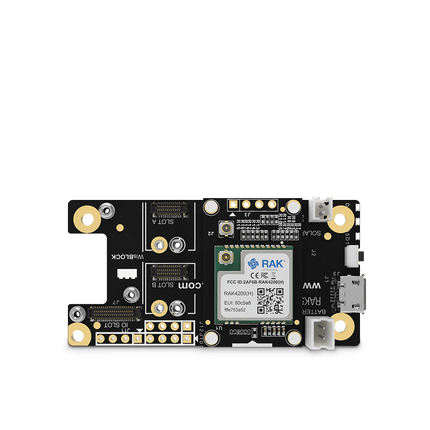

RAK4200 LPWAN Evaluation Board is a WisDuo product consisting of RAK4200 LPWAN Module and RAK5005 WisBlock Base. You can use this development board to access all serial and GPIO ports for easy configuration. The core module RAK4200 includes an STM32L071 MCU and SX1276 LoRa® chip that complies with the LoRaWAN® 1.0.2 protocols.
Complete documentation of this product can be found on the website documentation page.
Key Features
- LoRa® module for Smart City, Smart Agriculture, Smart Industry
- I/O ports: UART/I2C/GPIO
- Temperature range: -40°C to +85°C
- Frequency range: 863 to 923 MHz (entire LoRa® spectrum)
- Low-Power Wireless Systems with 7.8kHz to 500KHz Bandwidth
- Ultra-Low Power Consumption 1.5uA in sleep mode
- Core: ARM 32-bit Cortex M0+ with MPU
- Up to 128KB flash memory with ECC
- 20KB RAM
Package Inclusions
- 1pc RAK4200 EVB
- 1pc Micro USB Cable
- 1pc LoRa Antenna (iPEX)
- 2pc 4-pin Header
- 13pc Dupont Lines
