Raspberry Pi Motorized Focus 5MP Camera Omnivision OV5647 (B0121)

  • $45.00
  • Save $15
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

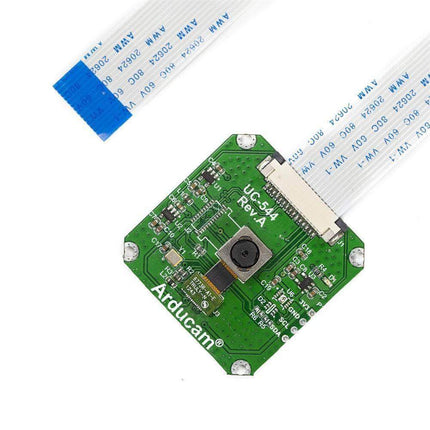

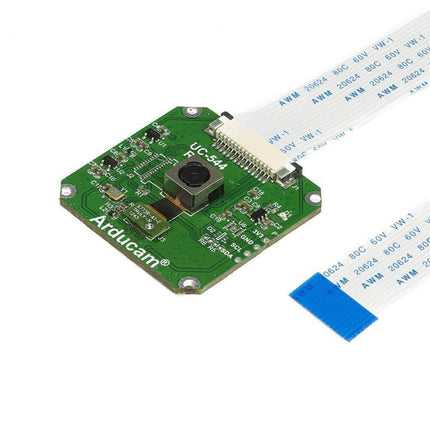

  • Raspberry Pi Motorized Focus 5MP Camera Omnivision OV5647 (B0121)

    The standard pi camera is fixed focus lens, some of them are glued which cannot be adjusted by users, and some of them are not glued which can adjust the lens focus manually. But in certain circumstance, you want to programmable control the focus distance remotely where the device can not be reached. The ArduCAM team now designed motorized control focus 5MP camera module for Raspberry Pi series boards to address this problem.


    • High-Definition video camera for Raspberry Pi Model A/B/B+ and Raspberry Pi 2 Pi 3B, Pi 3B+ and Pi Zero
    • 5MP OV5647 sensor with motorized focus lens
    • Integral IR filter
    • Angle of View: 54 x 41 degrees
    • Field of View: 2.0 x 1.33 m at 2 m
    • Full-frame SLR lens equivalent: 35 mm
    • Focus distance: 4 cm to infinity (can be customized to much closer distance)
    • Size: 40 x 40 mm
    • 15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector

    Package including:

    1pcs Motorized Focus 5MP Camera OV5647 for Raspberry Pi
    1pcs 15cm 15pin FPC cable
