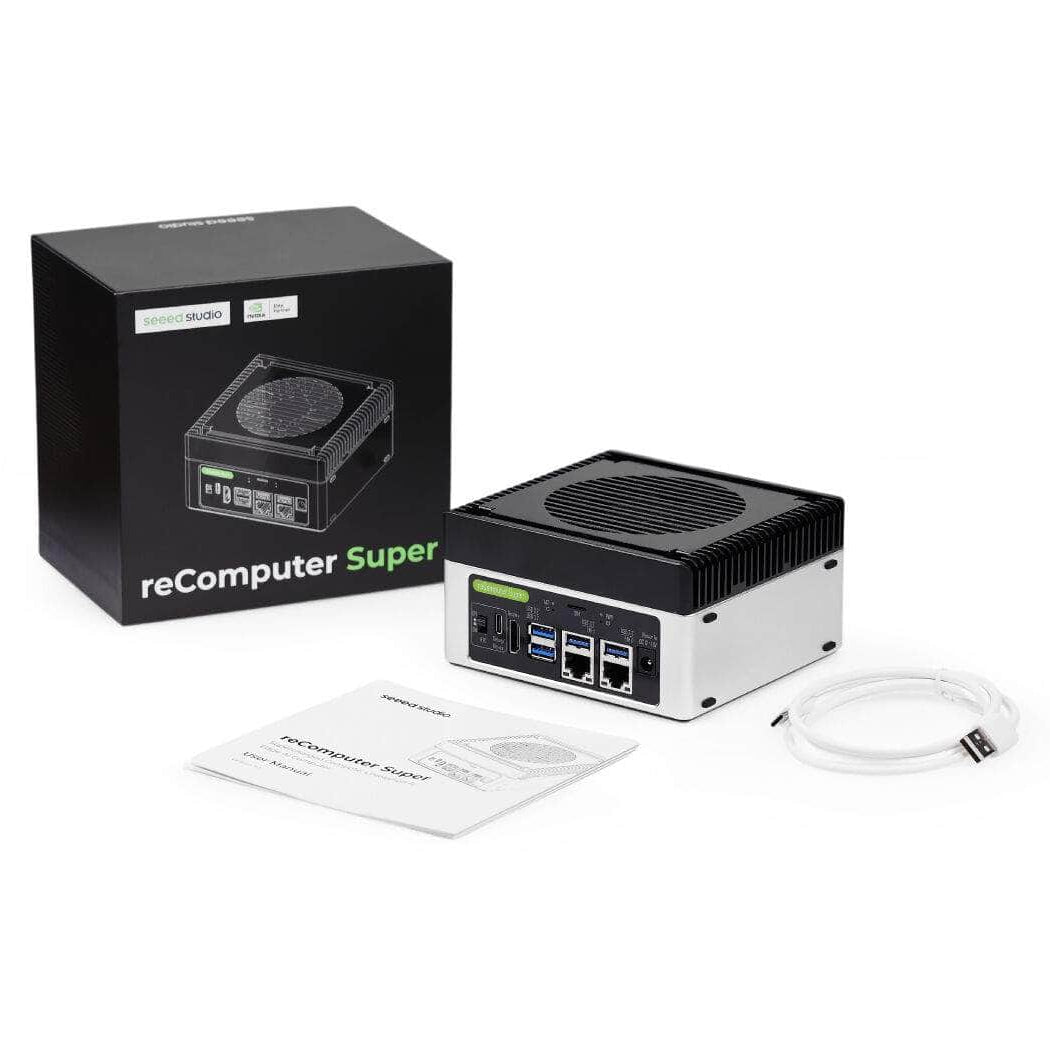

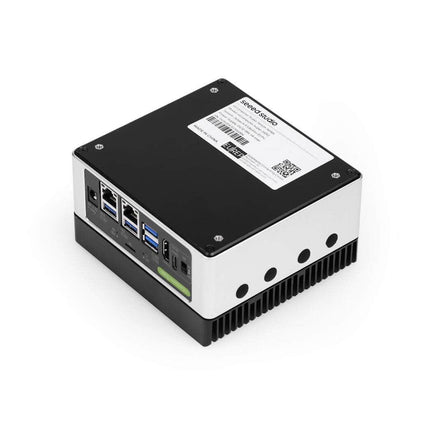

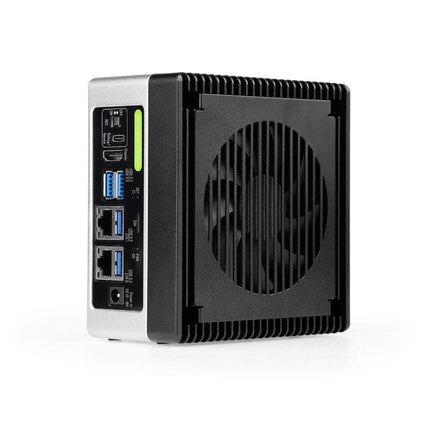

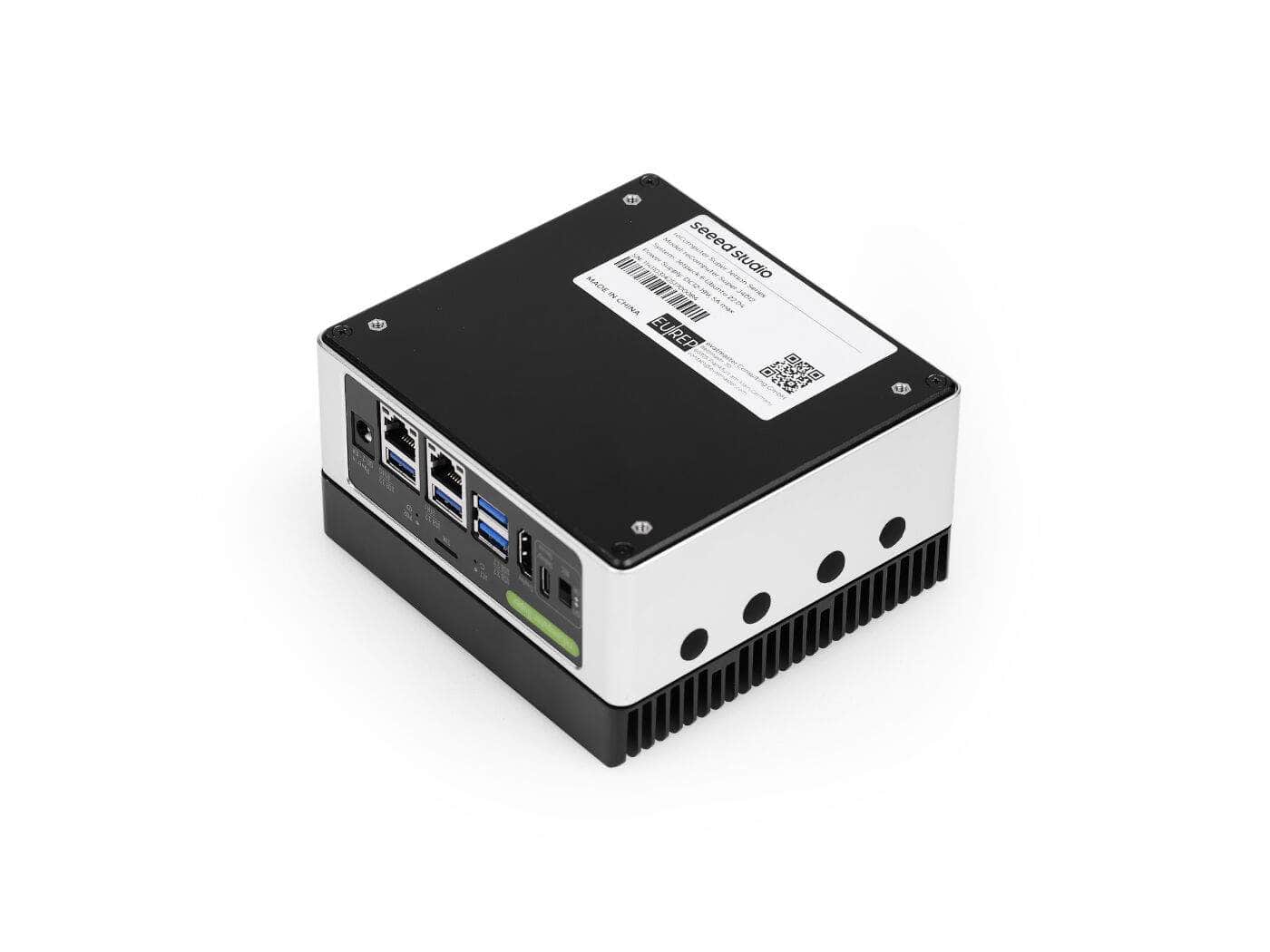

reComputer Super J4012 NVIDIA® Jetson™ Orin™ NX 16GB

Description

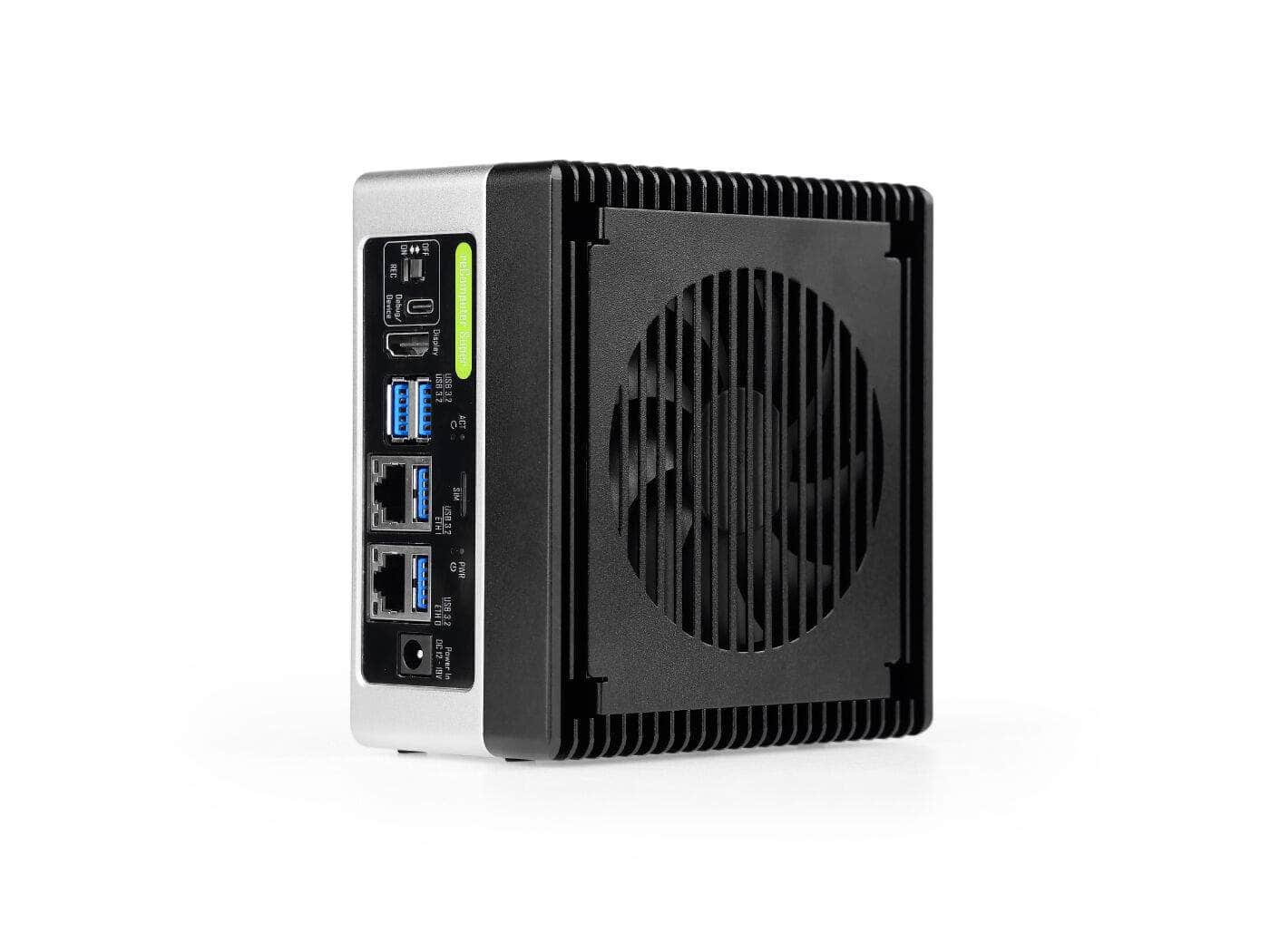

reComputer Super J4012 NVIDIA® Jetson™ Orin™ NX 16GB

The reComputer Super J4012 is a compact, high-performance edge AI device, based on the NVIDIA® Jetson™ Orin™ NX 16GB platform, delivering up to 157 TOPS in Super MAXN mode. It supports a wide range of operating temperature from -20℃ to 65℃. Built for fast development and production, it features Wi-Fi/BT/LTE wireless communication capability and Ethernet, ensuring seamless integration, ideal for video analysis, multimodal perception, and robotics.

Feature
  • Super Boost AI Performance: Delivers up to 157 TOPS in MAXN Super Mode, ideal for demanding applications like vision AI, robotics, and generative AI.
  • Energy-Efficient Operation: Configurable power modes from 10W to 40W allow for optimized performance and energy consumption.
  • Robust Thermal Design: Operates reliably in temperatures from -20°C to 60°C at 40W, and up to 65°C at 25W.
  • Rich interfaces: features 2xRJ45, SIM card, 4×USB 3.2, HDMI 2.1, and CAN. Also including M.2 Key E/M, Mini-PCIe, 4xCSI for connectivity and cameras.
  • Ready for Deployment: Pre-installed with JetPack 6.2 and a 128GB NVMe SSD, supporting AI frameworks like NVIDIA Isaac, Hugging Face, and ROS2/1, enabling rapid development of various AI applications.

Jetson Modules Performance with Super Mode

  • Enhanced power management
  • Improved higher frame rate processing
  • Reduced inference time


Specification


reComputer Super J4011

reComputer Super J4012

Applications Processor(AP)

NVIDIA Orin™ NX 8GB

NVIDIA Orin™ NX 16GB

AI Performance

Orin NX 8GB – 117 TOPS(MAXN)

Orin NX 16GB – 157 TOPS(MAXN)

GPU

1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores

GPU Max Frequency

1173 MHz

CPU

6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

CPU Max Frequency

2.0 GHz

DL Accelerator

1 x NVDLA v2.0

2 x NVDLA v2.0

DL Max Frequency

1.23 GHz

Vision Accelerator

1 x PVA v2.0

Memory

8GB 128-bit wide LPDDR5 DRAM 102.4 GB/s

16GB 128-bit wide LPDDR5 DRAM 102.4GB/s

Power

10W - 15W - 25W - 40W

10W - 15W - 25W -40W

Video Encode

1x 4K60 (H.265)

3x 4K30 (H.265)

6x 1080p60 (H.265)

12x 1080p30 (H.265)

Video Decode

1x 8K30 (H.265)

2x 4K60 (H.265)

4x 4K30 (H.265)

9x 1080p60 (H.265)

18x 1080p30 (H.265)

CSI camera

Up to 4 cameras

(8 via virtual channels***)

8 lanes MIPI CSI-2

D-PHY 2.1 (up to 20Gbps)

Mechanical

69.6mm x 45mm

260-pin SO-DIMM connector



Carrier Board

Storage

1x M.2 KEY M PCIe (M.2 NVMe 2242 SSD 128G included)

Networking

M.2 KEY E

1x M.2 Key E for WiFi/Bluetooth module

Mini PCIe

1x mini-PCIe for LTE 4G module

Ethernet

2x RJ45 Gigabit Ethernet

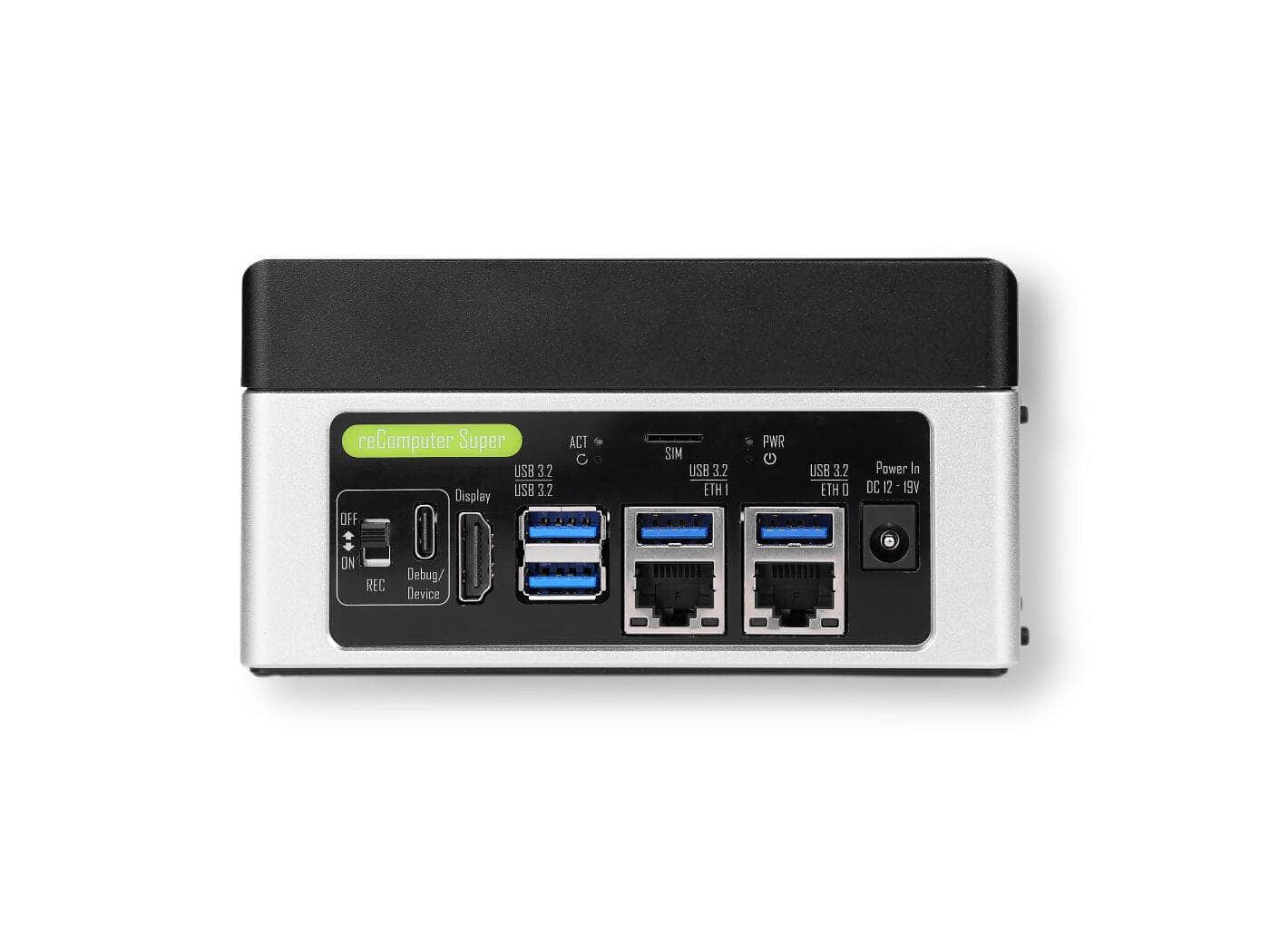

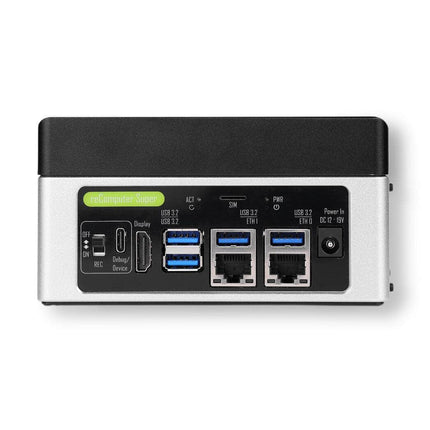

I/O

USB

4x USB 3.2 Type-A (5Gbps);

1x USB 2.0 Type-C (Device Mode/Debug);

Camera

4x mipi CSI(2-lane 15-Pin)

CAN

1 x CAN(4-Pin Header)

Display

1x HDMI 2.1

Fan

1x 4-Pin 1.25mm Fan Connector (5V PWM)

1x 4-Pin 2.54mm Fan Connector (12V PWM)

Extension Port

1x 40-Pin extension header

1x 12-Pin control and UART header

RTC

1x RTC 2-pin

1x RTC Socket

LED

2x LED(PWR and ACT)

Button

1x PWR

1x RESET

Switch

1x REC

Antenna hole

4x Antenna Hole

Power

12-19V 5525 Barrel DC Jack

Jetpack Version

Jetpack 6.2

Mechanical

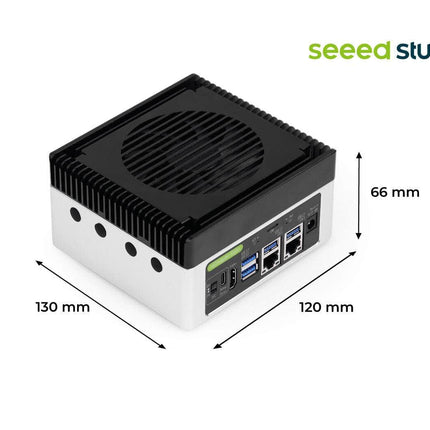

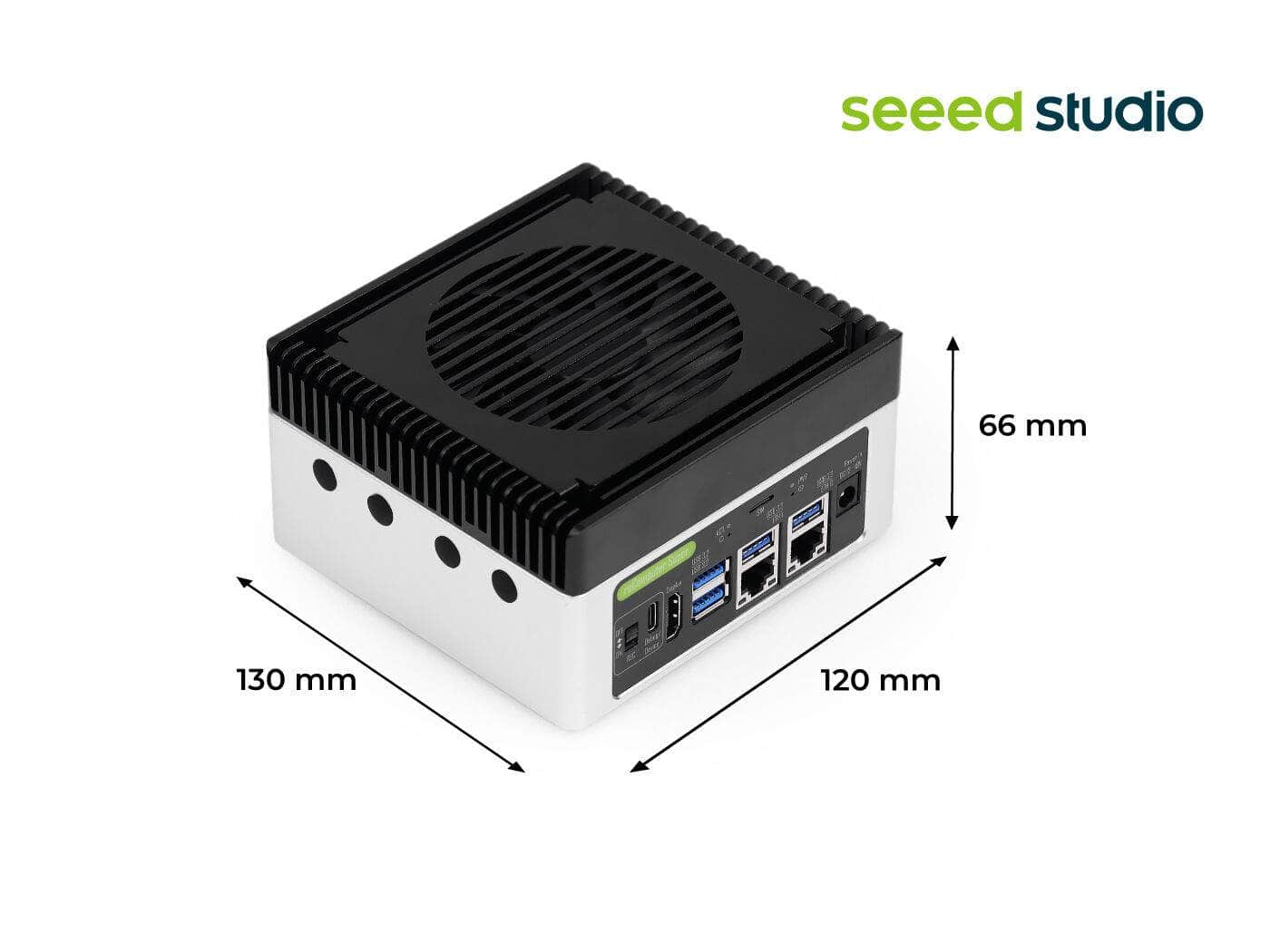

Dimensions (W x D x H)

130mm x 120mm x 66mm

Weight

1110g

Installation

Desk, Wall-mounting

Operating Temperature

-20℃~65℃(25W Mode)

-20℃~60℃(MAXN Mode)

Warranty

2 Years

Certification

RoHS,REACH,CE,FCC,UKCA, KC


Hardware Overview




Application

The NVIDIA AI software stack is designed for accelerate AI application and deployment:

Designed for Edge AI Computer Vision Applications:

Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.

Designed for demanding AI applications:

Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario





reComputer Super J4012 NVIDIA® Jetson™ Orin™ NX 16GB

Product form
Free pickup in our shop(s)

SKU: 114110314

$1,849.00 $1,749.00 Excl. GST

$1,749.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    reComputer Super J4012 NVIDIA® Jetson™ Orin™ NX 16GB

    The reComputer Super J4012 is a compact, high-performance edge AI device, based on the NVIDIA® Jetson™ Orin™ NX 16GB platform, delivering up to 157 TOPS in Super MAXN mode. It supports a wide range of operating temperature from -20℃ to 65℃. Built for fast development and production, it features Wi-Fi/BT/LTE wireless communication capability and Ethernet, ensuring seamless integration, ideal for video analysis, multimodal perception, and robotics.

    Feature
    • Super Boost AI Performance: Delivers up to 157 TOPS in MAXN Super Mode, ideal for demanding applications like vision AI, robotics, and generative AI.
    • Energy-Efficient Operation: Configurable power modes from 10W to 40W allow for optimized performance and energy consumption.
    • Robust Thermal Design: Operates reliably in temperatures from -20°C to 60°C at 40W, and up to 65°C at 25W.
    • Rich interfaces: features 2xRJ45, SIM card, 4×USB 3.2, HDMI 2.1, and CAN. Also including M.2 Key E/M, Mini-PCIe, 4xCSI for connectivity and cameras.
    • Ready for Deployment: Pre-installed with JetPack 6.2 and a 128GB NVMe SSD, supporting AI frameworks like NVIDIA Isaac, Hugging Face, and ROS2/1, enabling rapid development of various AI applications.

    Jetson Modules Performance with Super Mode

    • Enhanced power management
    • Improved higher frame rate processing
    • Reduced inference time


    Specification


    reComputer Super J4011

    reComputer Super J4012

    Applications Processor(AP)

    NVIDIA Orin™ NX 8GB

    NVIDIA Orin™ NX 16GB

    AI Performance

    Orin NX 8GB – 117 TOPS(MAXN)

    Orin NX 16GB – 157 TOPS(MAXN)

    GPU

    1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores

    GPU Max Frequency

    1173 MHz

    CPU

    6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

    8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

    CPU Max Frequency

    2.0 GHz

    DL Accelerator

    1 x NVDLA v2.0

    2 x NVDLA v2.0

    DL Max Frequency

    1.23 GHz

    Vision Accelerator

    1 x PVA v2.0

    Memory

    8GB 128-bit wide LPDDR5 DRAM 102.4 GB/s

    16GB 128-bit wide LPDDR5 DRAM 102.4GB/s

    Power

    10W - 15W - 25W - 40W

    10W - 15W - 25W -40W

    Video Encode

    1x 4K60 (H.265)

    3x 4K30 (H.265)

    6x 1080p60 (H.265)

    12x 1080p30 (H.265)

    Video Decode

    1x 8K30 (H.265)

    2x 4K60 (H.265)

    4x 4K30 (H.265)

    9x 1080p60 (H.265)

    18x 1080p30 (H.265)

    CSI camera

    Up to 4 cameras

    (8 via virtual channels***)

    8 lanes MIPI CSI-2

    D-PHY 2.1 (up to 20Gbps)

    Mechanical

    69.6mm x 45mm

    260-pin SO-DIMM connector



    Carrier Board

    Storage

    1x M.2 KEY M PCIe (M.2 NVMe 2242 SSD 128G included)

    Networking

    M.2 KEY E

    1x M.2 Key E for WiFi/Bluetooth module

    Mini PCIe

    1x mini-PCIe for LTE 4G module

    Ethernet

    2x RJ45 Gigabit Ethernet

    I/O

    USB

    4x USB 3.2 Type-A (5Gbps);

    1x USB 2.0 Type-C (Device Mode/Debug);

    Camera

    4x mipi CSI(2-lane 15-Pin)

    CAN

    1 x CAN(4-Pin Header)

    Display

    1x HDMI 2.1

    Fan

    1x 4-Pin 1.25mm Fan Connector (5V PWM)

    1x 4-Pin 2.54mm Fan Connector (12V PWM)

    Extension Port

    1x 40-Pin extension header

    1x 12-Pin control and UART header

    RTC

    1x RTC 2-pin

    1x RTC Socket

    LED

    2x LED(PWR and ACT)

    Button

    1x PWR

    1x RESET

    Switch

    1x REC

    Antenna hole

    4x Antenna Hole

    Power

    12-19V 5525 Barrel DC Jack

    Jetpack Version

    Jetpack 6.2

    Mechanical

    Dimensions (W x D x H)

    130mm x 120mm x 66mm

    Weight

    1110g

    Installation

    Desk, Wall-mounting

    Operating Temperature

    -20℃~65℃(25W Mode)

    -20℃~60℃(MAXN Mode)

    Warranty

    2 Years

    Certification

    RoHS,REACH,CE,FCC,UKCA, KC


    Hardware Overview




    Application

    The NVIDIA AI software stack is designed for accelerate AI application and deployment:

    Designed for Edge AI Computer Vision Applications:

    Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.

    Designed for demanding AI applications:

    Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario
