    Industrial 8-Channel Relay Module for Raspberry Pi Pico

    Power Supply Isolation & Photocoupler Isolation.

    Raspberry Pi Pico is NOT included.

     Features:

    • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
    • Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
    • High quality relay, contact rating: 10A 250V AC or ≤10A 30V DC

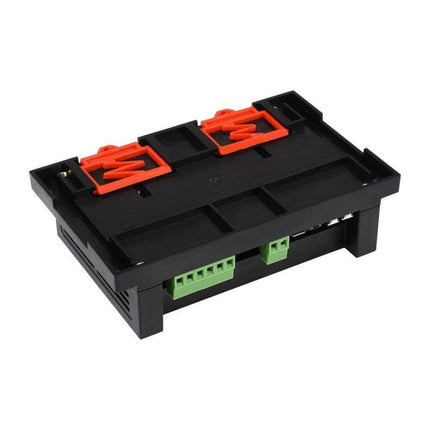

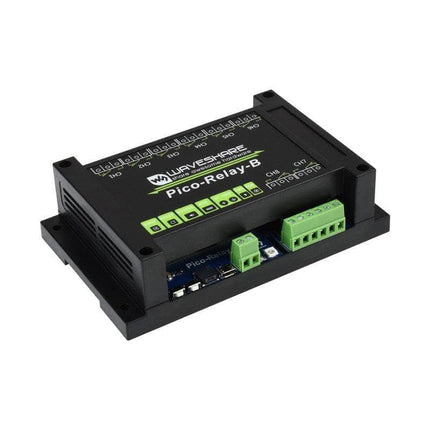

    • ABS protection enclosure with rail-mount support, easy to install, safe to use
    • Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure
    • PWR indicator, RGB LED, and passive buzzer outside the enclosure
    • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

     Specifications

    OPERATING VOLTAGE 5V RELAY CHANNEL 8 ch
    COMMUNICATION PROTOCOL USB CONTACT FORM 1NO 1NC
    COMMUNICATION INTERFACE Micro USB

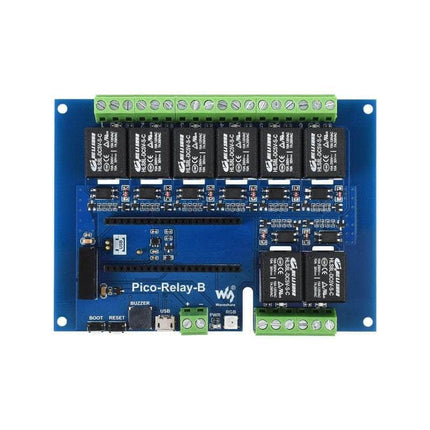

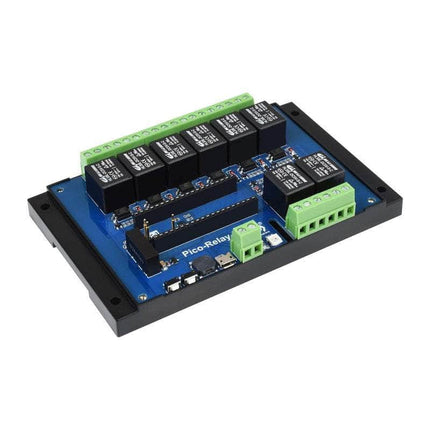

    What's On Board

    1. Raspberry Pi Pico header
    2. Relay screw terminal
      for connecting external devices
    3. Power supply screw terminal
      the multi relays are connected in parallel
    4. Pogo pins
    5. USB communication port
      connected via pogo pins
    6. BOOT key
      connected via pogo pins
    7. Reset key
      Pico reset
    8. Passive buzzer
      controllable sound frequency

    1. Power indicator
    2. WS2812
      RGB LED, cool!
    3. 8-channel quality relays
      contact rating per channel: ≤10A 250V AC or ≤10A 30V DC
    4. Relay operating indicator
    5. Photocoupler isolation
      prevent interference from external high-voltage circuit connected to the relay
    6. Power supply isolation
      provides stable isolated voltage, needs no extra power supply for the isolated terminal
    7. Thickened tracks
      allows large current devices

    Pinout Definition

    Outline Dimensions

     WIKI: Pico-Relay-B
