reTerminal - Embedded Linux Raspberry Pi CM4 5" Capacitive Multi-Touch Screen

  • $299.00
  • Save $50
  • (Exc. GST)


  • We will ship this item as soon as back in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

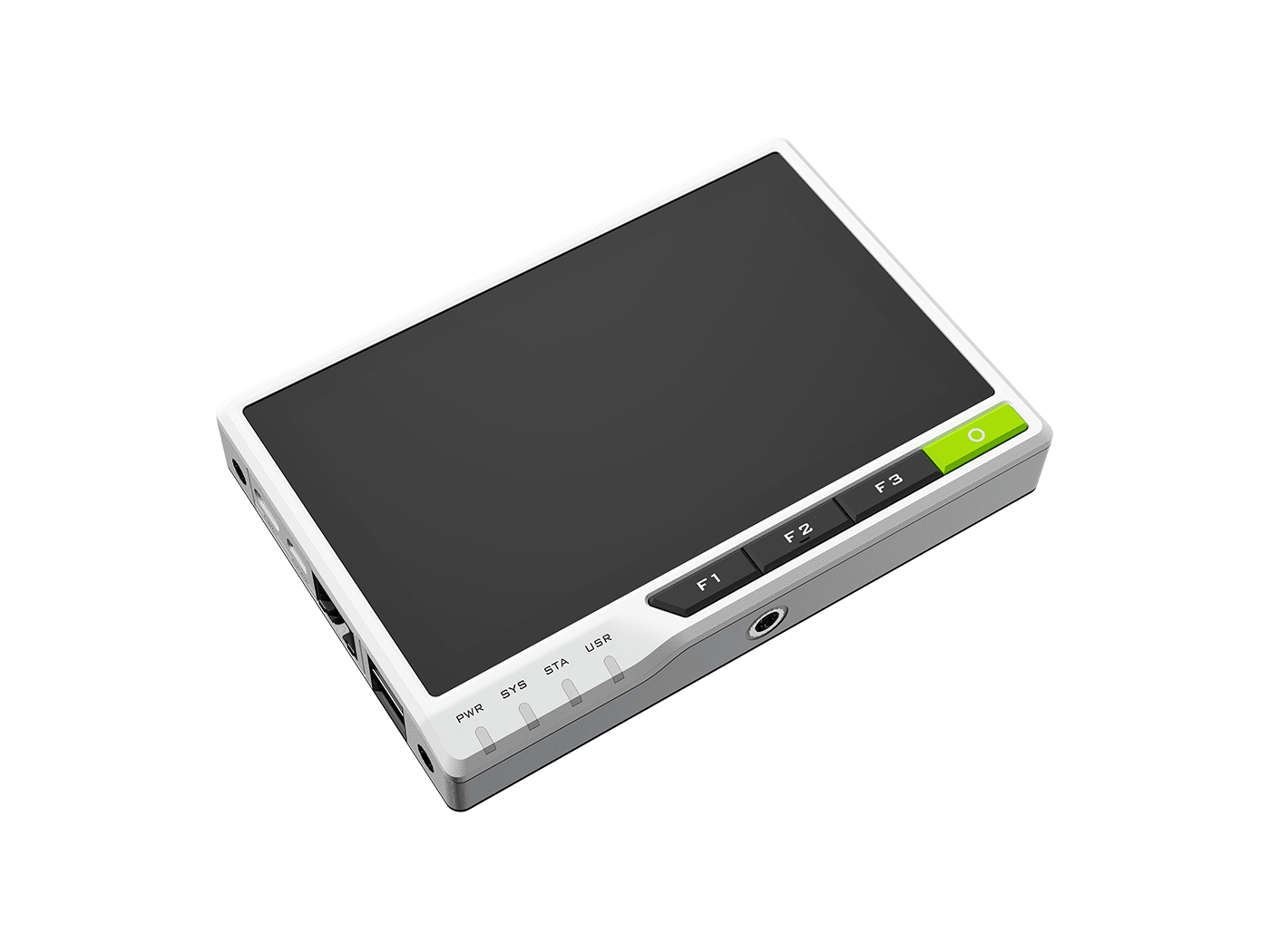

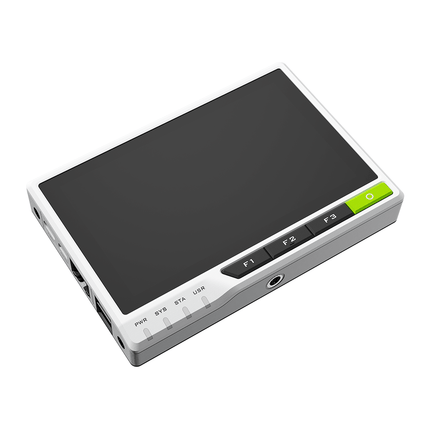

    reTerminal - Embedded Linux Raspberry Pi CM4  5" Capacitive Multi-Touch Screen

    reTerminal is powered by a Raspberry Pi Compute Module 4 (CM4) which is a Quad-Core Cortex-A72 CPU running at 1.5GHz and a 5-inch IPS capacitive multi-touch screen with a resolution of 720 x 1280. It has a sufficient amount of RAM (4GB) to perform multitasking and also has a sufficient amount of eMMC storage (32GB) to install an operating system, enabling fast boot-up times and a smooth overall experience. It has wireless connectivity with dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0 BLE.

    Features

    • Integrated modular design with high stability and expandability
    • Powered by Raspberry Pi Computer Module 4 with 4GB RAM & 32GB eMMC
    • 5-Inch IPS capacitive multi-touch screen at 1280 x 720 and 293 PPI
    • Wireless connectivity with dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0 BLE
    • High-speed expansion interface and rich I/O for more expandability
    • Cryptographic co-processor with secure hardware-based key storage
    • Built-in modules such as accelerometer, light sensor, and RTC
    • Gigabit Ethernet Port and Dual USB 2.0 Type-A ports

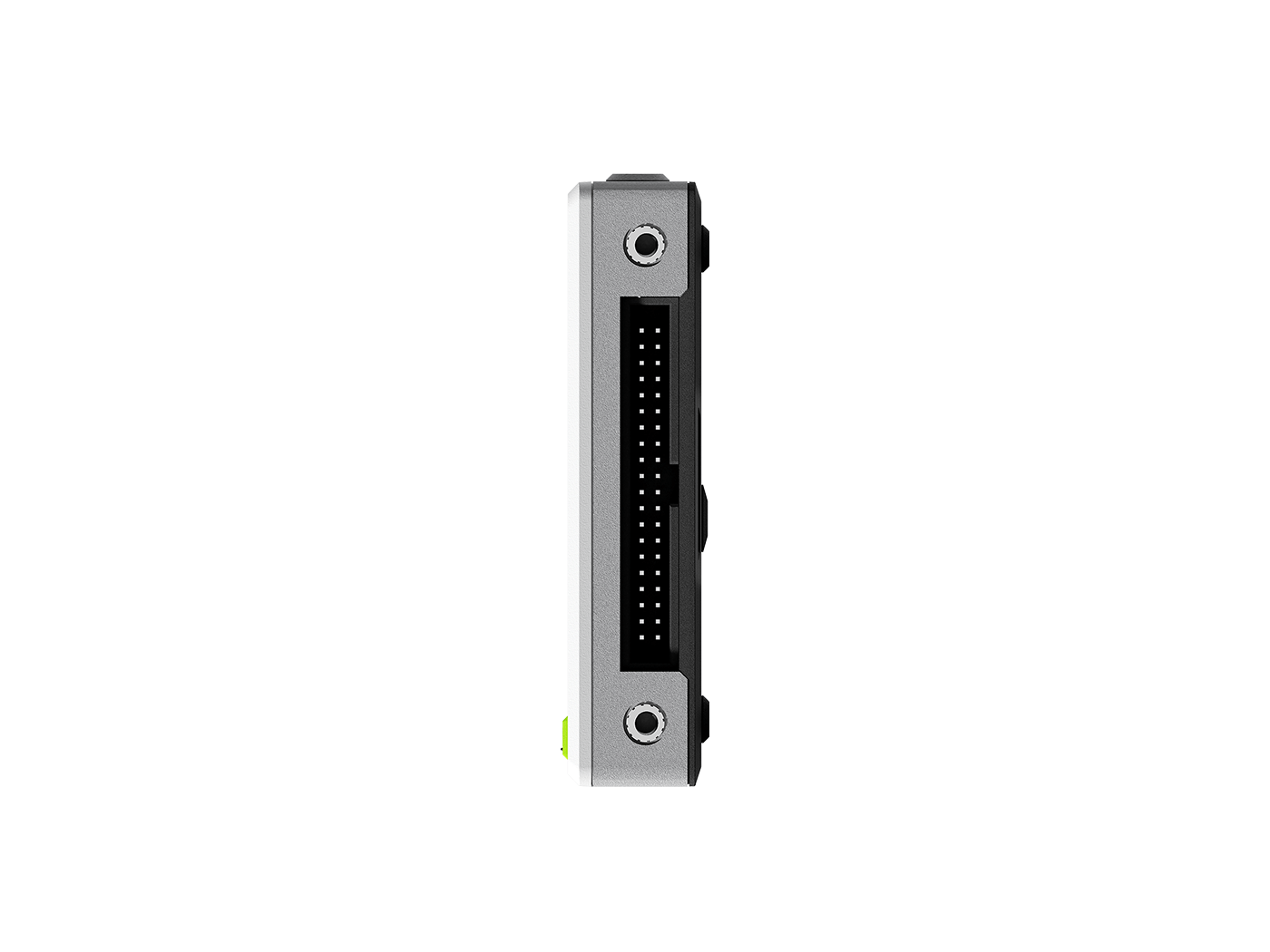

    • 40-Pin Raspberry Pi compatible header for IoT applications

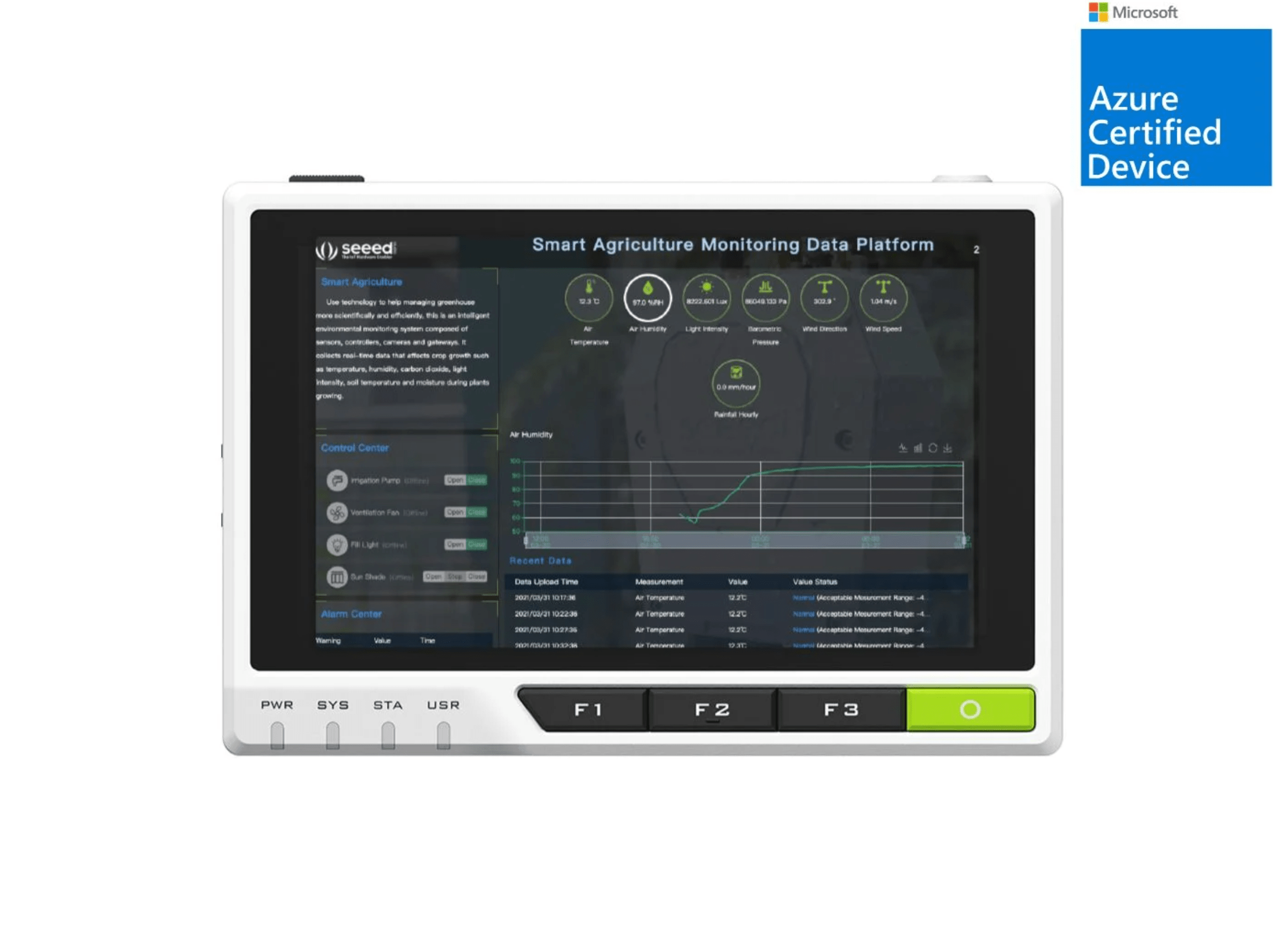

    • reTerminal is Microsoft Azure Certified

    Description

    Introducing reTerminal, a new member of our reThings family. This future-ready Human-Machine Interface (HMI) device can easily and efficiently work with IoT and cloud systems to unlock endless scenarios at the edge.



    reTerminal is powered by a Raspberry Pi Compute Module 4 (CM4) which is a Quad-Core Cortex-A72 CPU running at 1.5GHz and a 5-inch IPS capacitive multi-touch screen with a resolution of 720 x 1280. It has sufficient amount of RAM (4GB) to perform multitasking and also has sufficient amount of eMMC storage (32GB) to install an operating system, enabling fast boot-up times and a smooth overall experience. It has wireless connectivity with dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0 BLE.

    reTerminal consists of a high-speed expansion interface and rich I/O for more expandability. This device has security features such as a cryptographic co-processor with secure hardware-based key storage. It also has built-in modules such as an accelerometer, light sensor, and an RTC (Real-Time Clock). reTerminal has a Gigabit Ethernet Port for faster network connections and also has dual USB 2.0 Type-A ports. The 40-pin Raspberry Pi compatible header on the reTerminal opens it for a wide range of IoT applications.

    reTerminal is shipped with Raspberry Pi OS out-of-the-box. So, all you have to do is connect it to power and start building your IoT, HMI, and Edge AI applications right away!

    Also, reTerminal is Microsoft Azure Certified!



    There are limitless possibilities with the reTerminal. It can be placed at the heart of an IoT/Edge system where you could connect a number of sensors to the reTerminal via different wireless protocols such as LoRa, Zigbee, Wi-Fi, Bluetooth, Sub-1G, and the reTerminal connected to the cloud via Ethernet, Wi-Fi, 5G/ 4G or connected to an edge server to store and process the data.

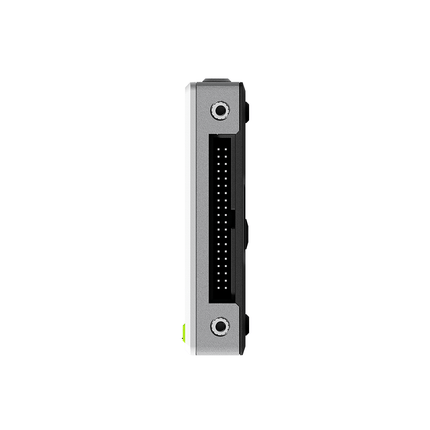

    On the other hand, it has a modular design where you can expand this system by connecting different modules to the reTerminal via the 40-Pin GPIO connectors and enable even more applications. You can easily plug modules such as mic array & speaker, camera, industrial I/O, LoRaWAN, 5G/4G, and PoE to realize your ideas! It will be supported by an active community as well!

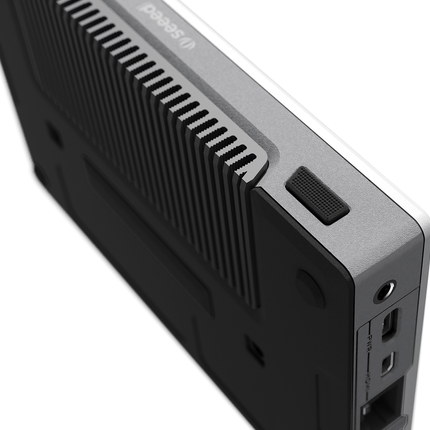

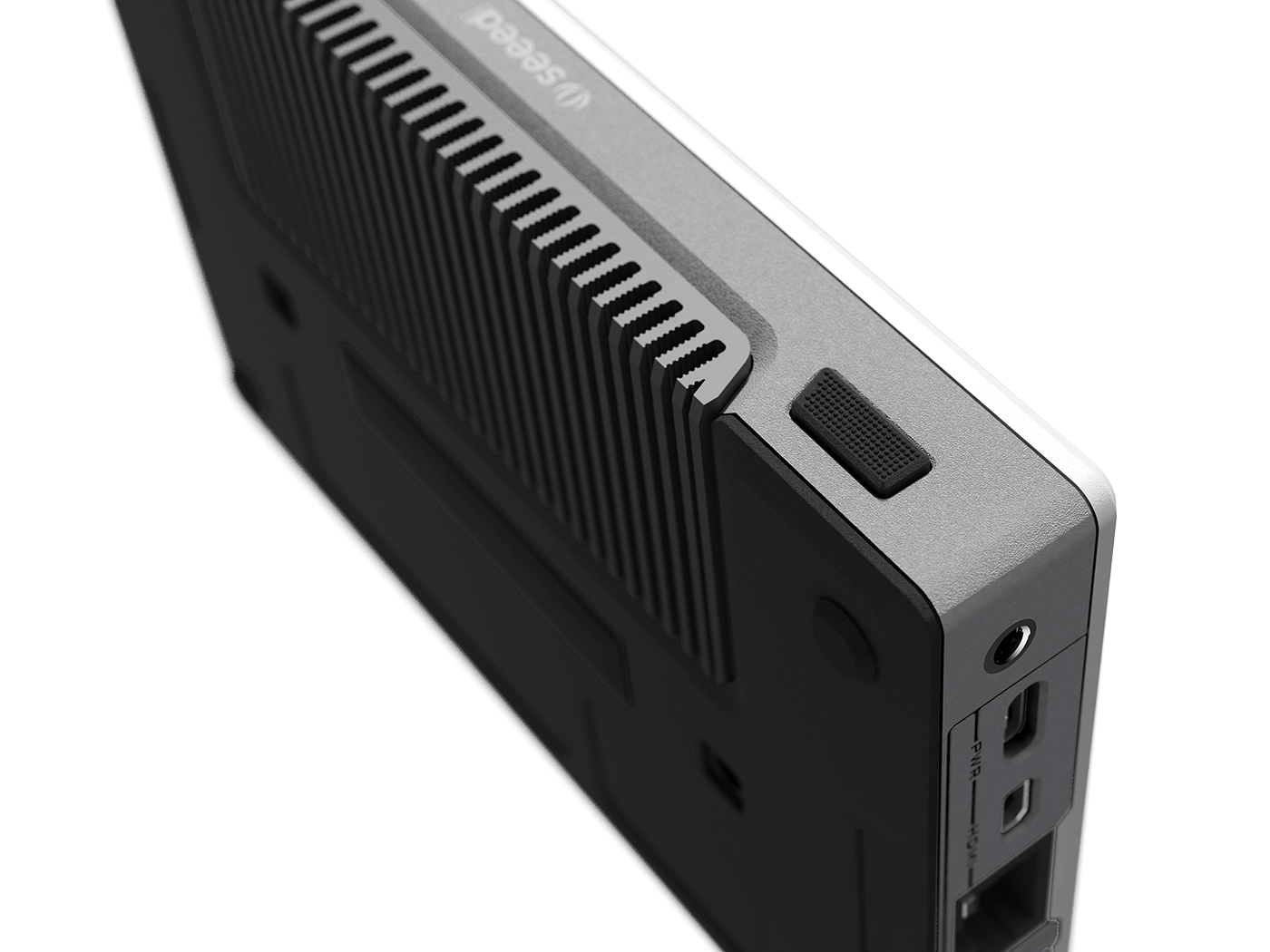

    reTerminal is packed with rich interfaces on the side of the device while keeping the design to a minimum. It has a USB Type-C port for power input, a Gigabit Ethernet port for faster and reliable network access, a micro-HDMI interface that supports video output at 4K resolution with a frame rate of 60fps, and also has 2 USB Type-A ports.

    Furthermore, it also has a high-speed expansion interface with a PCIe 1-lane Host, Gen 2 (5Gbps), USB 2.0 port, 28 GPIOs, and PoE. You can use this interface for industrial and more advanced scenarios!

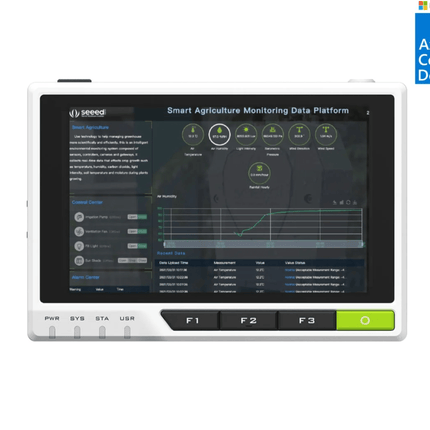

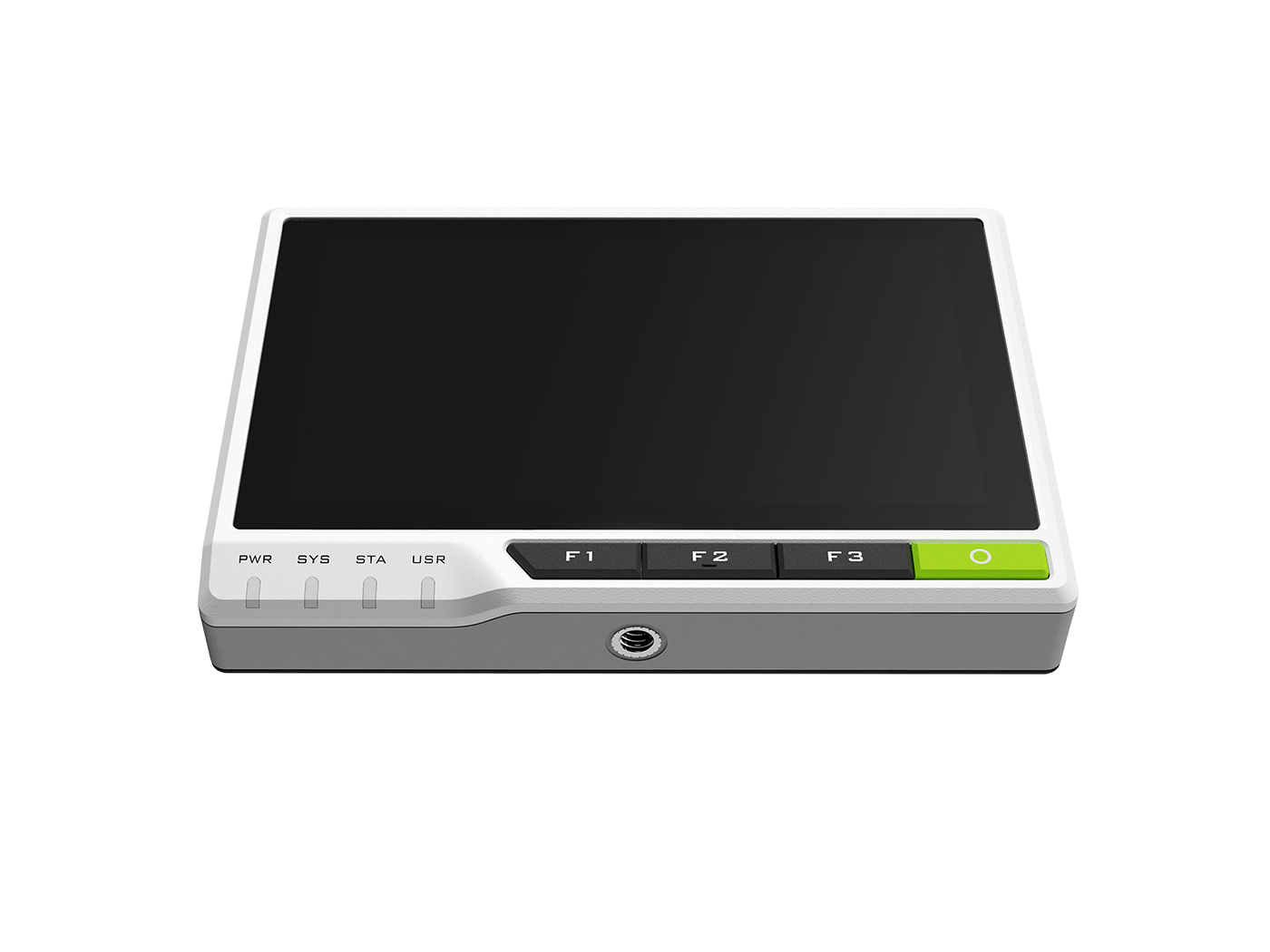

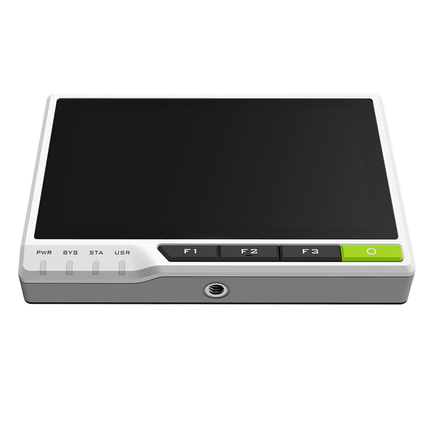

    reTerminal also features a 5-Inch IPS capacitive multi-touch screen with a resolution of 1280 x 720 and a pixel density of 293 PPI, providing high definition and rich colors. This resolution is 1.6 times higher than the most common resolution for 5-inch displays, which is 800 x 480. Also, comparing to TN displays, the IPS display on the reTerminal offers better viewing angles as well!

    reTerminal has security features such as a cryptographic co-processor with secure hardware-based key storage. It also has protected storage for up to 16 keys, certificates, or data. It provides hardware support for symmetric sign, verify, key agreement – ECDSA. It has hardware support for symmetric algorithms, networking key management and secure boot.

    Applications

    • Embedded Linux Terminal Device
    • Smart Factory
    • Smart Warehouse
    • Smart Home
    • Machine Learning and Edge AI Applications
    • IoT Controller
    • Hand-Held Device

    Specifications

    Specification Details
    Platform Processor Broadcom BCM2711 quad-core Cortex-A72 (ARM v8)
    Frequency 64-bit SoC @ 1.5GHz
    Memory Capacity 4GB
    Technology LPDDR4 with on-die ECC
    eMMC Capacity 32GB
    Wireless Wi-Fi 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac
    Bluetooth Bluetooth 5.0, BLE
    Display LCD 5-inch 720x1280 LCD
    Touch Panel Capacitive touch panel (support multi-touch)
    Video HDMI 1 x Micro HDMI output (up to 4Kp60 supported)
    CSI 1 x 2-lane MIPI CSI camera interface
    Multimedia H.265 (4Kp60 decode)
    H.264 (1080p60 decode,1080p30 encode)
    OpenGL ES 3.0 graphics
    Built-In Modules Real-Time Clock NXP Semiconductors PCF8563T
    Low backup current; typical 0.25μA at VDD = 3.0 V and Temperature = 25 ℃
    Accelerometer STMicroelectronics LIS3DHTR
    16-bit, ±2g/±4g/±8g/±16g dynamically selectable full scale
    Encryption Microchip ATECC608A
    Secure Hardware-Based Key Storage, Asymmetric Sign, Verify, Key Agreement
    Light Sensor Levelek LTR-303ALS-01
    Digital light sensor
    Internal IO
    Expansion
    Microchip MCP23008-E
    Buzzer ≥85dB @10cm 2700±300Hz
    External I/O GPIOs Up to 5 × UART
    Up to 5 × I2C
    Up to 5 × SPI
    1 × SDIO interface
    1 × DPI (Parallel RGB Display)
    1 × PCM
    1 × PWM channel
    Up to 3× GPCLK outputs
    Vertical expansion
    interface
    1 × PCIe 1-lane Host, Gen 2 (5Gbps)
    1 × USB 2.0 port (highspeed)
    26 x GPIOs
    POE
    Power Recommended 5V@4A DC
    Mechanical Dimensions 140mm x 95mm x 21mm
