RS232 RS485 Ethernet Converter, Serial Ethernet to Modbus Converter USR-TCP232-410S

$59.00AUD
Save $30
(Exc. GST)

Available in stock

$ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST

$ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)

$ We Accept Purchase Orders & Net30 Payment for Educational Institutes

RS232 RS485 Ethernet Converter，Serial Ethernet to Modbus Converter, USR-TCP232-410S

Introduction of RS232 RS485 Ethernet Converter

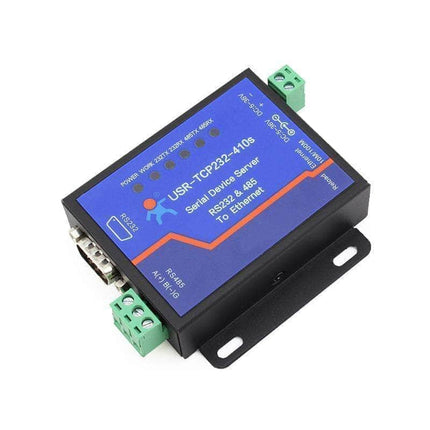

USR-TCP232-410S is a dual serial RS232 RS485 Ethernet converter, which is based on TI Cortex-M4 solution & integrated TCP/IP protocol stack.

Advanced Function of RS232 RS485 Ethernet Converter

Industrial Solution: TI Cortex M4 Solution, -40~85C
Web Server: Web socket/ Web to Serial
Modbus Gateway: Modbus RTU to Modbus TCP / Modbus Polling
Flow Control: CTS/RTS, XON/XOFF
2 Network links, each serial supports sending data to two target servers
Network Printing
N series supports hardware watchdog, never crash

Basic Feature of RS232 RS485 Ethernet Converter

Multiple indicator lights for convenient debugging
Power-line terminal for industrial application
ARM kernel and TCP/IP protocol stack
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
TCP Server, TCP Client, UDP, UDP Server and HTTPD Client work mode
Two ports can work independently at the same time
Support virtual serial port and provide corresponding software USR-VCOM
Serial baud rate from 600bps to 230.4K bps; Check bit of None, Odd, Even, Mark and Space
DNS and DHCP supported
Provide PC TCP/IP SOCKET programming example,VB,C++,Delphi,Android,IOS
Built-in web page; also can customise web page for users
Reload button, one key to restore default settings
RJ45 with Link/Data indicator light, built-in isolation transformer and 2 KV electromagnetic isolation
The global unique MAC address bought from IEEE, user can define MAC address
Upgrade firmware via network

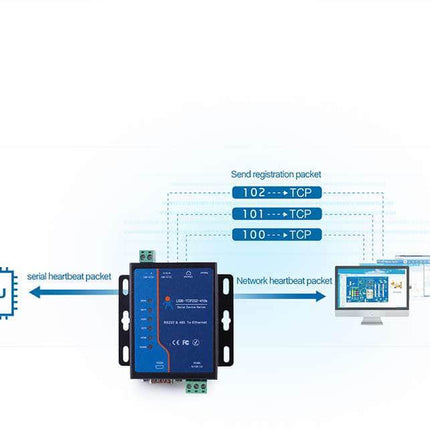

Keepalive, rapidly detect dead links
Support account and password can be used to page login and network settings
Support one channel Websocket, realise bidirectional transparent transmission between web page and serial 0
Support UDP broadcast function, send and receive data from all IP in the network

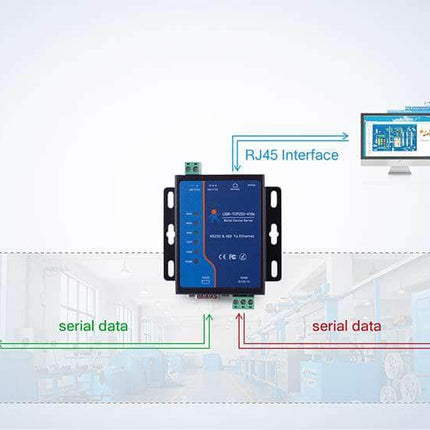

Ethernet Serial Converters Application Field

Industrial data transmission, industrial automation
security and protection monitoring, public security
Smart home, power control, environmental monitoring, intelligent agriculture
Door check on work attendance system, POS system, rice selling system
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring

Note: This kit includes the AU power adapter and DB9 cable.

Specifications:

System Information
Processor Cortex-M4
Basic Frequency 120MHz
Flash 512K byte

Ethernet
Port Number 1
Interface Standard RJ45
Rate 10/100 Mbps MDI/MDIX, auto switch between cross and direct connection
Protection 2KV electromagnetism isolation, shell insulation blocking
Network Protocol IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web socket, Httpd client
Receive Buffer Max 16k bytes buffer

Serial
Port Number 2 (1*RS-232, 1*RS-485, can work at the same time)

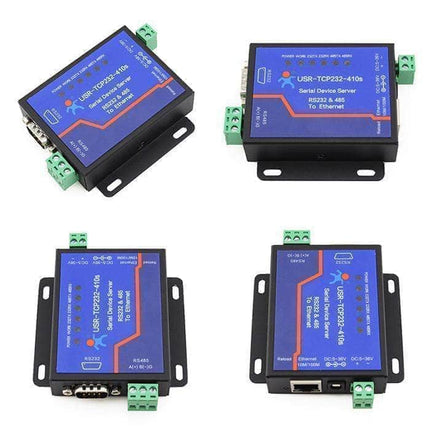

Interface Standard RS-232: DB9 pin type, RS-485: 3 wire (A+, B-, G)
Data Bits 5, 6, 7, 8
Stop Bit 1, 2
Check Bit None, Even, Odd, Space, Mark
Baud Rate RS-232: 600 bps ~ 230K bps, RS-485: 600 bps ~ 1M bps
Flow Control RTS/CTS
Buffer Send and receive 2k bytes respectively
Protection RS-485: anti-static 2KV, lightning protection
RS-485 Pull-up and Pull-Down Resistor 2.2 KΩ

Software
Virtual Serial（USR-VCOM） Windows 2000 or higher (32 bit/64 bit)
Configuration Built-in webpage, computer set-up software, serial command

Basic Parameter
Size 80 x 62 x 24 mm
Operating Temp. -40 ~ 85°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH
Input Voltage DC 5 ~ 36V
Working Current 86.5mA(aver)@ 5V
44.3mA(aver)@ 12V
Power <1W
