Industrial RS232/485/422 To CAN Isolated Converter Modbus RTU

  • $46.00
  • Save $7
  • (Exc. GST)


  • In stock with a short lead time. Ship within 5-12 days

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

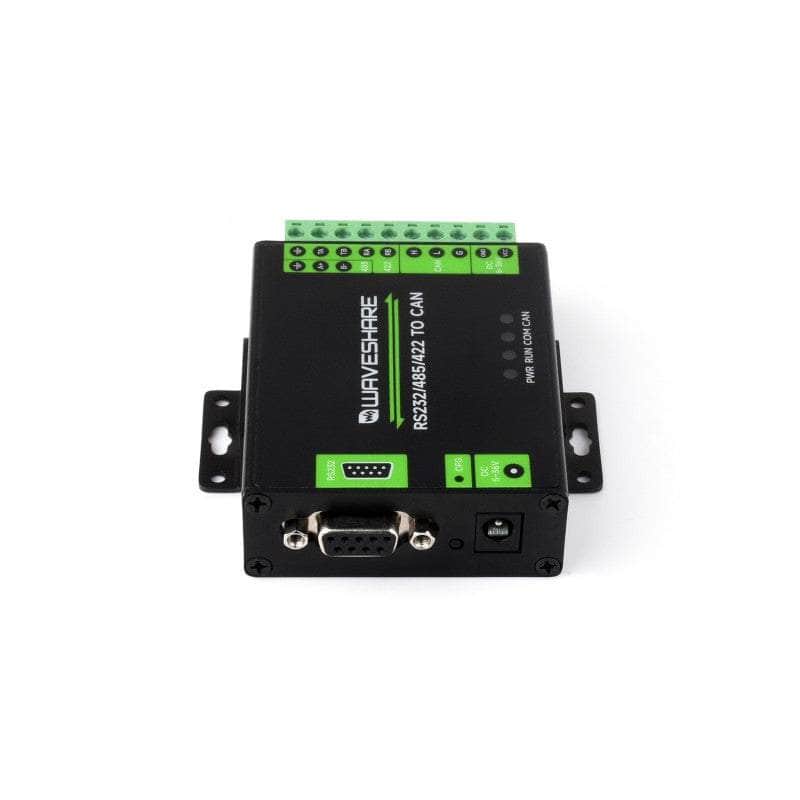

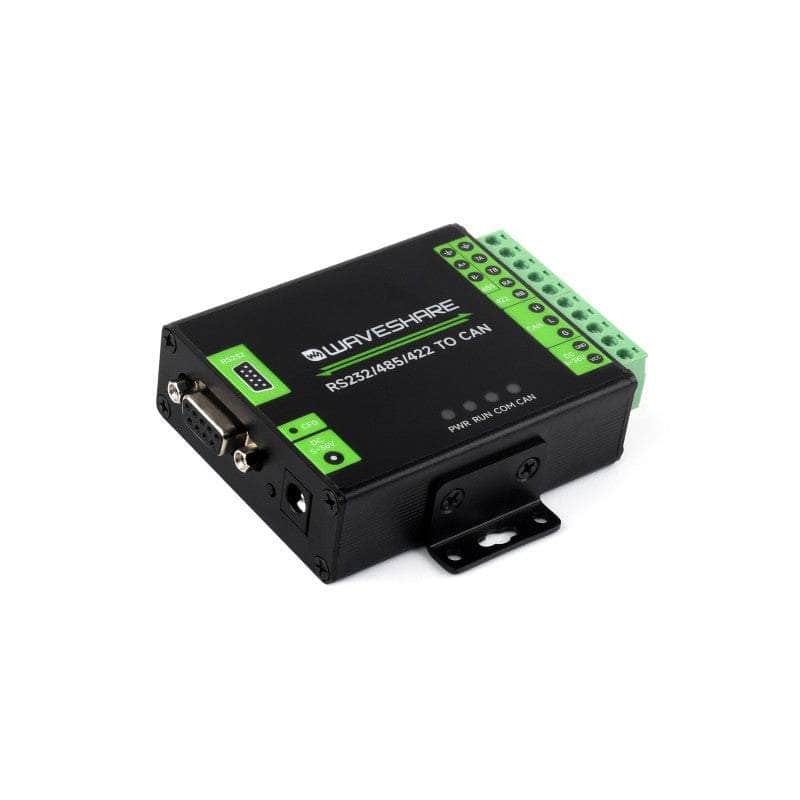

    Industrial RS232/485/422 To CAN Isolated Converter Modbus RTU

    RS232/485/422 To CAN Industrial Isolated Converter, Supports Modbus RTU Conversion, Multiple Protection Circuits

    Multiple Industrial Protections Such As Galvanic Isolation, Lightningproof Protection, And ESD Protection. Suitable For Industrial Control Equipment And/Or Applications With High Communication Requirement



    Features:

    • Supports data communication and conversion between RS232/485/422 and CAN interfaces
    • Compliant with CAN 2.0B (extended frame) specification, compatible with CAN 2.0A (standard frame) specification; Compliant with ISO 11898-1/2/3 standard
    • CAN baud rate: 10kbps~1000kbps, configurable
    • Supports 14 sets of configurable filters, can only receive CAN bus data in specific range and type
    • Supports 4 operating modes: transparent conversion, transparent with identifiers conversion, format conversion, and Modbus RTU protocol conversion
    • Up to 1000 frames CAN buffer for buffering transmission data to prevent data loss
    • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
    • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
    • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
    • Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection
    • Onboard 120R terminal resistor on the RS485/RS422 port, configurable by jumper
    • Supports device firmware upgrade via RS232/485/422, more convenient for firmware customization
    • Supports setting operation parameters via configuration software or serial commands, capable of saving settings after power off
    • Onboard power supply screw terminal, allows 5V~36V DC wide range input
    • 4 LEDs for indicating the power and transceiver status
    • Industrial grade metal case, supports wall-mount and rail-mount installation, solid and beautiful, easy to install

    Specifications:

    PRODUCT TYPE Active digital isolated RS232/485/422 to CAN converter
    POWER SUPPLY INTERFACE Power supply 5~36V DC
    Protection Anti-reverse
    DEVICE PORT RS232/485/422, CAN
    ISOLATED CAN Connector Screw terminal
    Direction control Hardware automatic control
    Resistor Onboard 120R matching resistor
    Baud rate 10kbps~1000kbps
    ISOLATED RS232 Connector DB9 female
    Transmission distance about 15m
    Transmission mode point-to-point
    Baud rate 1200bps~460800bps
    ISOLATED RS485/422 Connector Screw terminal
    Direction control Hardware automatic control
    Protection TVS diode, surge protection & ESD protection, power isolation and signal isolation
    Resistor Onboard reserved 120R matching resistor, NC by default, enabled via jumper
    Transmission mode Point-to-multipoints (485 mode: up to 32 nodes, it is recommended to use repeaters for 16 nodes or more; 422 mode: up to 256 nodes, it is recommended to use repeaters for 16 nodes or more)
    Baud rate 1200bps~460800bps
    INDICATORS PWR Red power indicator, lights up when voltage is detected
    RUN System operating indicator, turns off if CAN bus is abnormal
    COM RS232/485/422 RX indicator, lights up when RS232 or 485 or 422 port receives data
    CAN CAN RX indicator, lights up when CAN port receives data
    OPERATING ENVIRONMENT Temperature range -15 ~ 70℃

    Primary Function:

    Achieves Data Transmission And Conversion Between RS232/RS485/RS422 And CAN Interfaces
    Supports Wide Range Baud Rate

    RS232/485/422 Communication Baud Rate: 1200 ~ 460800bps
    CAN Communication Baud Rate: 10kbps ~ 1Mbps

    Supports Four Operating Modes:

    Transparent Conversion, Transparent With Identifiers Conversion, Format Conversion, And Modbus RTU Protocol Conversion
    Supports Host Computer Configuration

    Galvanic Isolated Design:

    • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
    • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

    Multiple Protection, Safe And Stable:

    Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.

    Interface Introduction:

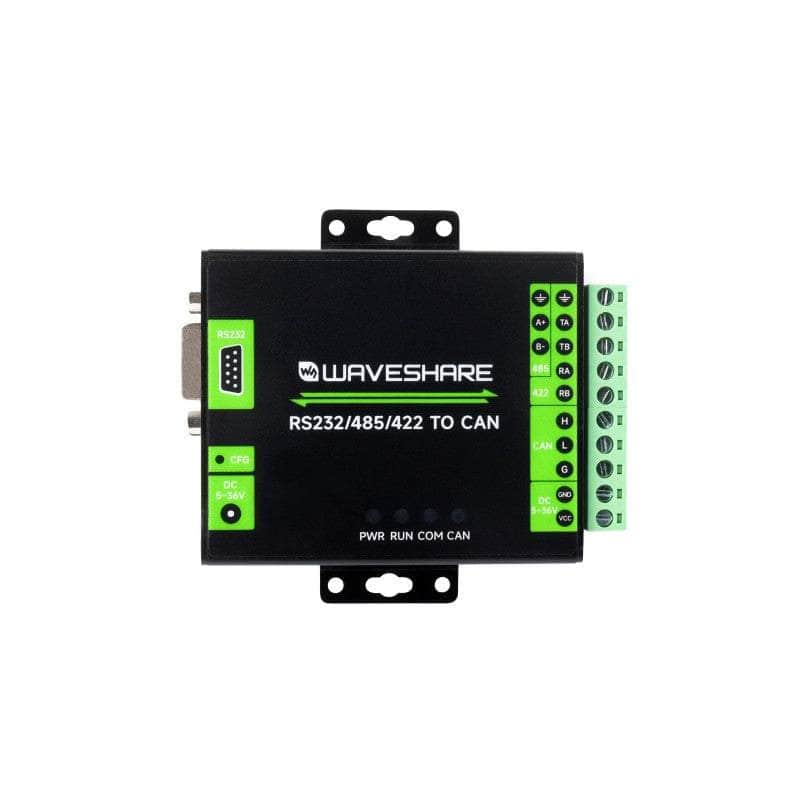

    Pin Definition:



    Wall-Mount And Rail-Mount Support:


    Application Examples:

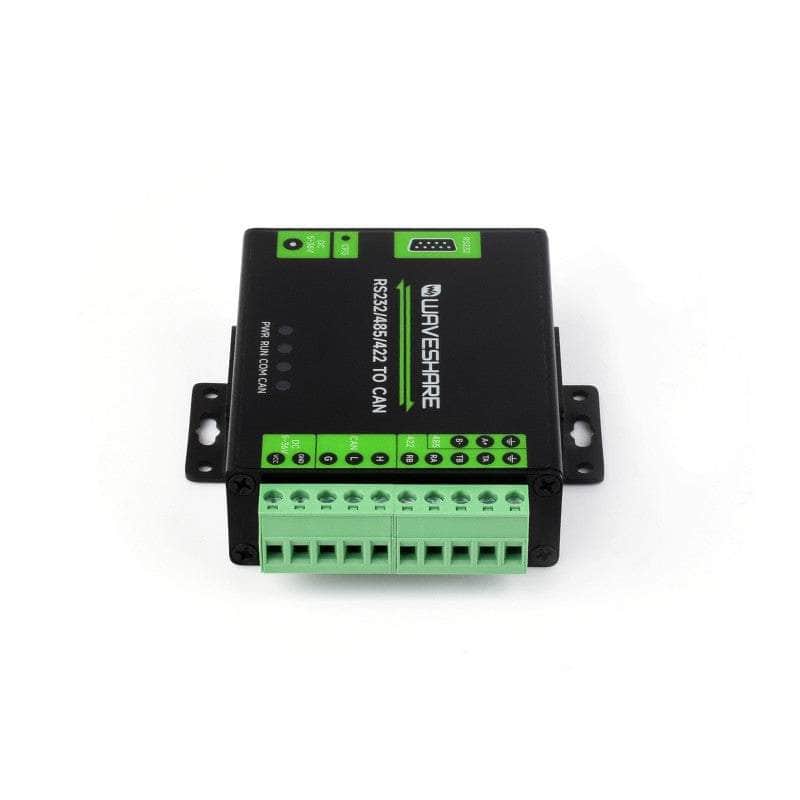

    Product Show:


    Outline Dimensions:
