Seeed Grove - Solid State Relay V2

  • $20.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

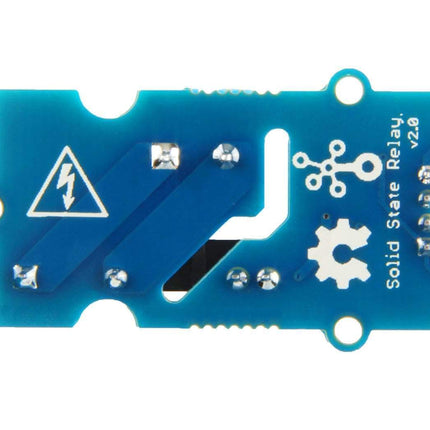

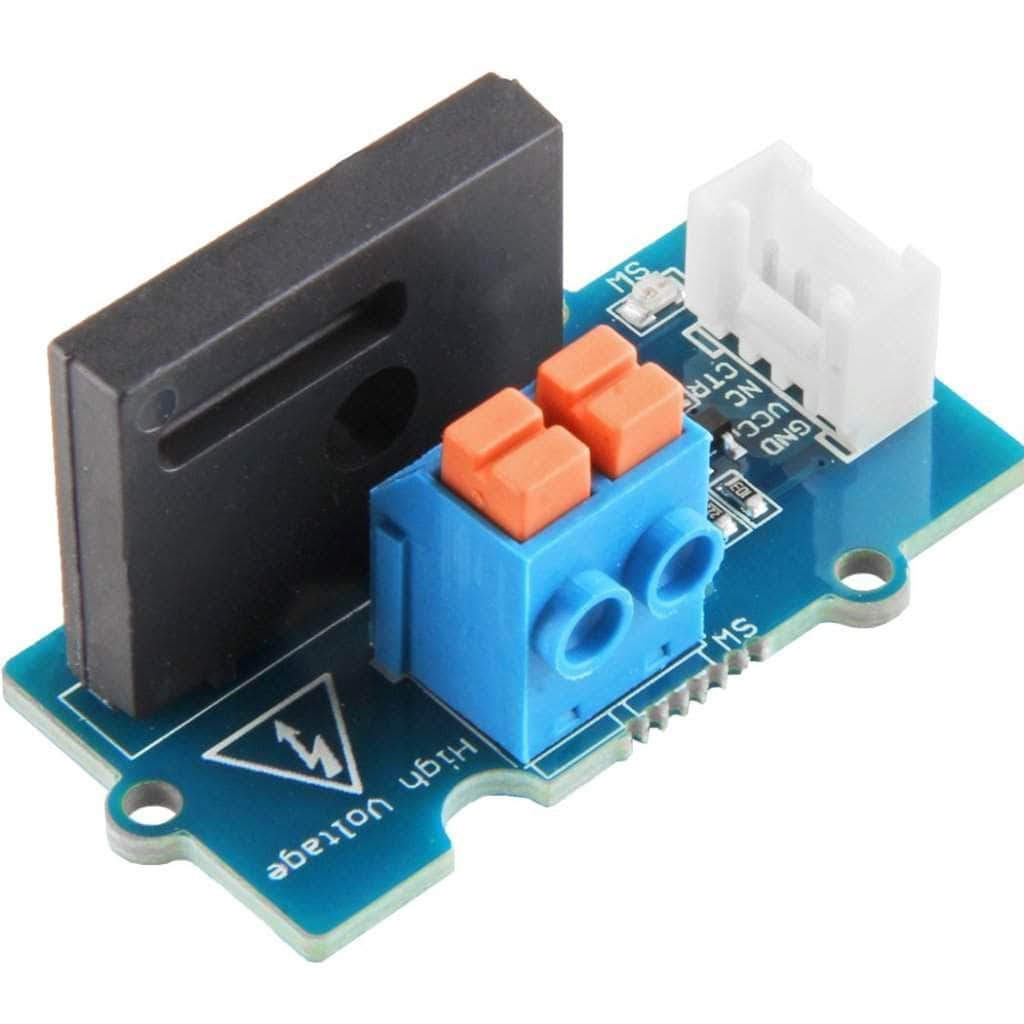

  • Seeed Grove - Solid State Relay V2

    Instead of using coil, packaged solid-state relays(SSR) use power semiconductor devices such as thyristors and transistors, which provide a much faster-switching speed than the mechanical relays. The Grove - Solid State Relay V2 is based on the high-quality G3MC202P module, which allows you to use a 5VDC to control MAX. 240VAC. With the help of Grove interface, it becomes very convenient to use the SSR with your Arduino.

    1535461902750059.png1*Please be careful when working with high voltage AC load, please do not operate with power on.

    2*This relay only works with AC load, if you use DC load, once the relay is turned on, it will always stay on.
    3*Due to the leakage current, we do not recommend you to use this relay with low power appliance.

    Features

    Advantages over mechanical relays:

    1-Solid-state relays have much faster-switching speeds compared with electromechanical relays, and have no physical contacts to wear out.

    2-Totally silent operation.

    3-No physical contacts mean no sparking, allows it to be used in explosive environments, where it is critical that no spark is generated during switching.

    4-Increased lifetime, even if it is activated many times, as there are no moving parts to wear and no contacts to pit or build up carbon.

    5-Compact, thin-profile SSR of monoblock construction with an all-in-one lead frame incorporates a PCB, terminals and heat sink, which is much smaller than mechanical relays, and can integrate more channels.

    Disadvantages:

    1-When closed, higher resistance (generating heat), and increased electrical noise.

    2-When open, lower resistance, and reverse leakage current.

    3-Only works for AC laod.

    Typical Applications

    • Operations that require low-latency switching, e.g. stage light control.

    • Devices that require high stability, e.g. medical devices, traffic signals.

    • Situations that require explosion-proof, anticorrosion, moisture-proof, e.g. coal, chemical industries.

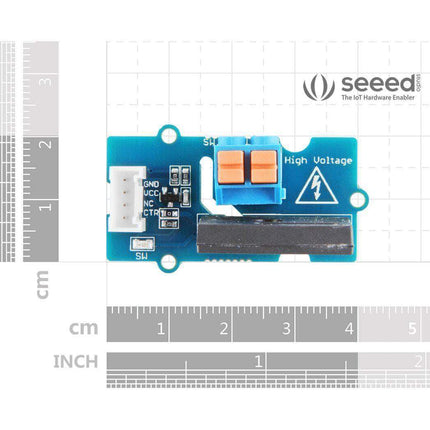

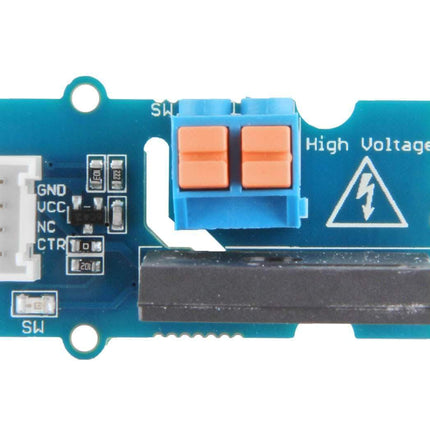

    Pin Map

    Technical Details

    Dimensions 40mm x 20mm x 25mm
    Weight G.W 131g
    Battery Exclude
    Operating Input Voltage 4~6V
    Rated Input Voltage 5V
    Load Voltage Range 75 to 264 VAC 50/60 Hz
    Rated Load Voltage 100 to 240 VAC 50/60 Hz
    Load Current 0.1 to 2 A
    Leakage Current 1.5 mA max. (at 200 VAC)
    Insulation Resistance 1,000 MΩ min. (at 500 VDC)
    Operating Temperature -30°C to 80°C (with no icing or condensation)
    Operating Humidity 45% to 85%RH
    Zero Cross support

    Part List

    Grove - Solid State Relay V2 1
    Grove Cable 1

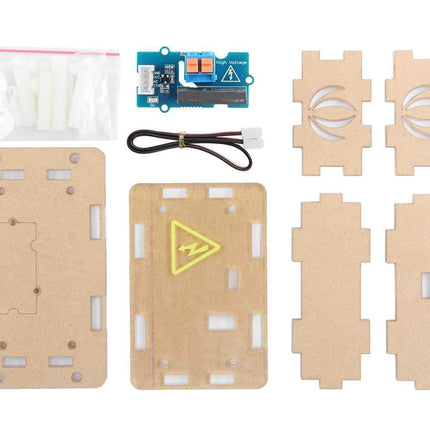

    A set of Acrylic Shell 1

    ECCN/HTS

    ECCN EAR99
    HSCODE 85364110
