Seeed Studio Grove - Moisture Sensor
Seeed Studio Grove - Moisture Sensor
The Grove - Moisture Sensor can be used to detect the moisture of soil, to judge if there is dampness around the sensor. It can be used to decide if the plants in a garden need watering. It can be used in gardens to automate watering plants. It can be used very easily by just inserting the sensor into the soil and reading the output using ADC.
Features
-
Grove compatible interface
-
Easy to use
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
Technical Details
Dimensions | 60mm x 20mm x 6.35mm |
Weight | G.W 8g |
Battery | Exclude |
Operating voltage | 3.3~5V |
Operating current | 35mA |
Sensor Output Value in dry soil | 0~ 300 |
Sensor Output Value in humid soil | 300~700 |
Sensor Output Value in water | 700 ~ 950 |
PCB size | 2.0cm X 6.0cm |
Operating voltage | 3.3~5V |
Operating current | 35mA |
Sensor Output Value in dry soil | 0~ 300 |
Sensor Output Value in humid soil | 300~700 |

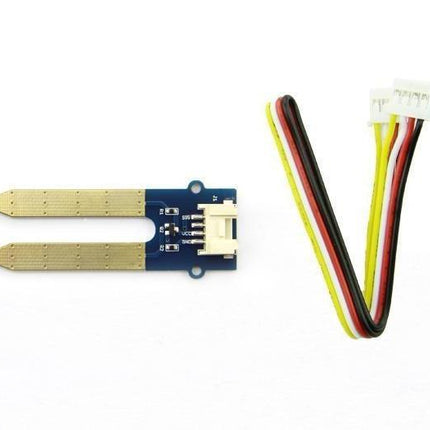

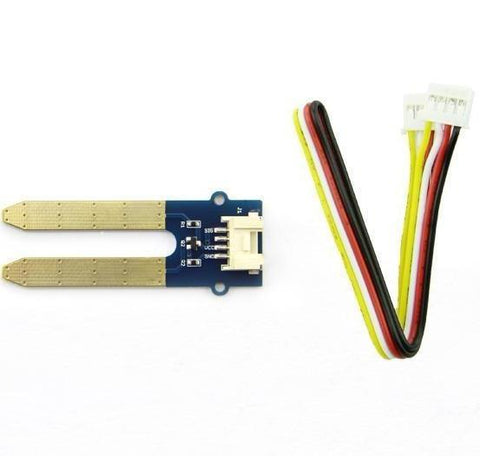

Part List
Grove - Moisture Sensor | 1 |
Grove Cable | 1 |
