SenseCAP LoRaWAN Gateway Industrial Outdoor AU915MHz with Cellular 4G

  • $549.00
  • Save $50
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

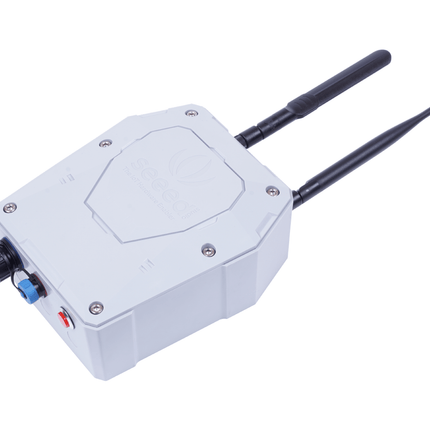

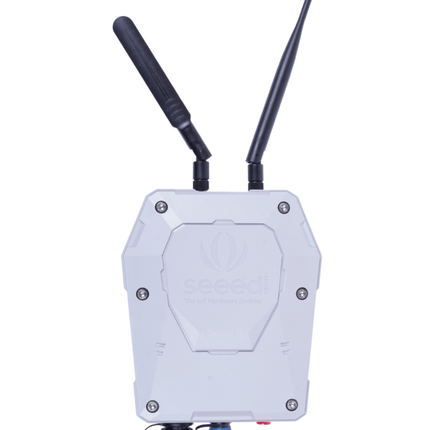

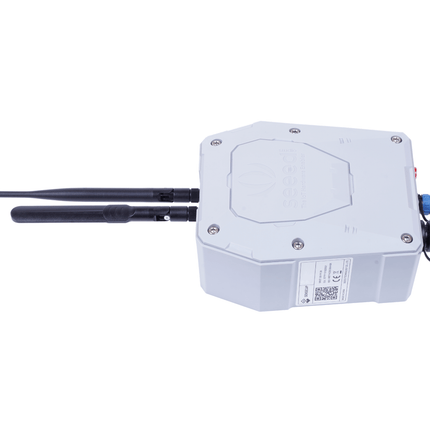

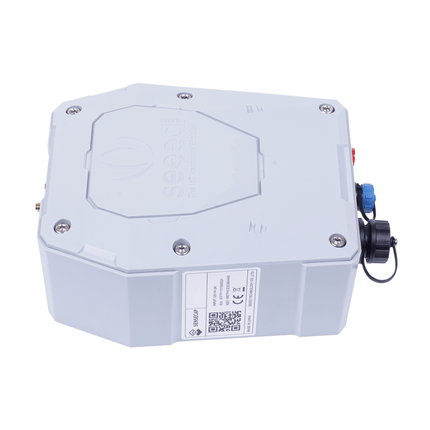

    SenseCAP LoRaWAN Gateway Industrial Outdoor AU915MHz with Cellular 4G

    Seeed Studio SenseCAP LoRaWAN® Gateway is based on the LoRaWAN v1.0.2 protocol, ideal for low-power, long-distance environmental data collection, and monitoring. The SenseCAP LoRaWAN gateway can be used for collecting data from different sensor nodes and transmitting the data to the SenseCAP Portal via 4G or Ethernet cable. Equipped with a high-performance processor and a telecom-operator-level LoRa chip, this gateway ensures stable and high performance in large-scale networks. The gateway is housed in a robust, waterproof IP66 enclosure, making it suitable for industrial applications in outdoor severe environments.

    Features

    • High-performance Cortex A8 1GHz processor, Linux system.
    • Support LoRaWAN protocol Class A, support ultra-low-power SenseCAP Sensor
    • Support 8 RX, 1 TX transceiver, maximum transmit power 27dBm
    • Support multiple ISM bands: CN470, EU868, US915
    • Support multiple methods to access the network: 4G, Ethernet
    • Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in urban scene
    • Industrial grade protection: IP66 enclosure, temperature -40℃~70℃, suitable for outdoor applications
    • Easy deployment, and rapid provisioning (see the "how to install" video below)





    Specifications

    General Parameters
    Product Model LoRa-G-915-E/4G
    CPU TI AM3358 Cortex-A8 1GHz
    System Linux Debian
    RAM DDR3 512MB
    Memory 8GB eMMC
    Channel Plan 902~928MHz
    LoRa Power Output 25dBm
    LoRa Sensitivity -139dBm (SF12BW125)
    Ethernet 100Mbps FE (RJ-45)
    4G Band

    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28

    LTE-TDD: B38/B39/B40/B41

    WCDMA: B1/B2/B4/B5/B6/B8/B19

    GSM: 850/900/1800/1900MHz

    4G Features

    Support non-CA Cat 4 FDD and TDD

    LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL)

    LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL)

    UMTS Features

    Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA

    DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL)

    WCDMA: Max 384Kbps (DL), Max 384Kbps (UL)

    LoRa Antenna

    2.5dBi gain / Vertical polarization / Omni-directional / SMA-J connector

    4G Antenna

    0-4dBi gain / Linear polarization / Omnidirectional / SMA-J connector

    LED Indicator Indicating network condition (online/ offline)
    Grounding Reserved 1 screw hole for GND
    Power Consumption 3.6W
    Power Supply DC 12V/2A
    IP Rating IP66
    UV Resistance anti-aging (from rain/sun exposure): UL746C F1
    Enclosure Material PC
    Operating Temperature -40 ℃ to +70 ℃
    Operating Humidity 0 to 100 %RH (non-condensing)
    Installation Method Wall or pole mounting
    Device Weight 777g

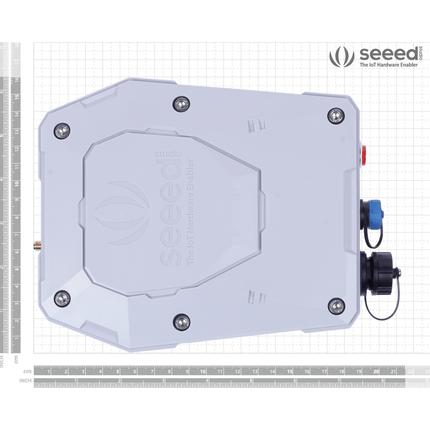

    Device Dimensions 256mm * 160mm * 81mm
    Certification CE, FCC, RoHS
