SenseCAP S200 Wind Speed and Direction Sensor

  • $499.00
  • Save $50
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

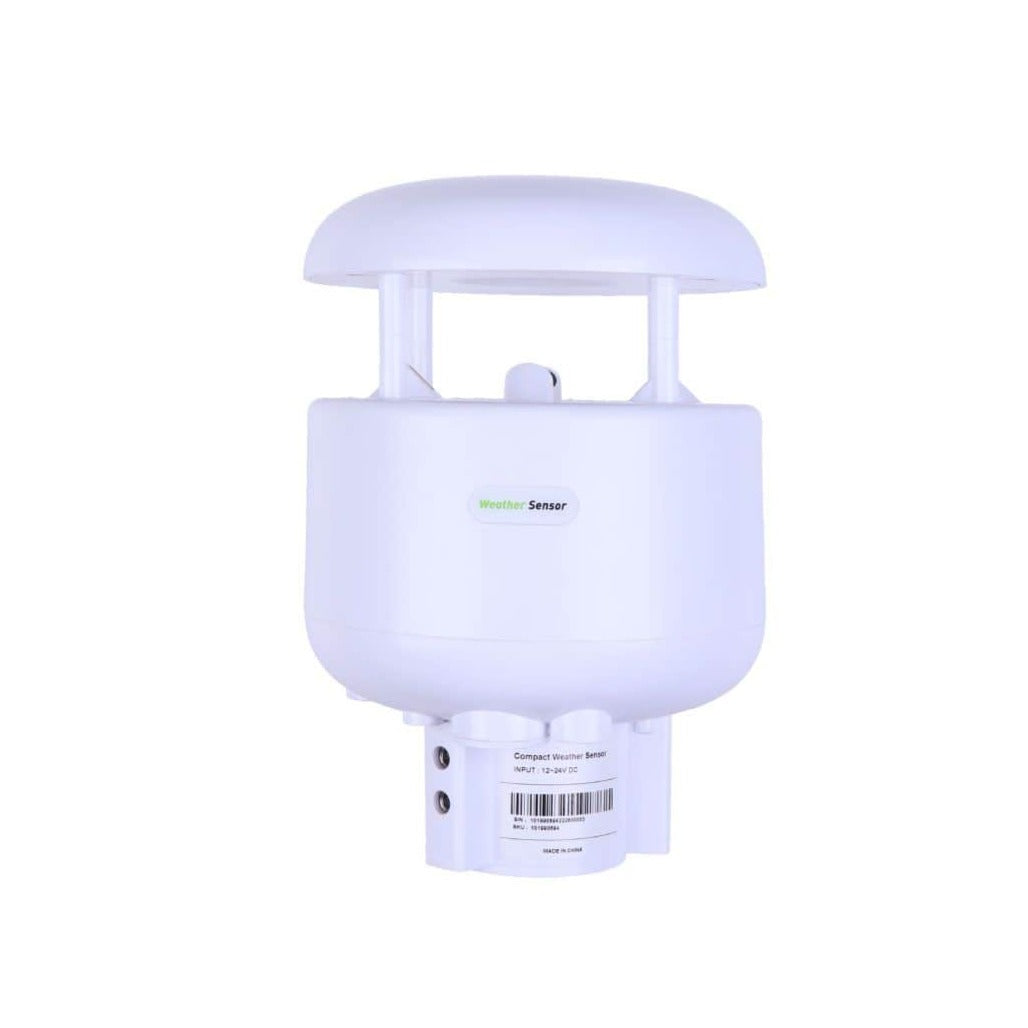

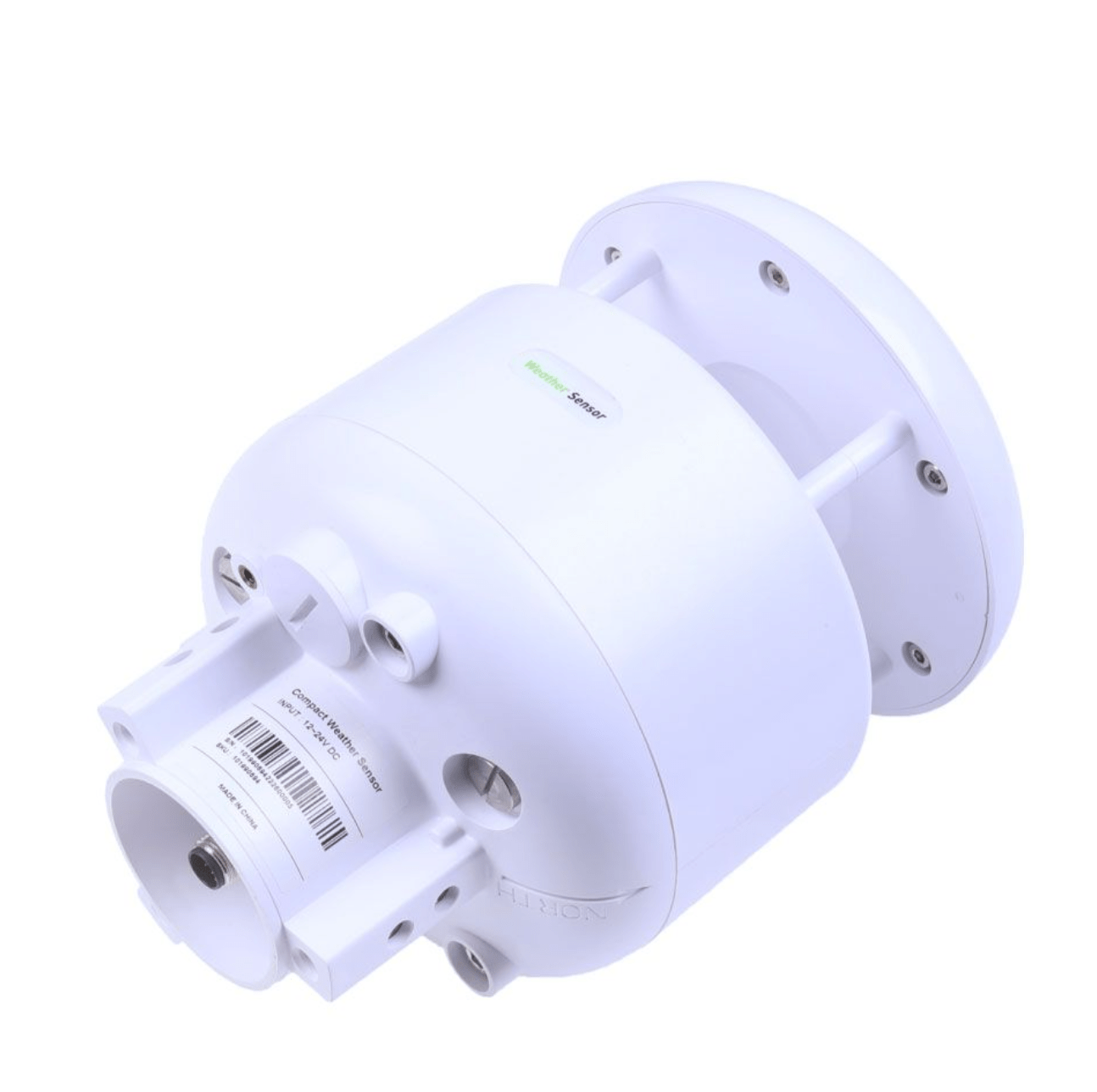

    SenseCAP S200 Wind Speed and Direction Sensor

    The SenseCAP S200 Weather Sensor is the perfect solution for measuring wind speed and direction (using ultrasonic technology) in harsh outdoor environments such as agriculture and smart cities. Designed to withstand harsh conditions, this durable sensor provides accurate data to help you make informed decisions.

    Features

    • Measures wind speed and wind direction
    • Industrial-level design-40°C to +85°C operating temperature, IP66 rated: waterproof, and dustproof, suitable for outdoor scenarios
    • Output interface: RS485 (MODBUS-RTU) / SDI-12
    • Powerful Components Included: A 3m cable for the pole mount; radiation shields are equipped to ensure accurate ambient measurement; ultrasonic wind speed & direction sensors without moving parts

    Today, data on localized weather, known as microclimates, is the new frontier for more precise and accurate weather forecasting. As a result, the collection of weather data is becoming increasingly smaller and gridded. In light of this, weather sensors, which are the most convenient means of collecting weather data, are seeing a rise in demand.


    This SenseCAP S200 Wind Speed and Direction Weather Sensor can help you collect and monitor wind speed and direction data, which are crucial in different application scenarios such as smart city projects and etc. It's IP66 certified, and it features strong robustness to withstand even the toughest outdoor environment. The Sensors to measure wind speed and wind direction use ultrasound instead of a traditional mechanical 3-cup or vane anemometer. The advantage of using ultrasonic sensors is that reducing the movable parts can make the sensor less likely to break and thereby is easier to be maintained without any sacrifices in precision or manpower.

    SenseCAP ONE is a series of all-in-one compact weather sensors, that integrate multiple sensors into this compact device, monitoring up to 10 weather parameters: air temperature, air humidity, atmospheric pressure, light intensity, wind speed, wind direction, precipitation, PM 2.5, PM 10, and CO2.


    The SenseCAP ONE series uses the RS 485 (MODBUS-RTU) / SDI-12 communication protocol. Hence, the SenseCAP ONE compact weather sensor can be used with any data logger that supports RS485 (MODBUS-RTU) / SDI-12.


    High-performance Guarantee

    We are well aware that the sensors may work under harsh outdoor conditions. To ensure that the performance and durability of the sensors are consistent with their specifications throughout the complete lifecycle, SenseCAP ONE Serials Sensor went through 6 reliability tests before releasing and met the requirements to perform perfectly in extreme conditions.


    • Wind tunnel for wind calibration
    • High-Low Temperature Test - determine performance under adverse temperature conditions.
    • Structural Test - whether the collected values of multiple devices are consistent
    • x-y-z vibration test
    • Waterproof and air tightness test
    • R&D and Production Test - to test the pass rate of multiple devices under factory conditions

    Field Deployment


    • Smart Agriculture
    • Smart City
    • Power Transmission
    • Renewable Energy
    • Transportation and Traffic

    Specifications

    General Parameters

    Parameters Measured

    wind speed, wind direction

    Protocol

    RS485 (MODBUS-RTU) / SDI-12

    Power Supply

    12V~24V

    24V(Heating power supply)

    Cable Length

    3m

    Operating Temperature & Humidity

    -40 °C ~ + 85 °C, 0 ~ 100%RH

    IP Rating

    IP66

    Device Weight

    2kg

    Wind Speed (Ultrasonic)

    Range

    0~60 m/s standard range

    0~75m/s extended range

    Up to 80m/s withstand range

    Accuracy

    ±0.3m/s(≤10m/s);

    ±3% (10m/s ~ 50m/s)

    ±5% (>50m/s)

    Resolution

    0.1 m/s

    Wind Direction (Ultrasonic)

    Range

    0 ~ 360 °

    Accuracy

    ± 3.0°

    Resolution

    0.1°
