8:1 Serial Port Expander - Atlas Scientific

  • $30.00
  • Save $10
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • 8:1 Serial Port Expander - Atlas Scientific

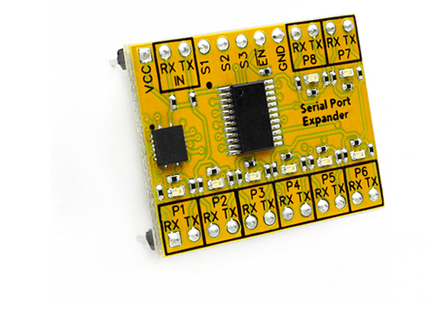

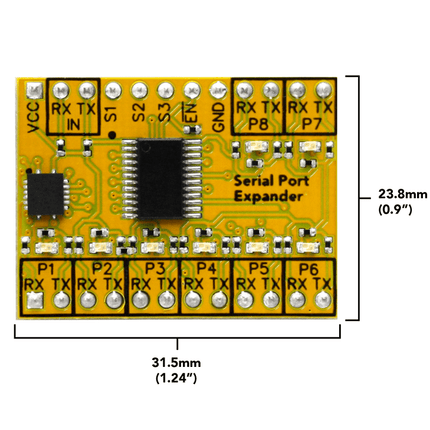

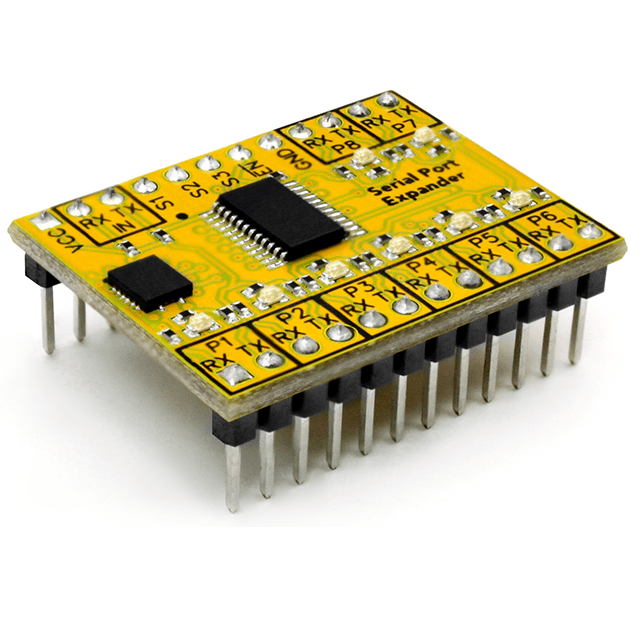

    The Atlas Scientific™ 8:1 Serial Port Expander, enables the user to easily expand one hardware serial port into 8 serial ports. The on-board LEDs provide the user with a simple way of identifying which one of the 8 serial ports is opened.

    • Expand a single UART (RX/TX) serial port into 8 additional
       serial ports
    • On-board LEDs indicate which channel has been opened
    • Supports baud rates greater than 1M Baud
    • Easily connect two Serial Port Expanders together to get 16    additional serial ports
    • Operating voltage: 3.3V to 5V
    • Power consumption: 0.15mA at 3.3 volts
