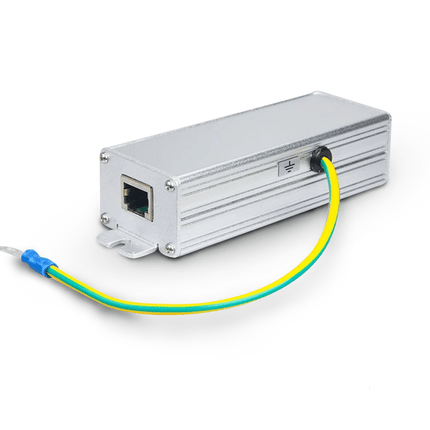

Signal Surge Protective Device
Signal Surge Protective Device
This surge protective device is suitable to Category 6 cable or Class E cable for protection of equipment from surge and over-voltage induced by lightning or produced in the inner systems. It is widely used in office and industry comprehensive network wiring projects or similar telecommunication applications, such as Gigabit Ethernet, ATM, ISDN and VoIP systems.
High-performance chips with the smallest parasitic capacitance are adopted in the product, all line protection for the 8 lines, fast response, giving it an ideal choice for protection of lightning effect.
Multiple stage protection structure provides good protection of lightning effect, the tolerable lightning impulse current is 10 kA(between 8 lines in total to the PE ), the product complies with the related international and domestic standards.
Key Features
- Protection Modes: L-L/L- PE
- Maximum Continuous Operating Voltage: 5V
- Rated Operating Current: 100mA
- Tolerable Impulse Current:
- L-L: 3kA
- L-LPE: 3kA
- Maximum Discharge Current: 10kA
- Voltage Protection Class:
- L-L: ≤40V
- L-PE: ≤600V
- Response Time: 1ns
- Maximum Data Rate: 1000mbps
- Connector: RJ45
- Ingress Protection Rating: IP20
- Operating Environment:
- Ambient Temperature: -40°C~+85°C
- Relative Humidity: 5%-95%
- Air Pressure: 70kPa~106kPa
- Storage Environment:
- Storage Temperature: -40°C~+85°C
- Relative Humidity: 5%-95%
- Storage Time Limit: One Year
