SIM7600G-H 4G-3G GPS GNSS HAT for Raspberry Pi LTE Cat4 Global

  • $125.00
  • Save $25
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

    SIM7600G-H 4G-3G GPS GNSS HAT for Raspberry Pi LTE Cat4 Global

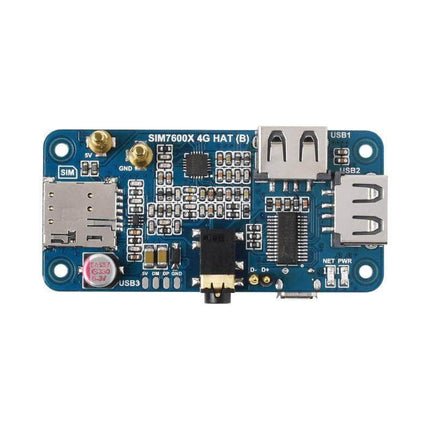

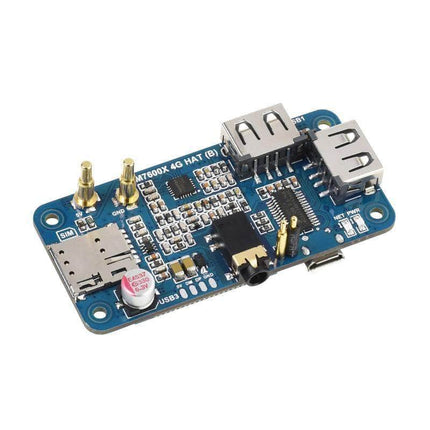

    SIM7600G-H 4G HAT (B) For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band



    Features at a glance

    • Connected via pogo pin or MicroUSB connector
      • Dedicated pogo pin for Raspberry Pi Zero/Zero W
      • MicroUSB connector for other Raspberry Pi boards or PC
    • Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support
    • USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access
    • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
    • Supports GPS, BeiDou, Glonass, LBS base station positioning
    • SIM card slot, supports 1.8V/3V SIM card
    • Onboard audio jack and audio decoder for making telephone call
    • 2x LED indicators, easy to monitor the operating status
    • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
    • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
    • Comes with development resources and manual (examples for Raspberry Pi)

    Specifications

    FREQUENCY BAND
    LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
    LTE-TDD: B34/B38/B39/B40/B41
    3G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
    2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz
    GNSS
    Satellite systems GPS/Beidou/GLONASS
    Receiver type 16-channel
    C/A Code
    Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
    Cold starts: -148 dBm
    Time-To-First-Fix (open air) Cold starts: <35s
    Hot starts: <1s
    SMS AND AUDIO
    SMS Supported types: MT, MO, CB, Text, PDU
    Audio feature Supports echo cancellation
    Supports noise reduction
    OTHER
    Power supply 5V
    Operating temperature -30°C ~ 80°C
    Storage temperature -45°C ~ 90°C
    Dimensions 65.00 × 31.00mm

    Suitable For Raspberry Pi / PC

    Dedicated Pogo Pin For Connecting With Raspberry Pi Zero/Zero W Without Extra USB Cable.
    General Purpose MicroUSB Connector For Other Raspberry Pi Boards Or PC

    Global Band 4G / 3G Support



    Up To 50Mbps Uplink And 150Mbps Downlink For 4G Network *

    * stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

    USB HUB Feature

    Onboard USB HUB Chip With USB2.0/1.1 Compliant,
    Providing 2x USB-A Connector And 1x USB Solder Pad

    GNSS Positioning

    Supports GPS, BeiDou, Glonass, LBS Base Station Positioning

    Telephoto Call & SMS Support

    Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack

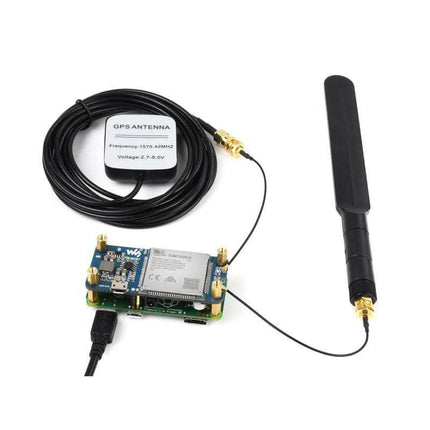

    Application Example

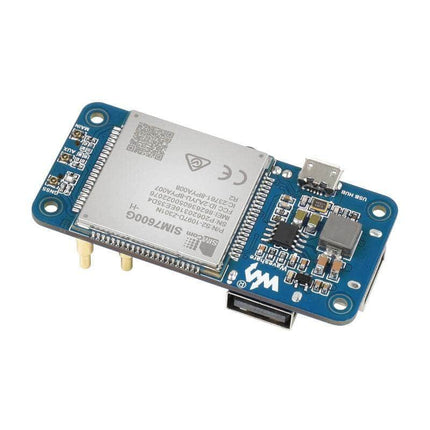

    What's On Board

    1. SIM7600G-H
    2. FE1.1S USB HUB chip
    3. NAU8810 audio decoder
    4. MP1482 power chip
    5. RT9193-33 voltage translator
    6. USB HUB input
      D+/D- pogo pin: for Raspberry Pi Zero/Zero W
      MicroUSB connector: for other Raspberry Pi boards or PC
    7. Pogo pin power supply
      5V: connects to 5V pin of Zero/Zero W, up to 2A current
      GND: connects to GND pin of Zero/Zero W

    1. USB extended ports
      USB1~USB2: USB-A connectors
      USB3: solder pad
    2. SIM card slot
      supports 1.8V/3V SIM card
    3. 3.5mm earphone/mic jack
    4. MAIN antenna connector
    5. AUX auxiliary antenna connector
    6. GNSS antenna connector
    7. Power indicator
    8. Network status indicator

    Outline Dimensions
